35605

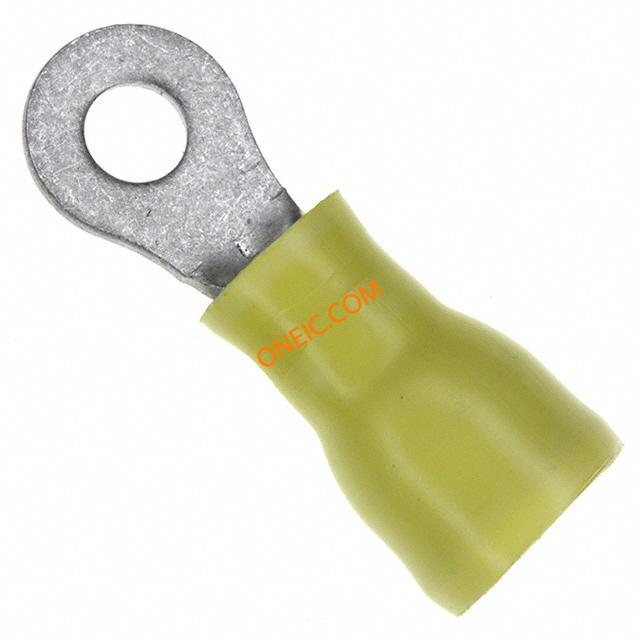

| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Ring Tongue Terminal 10-12AWG 29.77mm 9.53mm Tin Loose Piece Terminals PVC-RING 12-10 YEL #8 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #8 PIDG PIDG Ring Tongue Terminal 10-12AWG 29.77mm 9.53mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,PIDG R 12-10 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | No |
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 形状 | RING-041 |
| 表面处理 | Tin | 重量 | 2.707 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.040" (1.02mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 8 | 导线线规 | 10-12 AWG |
| 端接方式 | Crimp | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Circular | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 端子样式 | Straight |
| 连接器样式 | Straight | 触头材料 | Copper |
| 总长度 | 1.172" (29.77mm) | 包装数量 | Loose Piece |
| 筒径 | Standard | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Yellow |
| 材料厚度 | 1.02 mm [ .04 in ] | 接触件尾部长度 | 1.07 [0.042] |
| 绝缘直径 | 7.62 [.300] Max. | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.375" (9.53mm) |
| 筒体内径 | 8 mm [ .315 in ] | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | 1.02 mm [ .04 in ] | 螺纹/螺钉/孔尺寸 | 4.34 mm [ .171 in ] |
| 供应商器件封装 | PIDG | 支撑面板厚度 | Insulation Support |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | ||
产品信息
| 备注 | Oversize expansions provided in insulation only. | 类型 | PIDG Ring Tongue Terminal |
| 连接器性别 | Female | 系列 | 356 |
| 产品特性 | Serrated Termination | 可密封 | 否 |
| 检查插槽 | 否 | 制造商全称 | AMP |
环境参数
| 工作温度 | 105 | ||
