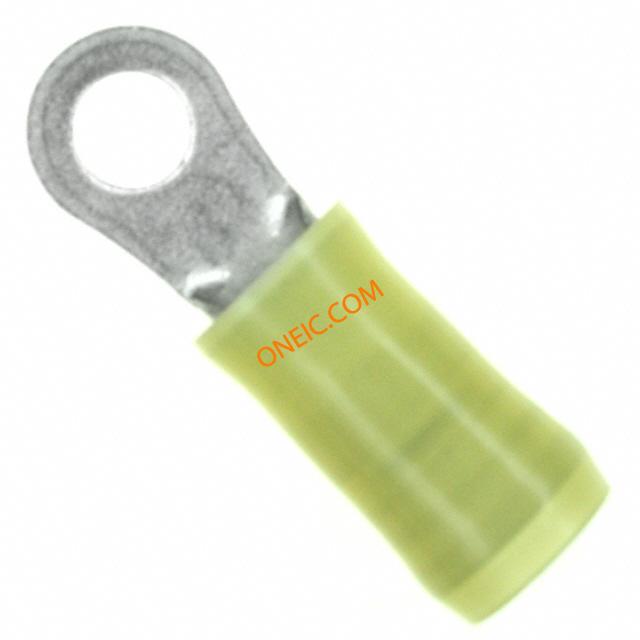

324915
| 制造商 | TE Connectivity Ltd. |
| 描述 | PIDG Ring Tongue Terminal 10-12AWG 26.72mm 7.92mm Tin Loose Piece Terminals NYL-RING 12-10 YEL #8 Ring and Spade Tongue Terminals CONN RING 10-12 AWG #8 YEL PIDG Ring terminal, PIDG, yellow,AWG 12-10,M4 PIDG Ring Tongue Terminal 10-12AWG 26.72mm 7.92mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PIDGBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B TERMINAL,RINGTONGUE,PIDG,12-10AWG,8,STRAIGHT,CLOSEDBARREL TE Connectivity PIDG 系列, 黄色 绝缘 镀锡触芯 环形压接端子 , M4 螺栓, 26.72mm总长 TERMINAL,PIDG R 12-10 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 产品类别 | Terminals |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | RoHS Compliant | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 300 | 额定电压 | 300 VAC |
| 供电电压 | 300 | ||
机械参数
| 颜色 | Yellow | 深度 | 7.92 mm |
| 形状 | RING-041 | 表面处理 | Tin |
| 重量 | 2.131 | 材料（通用） | Copper |
| 包装方式 | Bulk | 厚度 | 0.040" (1.02mm) |
| 电缆类型 | Regular Wire | 重型 | No |
| 绝缘类型 | Insulated | 螺钉尺寸 | 8 |
| 导线线规 | 10-12 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 触点形状 | Ring Tongue |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 mm |
| 端子类型 | Circular | 行程角度 | Straight |
| 电缆直径 | 6.6mm² | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 壳体镀层 | Tin |
| 端子样式 | Straight | 连接器样式 | Straight |
| 总宽度 | 0.312" | 触头材料 | Copper |
| 总长度 | 1.052" (26.72mm) | 包装数量 | Loose Piece |
| 主要材料 | Ring | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Yellow |
| 绝缘直径 | 5.84 [.230] Max. | 绝缘材料 - 类型 | Nylon |
| 位数 | 1 | 外缘宽度 | 0.312" (7.92mm) |
| 绝缘材料 - 材质 | Polyamide (PA), Nylon | 舌片内部开口 | 1.07 [0.042] |
| 螺纹/螺钉/孔尺寸 | M4 | 供应商器件封装 | PIDG |
| 支撑面板厚度 | Insulation Support | 线规或范围 - AWG | 5,180 â 13,100 |
| 线规或范围 - mm² | 3.00-6.00² [12-10] | 外径-未扩张 | 5.84 mm [ .23 in ] |
产品信息
| 类型 | PIDG Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 324 | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
