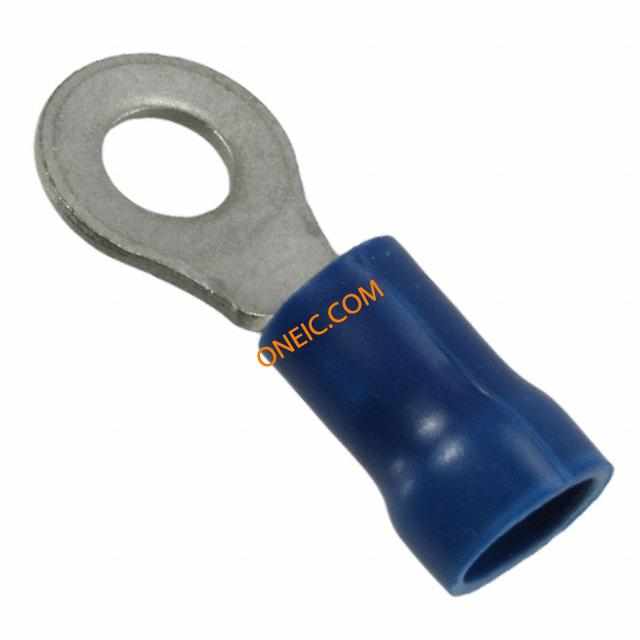

8-34160-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Ring Tongue Terminal 14-16AWG 22.12mm 8.71mm Tin Loose Piece Terminals PVC-RING 16-14 BLU #8 M4+ Ring and Spade Tongue Terminals TERMINAL PG RING 16-14AWG #8 Ring Tongue Terminal 14-16AWG 22.12mm 8.71mm Tin Loose Piece Product Highlights:Terminal Shape = Ring TongueReceptacle Style = StraightBody Style = PLASTI-GRIPBarrel Type = Closed BarrelWire/Cable Type = Regular WireSearch Keywords:Pre-Insulated Diamond Grip, CERTI-SEAL, FASTON, terminals and splices, military/aerospace, PEEK PIDG, PEEK Terminals, AMPLI-BOND, AMPLIVAR, EURO-CRIMP, Duraseal, PIDG, PLASTI-GRIP, SolderGrip, SOLISTRAND, STRATO-THERM, TERMINYL, Standard B SEE512-443034160 TERMINAL,PG R 16-14 8 |
| 分类 |
商业参数
| 产品 | Ring Terminals | 其他名称 | 8341601 |
| 产品类别 | Terminals | 标准包装数量 | Bulk |
| 工厂包装数量 | 100 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | No | ||
电气参数
| 最大电压 | 600 | 电压范围 | 600VAC |
| 额定电压 | 600 VAC | 供电电压 | 600 |
机械参数
| 颜色 | Blue | 形状 | RING-043 |
| 表面处理 | Tin | 重量 | .762 |
| 材料（通用） | Copper | 包装方式 | Bulk |
| 厚度 | 0.031" (0.79mm) | 电缆类型 | Regular Wire |
| 重型 | No | 绝缘类型 | Insulated |
| 螺钉尺寸 | 8 | 导线线规 | 14-16 AWG |
| 本体表面处理 | PLASTI-GRIP | 端接方式 | Crimp |
| 触点形状 | Ring Tongue | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 4.16 mm | 端子类型 | Circular |
| 行程角度 | Straight | 电缆材料 | Solid or Stranded |
| 接触镀层 | Tin | 端子样式 | Straight |
| 连接器样式 | Straight | 总宽度 | 0.343" |
| 触头材料 | Copper | 柄部直径 | 0.171in. |
| 总长度 | 0.871" (22.12mm) | 刀片材料 | Copper |
| 包装数量 | Loose Piece | 主要材料 | Ring |
| 筒径 | Standard | 绝缘高度 | Insulation Support |
| 端接样式 | 环形端子 | 连接器颜色 | Blue |
| 材料厚度 | 0.031in. | 接触件尾部长度 | 0.79 [0.031] |
| 绝缘直径 | 3.00-4.90 [.118-.193] | 绝缘材料 - 类型 | Vinyl |
| 位数 | 1 | 外缘宽度 | 0.343" (8.71mm) |
| 筒体内径 | 4.95 mm [ .195 in ] | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | .79 mm [ .031 in ] | 螺纹/螺钉/孔尺寸 | 4.34 mm [ .171 in ] |
| 供应商器件封装 | PLASTI-GRIP | 支撑面板厚度 | Insulation Support |
| 接触镀层厚度 | 2.54 µm [ 100 µin ] | 线规或范围 - AWG | 2,050 â 5,180 |
| 线规或范围 - mm² | 1.25-2.00² [16-14] | 非扩张内径 | .195 |
| 外径-未扩张 | 4.9 mm [ .193 in ] | ||
产品信息
| 类型 | Ring Tongue Terminal | 连接器性别 | Female |
| 系列 | 341 | 产品特性 | Serrated Termination |
| 可密封 | 否 | 检查插槽 | 否 |
| 制造商全称 | AMP | ||
环境参数
| 工作温度 | 105 | ||
