点击放大查看

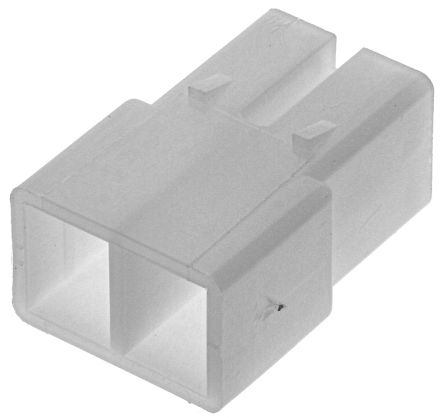

180923
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece Headers & Wire Housings .250 TAB HSG 2P Multiple Circuit Housings with Tabs & Receptacles Including FASTIN-FASTON CONN RCPT HOUSING 2CIRCUIT Housing 2 way Tab Fastin-Faston Terminals .250 TAB HSG 2P Conn Housing RCP 2 POS 6.35mm Crimp ST Loose Piece Product Highlights:Receptacle HousingNumber of Circuits = 2Tab Fit = 6.35 mmLoose PieceColor = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, terminals and splices, Lighting Interconnection Products, wire to wire, fast-on CONNECTOR HOUSING, PLUG, 2 WAY Housing2wayTabFastin-Faston Terminals cover; female; ways:2; Colour: natural Fastin-Faston 2 Circuit 6.35 mm Receptacle Housing Housing for FASTON receptacles 6.35 mm Poles 2 FASTIN-FASTON, 180923, TE Connectivity TE Connectivity 压接端子外壳 FF 250 REC HSG 2P NYLON NAT |
| 分类 |
商业参数
| 产品 | Terminal Housings | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 2000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Recognized | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | :UL94V-2 |
电气参数
| 极数 | 2 | 最小供电电压 | 250VDC/250VAC |
| 连接器类型 - 电压输入 | for push-on 6.3mm connectors with lock | ||
机械参数
| 颜色 | Natural | 深度 | 22.9 mm |
| 间距 | 6.35 mm | 宽度 | 10 mm |
| 高度 | 11.5 mm | 长度 | 22.9mm |
| 重量 | 0.002 | 材料（通用） | Nylon |
| 包装方式 | Bulk | 插片宽度 | 6.35 [.250] |
| 绝缘类型 | Not Insulated | 基体材料 | Glass Fibre Reinforced Nylon |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 螺柱/焊片尺寸 | 6.35 mm | 端子尺寸 | 0.250" (6.35mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Yes |
| 排数 | 1 | 连接器用途 | terminals cover |
| 材料表面处理 | :- | 壳体材料 | Polyamide 6.6 |
| 总长度 | FASTIN-FASTON .250 | 包装数量 | Loose Piece |
| 连接器颜色 | Natural | 触点数 | 2 |
| 堆叠方向 | Side to Side | 位数 | 2 |
产品信息
| SPG | 1 | 备注 | Contacts Not Provided |
| 类型 | Housing | 样式 | Housing |
| 连接器性别 | RCP | 系列 | :FASTIN FASTON |
| 产品子类型 | Contacts | 单元数量 | 1 |
| 电路数 | 2 | 适用产品/相关产品 | 0.250" (6.35mm) Quick Connects |
环境参数
| 工作温度 | -30C to 105C | ||
