首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）0009508063

点击放大查看

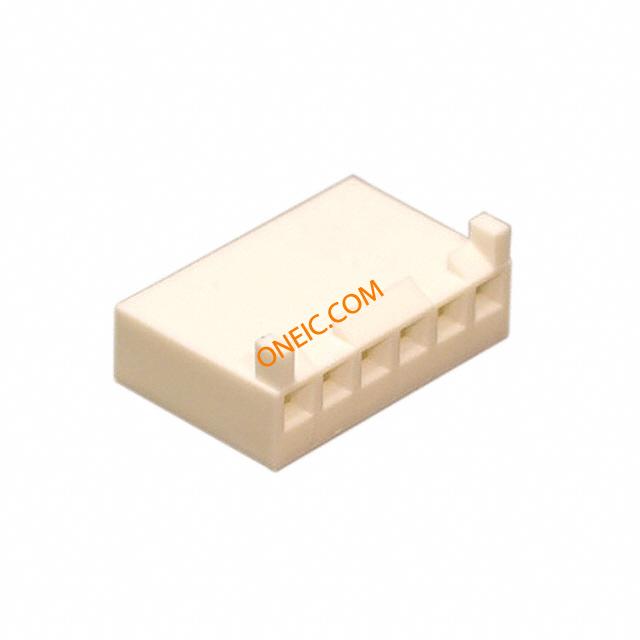

0009508063

制造商	Molex, LLC
描述	Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .156 W/POLAR
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

交货时间	36 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	7/Contact	最小输入电压	250VAC
连接器类型 - 电压输入	Crimp

机械参数

颜色	Natural	深度	15.88
间距	3.96 mm	高度	8.07
包装方式	Bag	触点形式	Non Gendered
触头类型	Non Gendered	外壳颜色	Natural
安装类型	Straight	连接器类型	Receptacle
紧固类型	Locking Ramp	排数	1
壳体材料	Polyester	总长度	24.64
触点数	6	接触件端接	Crimp
位数	6

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	KK® 41695
产品特性	Polarizing Key	主要用途	Polarizing Key
行业别名	09-50-8063, 09508063, 9508063	输出配置	Free Hanging (In-Line)

文档与媒体

PDF 文档

0009508063_CRIMP_HOUSINGS.pdf

PDF 文档

09-50-8063
