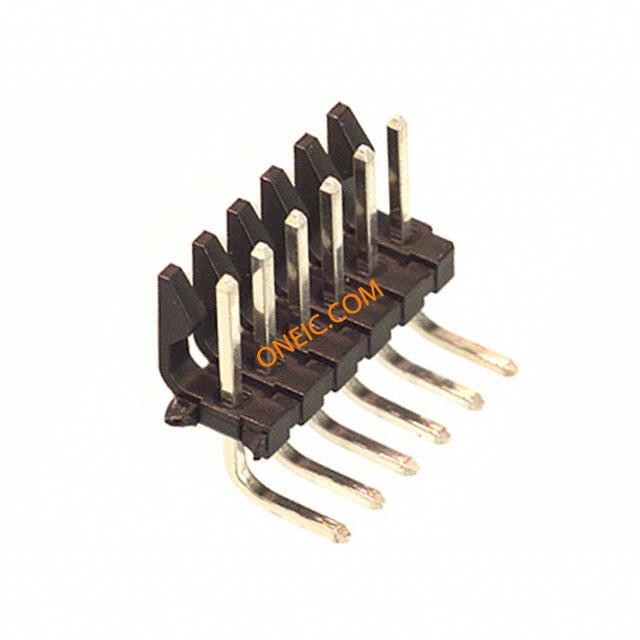

点击放大查看
0026481066
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS .156 R/A TIN Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Bag |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 7/Contact A |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Black | 深度 | 20.29 mm |
| 间距 | 0.156" (3.96mm) | 包装方式 | Bag |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin |
| 紧固类型 | Friction Lock | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 总长度 | 23.72 mm |
| 触点数 | 1 | 位数 | 6 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 60µin (1.52µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 26-48-1066, 26481066 | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
