点击放大查看

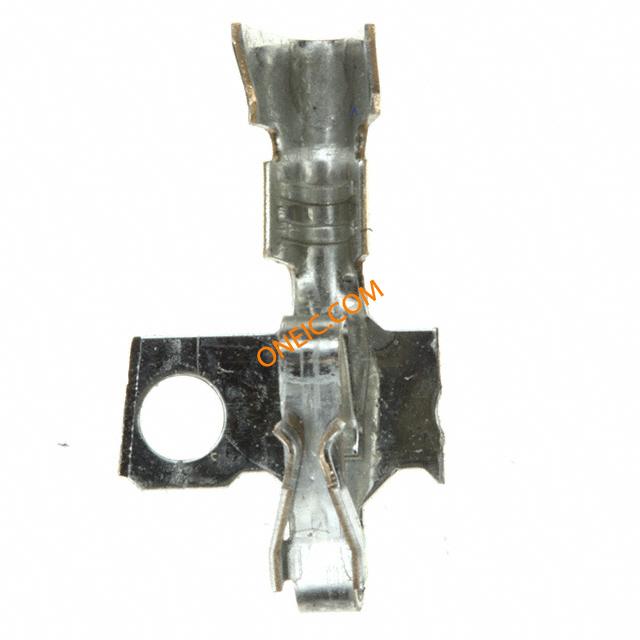

0008520112
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN |
| 分类 |
商业参数
| 交货时间 | 43 Days | 其他名称 | WM2760CT |
| 子类别 | Connector Contact | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6 mohm | 最大额定电流 | 7 A |
| 最小供电电压 | 250VAC | ||
机械参数
| 深度 | 3.3 mm | 间距 | Not Required mm |
| 高度 | 4.74 mm | 包装方式 | Reel |
| 导线线规 | 18-20 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Non-Gendered | 连接器类型 | Connector Headers and PCB Receptacles |
| 接触镀层 | Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 13.7 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 行业别名 | 08-52-0112, 08520112, 8520112 | 适用产品/相关产品 | 0008520113 |
环境参数
| 工作温度 | 0C to 75C | ||
