09-50-8093

制造商	Molex, LLC
描述	CONN HOUSING 9POS .156 W/POLAR Housing 3.96mm KK, friction ramp, 9way Headers & Wire Housings HSG 9P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 9 Circuits PLUG & SOCKET HOUSING, RECEPTACLE, 9POS, 3.96MM Molex KK 396 系列 1 行 3.96mm 节距 9 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508093 41695-N-D9 9508093
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS

Compliant

海关税号

85369010

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	8.07mm
长度	36.53mm	重量	0.002
包装方式	Bulk	触头类型	Non Gendered
基体材料	:PBT Polyester	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	紧固类型	Locking Ramp
安装样式	Wire	排数	1
壳体材料	PET	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	9
接触件端接	Crimp	位数	9

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	41695	产品特性	Polarizing Key
CAD图纸	3D CAD Model	产品子类型	Receptacles / Sockets - Housings
适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-8093

PDF 文档

1781426.pdf

PDF 文档

0009508093_CRIMP_HOUSINGS.pdf

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4396

详情

0008500187

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2234

详情

0008520112

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2149

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.4034

详情

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

¥0.2645

详情

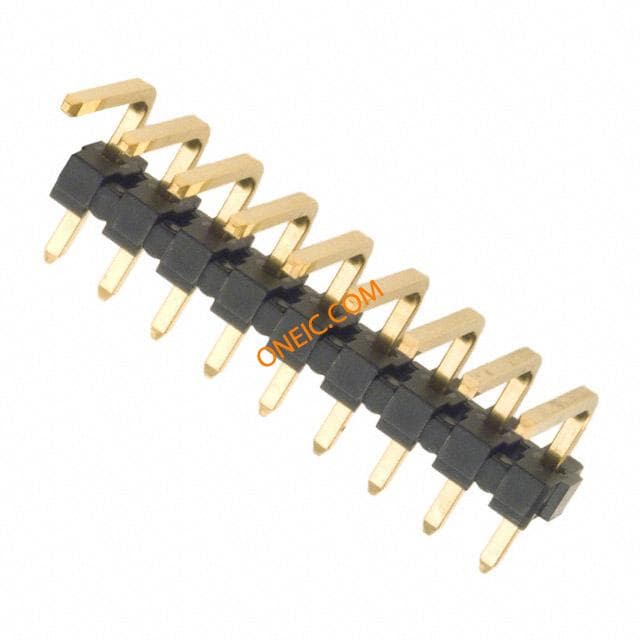

0026482092

molex

Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 9POS .156 R/A GOLD

¥11.0697

详情

暂无图片

26-23-2091

Molex

Headers & Wire Housings 3.96mm KK Hdr Vt RPi t RPin VrA .5Au 9Ckt CONN HEADER 9POS .156 VERT GOLD

详情

0008650122

Molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-26AWG GOLD

¥2.2919

详情

26-61-4090

Molex Connector Corporation

CONN HEADER 9POS .156 VERT GOLD Headers & Wire Housings VERT PCB HDR 9P GOLD FRICTION LOCK Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Bag CONNECTOR, HEADER, 9POS, 1ROW, 3.96MM

¥6.2560

详情

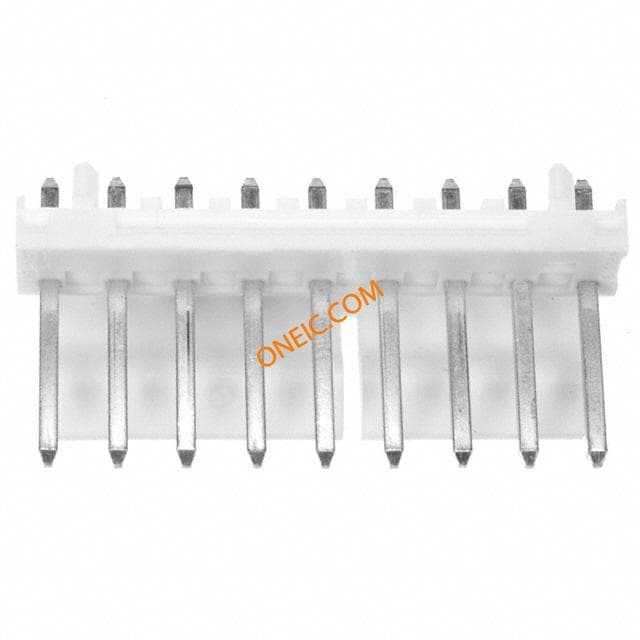

26-64-4090

Molex Connector Corporation

CONN HEADER 9POS .156 VERT TIN Headers & Wire Housings .156 KK HEADER

¥1.8428

详情

26-60-4090

Molex Connector Corporation

CONN HEADER 9POS .156 VERT TIN Molex 41791 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 9P TIN FRICTION LOCK Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Bag WIRE-BOARD CONNECTOR HEADER 9POS, 3.96MM Molex KK 396 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔

¥1.6728

详情

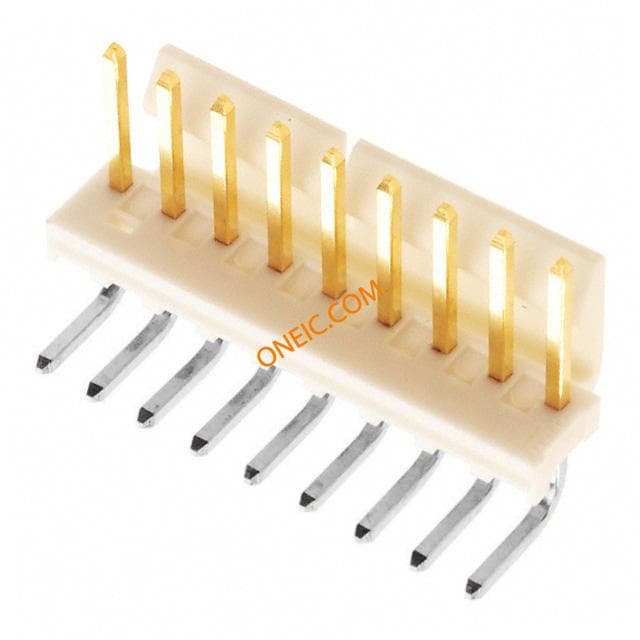

26-61-5090

Molex Connector Corporation

CONN HEADER 9POS .156 R/A GOLD Headers & Wire Housings 9P HEADER TIN Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Bag

¥15.9120

详情

0026481091

Molex Inc

CONN HEADER 9POS .156 VERT TIN

¥3.7631

详情

0026481096

Molex Inc

CONN HEADER 9POS .156 R/A TIN

¥4.1052

详情

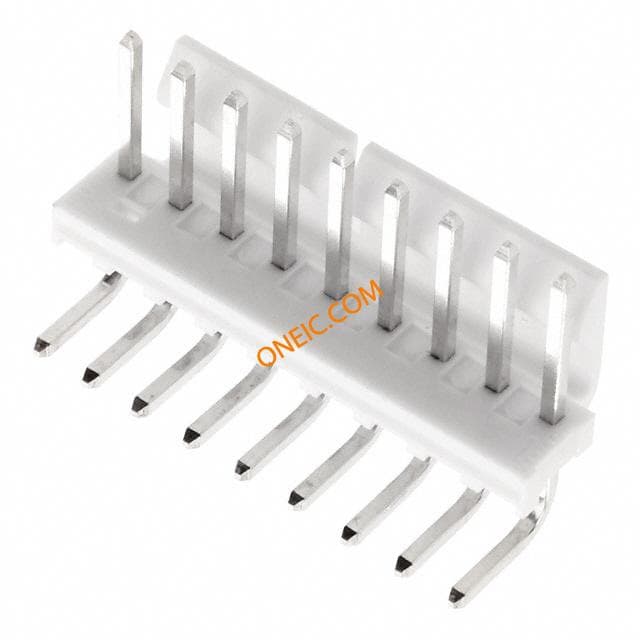

26-60-5090
