26-60-4090
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 9POS .156 VERT TIN Molex 41791 Series 3.96mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 9P TIN FRICTION LOCK Conn Wire to Board HDR 9 POS 3.96mm Solder ST Thru-Hole Bag WIRE-BOARD CONNECTOR HEADER 9POS, 3.96MM Molex KK 396 系列 3.96mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026604090 41791-0009 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 225 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 250 V ac | 接触电阻 | 6 mohm |
| 最大额定电流 | 7A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 10.01 mm |
| 间距 | 0.156" (3.96mm) | 高度 | 14.73 mm |
| 重量 | 0.0031 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 基体材料 | :Polyester | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 35.51 mm | 端接样式 | Through Hole |
| 触点数 | 9 | 接触件端接 | :Through Hole Vertical |
| 位数 | 9 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 41791 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0009482098
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN PCB
0009523098
Molex, LLC
. 0009523098 - 9 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin from Molex. from now!
0009521093
Molex, LLC
. 0009521093 - 9 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482092
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 9POS TIN PCB
0009482093
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN PCB
0009521096
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 9POS TIN PCB
0009485095
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS GOLD PCB
0009485098
molex
Conn Wire to Board HDR 9 POS 2mm Solder ST Thru-Hole Tray CONN RCPT TOP 9POS TIN
0009624097
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 9POS GOLD
09-62-3093
molex
Conn Socket Strip RCP 9 POS 3.96mm Solder ST Thru-Hole Bag CONN RECEPT 9POS .156 VERT PCB
0009481094
Molex

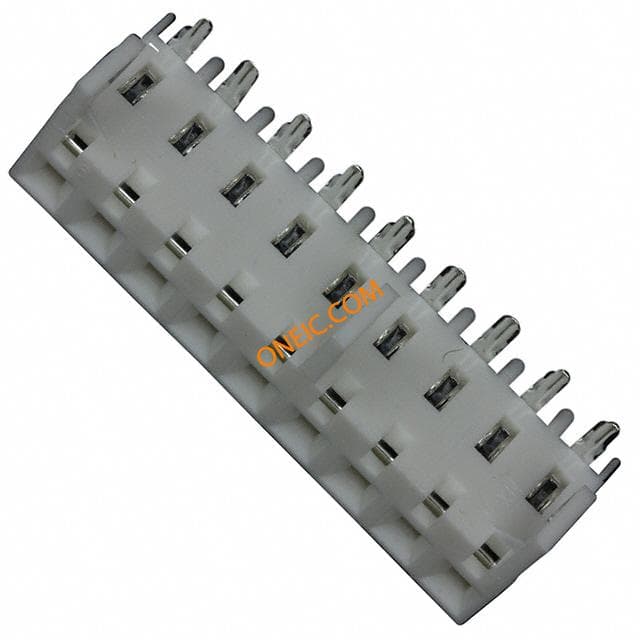

Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 9POS .156 R/A PCB
0009481095
Molex, LLC
. 0009481095 - 9 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. from now!
09-48-3096
Molex Connector Corporation

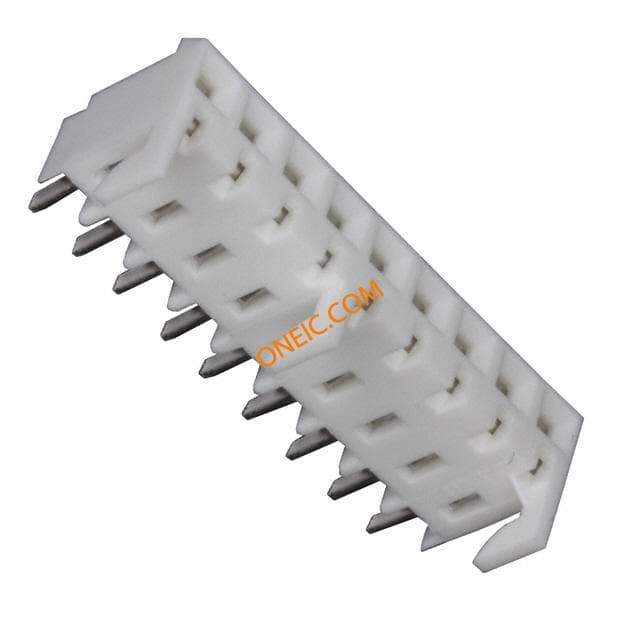

CONN RECEPT 9POS .156 VERT PCB Headers & Wire Housings 9 POS RECEPT .156 TOP PCB GOLD 3.96mm Pitch KK® PC Board Connector, Top Entry, Polyester Connector, Gold (Au) Selective, 9 Circuits
09-50-3091
Molex Connector Corporation
CONN HOUSING 9POS .156 W/RAMP 3.96mm,KK,housing,w/ramp,nylon,9way Headers & Wire Housings HSP 9P W/LKG RAMP UL94V-2 Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Bag .156 TERMINAL HOUSING; W/LCK RAMP; 9 CIRCUITS Molex KK 396 系列 3.96mm 节距 9 路 直 母 电缆安装 压接连接器外壳
09-50-8093
Molex Connector Corporation
CONN HOUSING 9POS .156 W/POLAR Housing 3.96mm KK, friction ramp, 9way Headers & Wire Housings HSG 9P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 9 Circuits PLUG & SOCKET HOUSING, RECEPTACLE, 9POS, 3.96MM Molex KK 396 系列 1 行 3.96mm 节距 9 路 直 母 电缆安装 压接连接器外壳
09-50-7091
Molex Connector Corporation

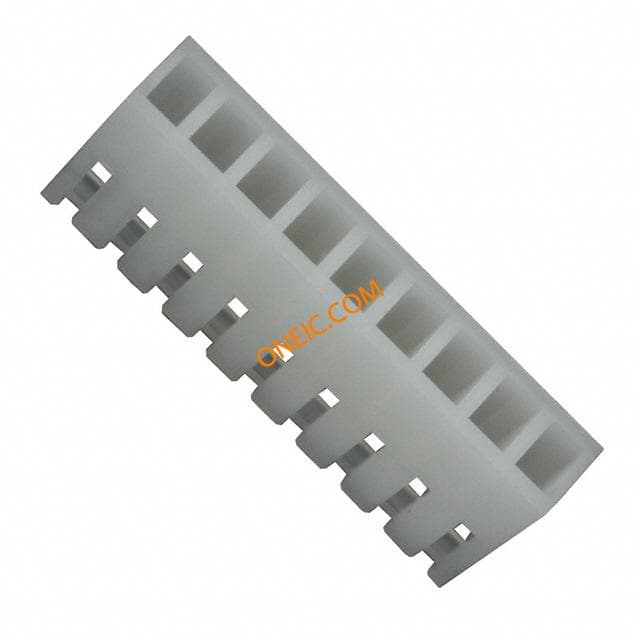

CONN HOUSING 9POS .156 W/O RAMP Headers & Wire Housings 9P TERM HOUSING 3.96mm Pitch KK® Crimp Terminal Housing, 9 Circuits Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Bag .156 TERMINAL HOUSING; W/O LCK RAMP; 9 CIRCUITS
