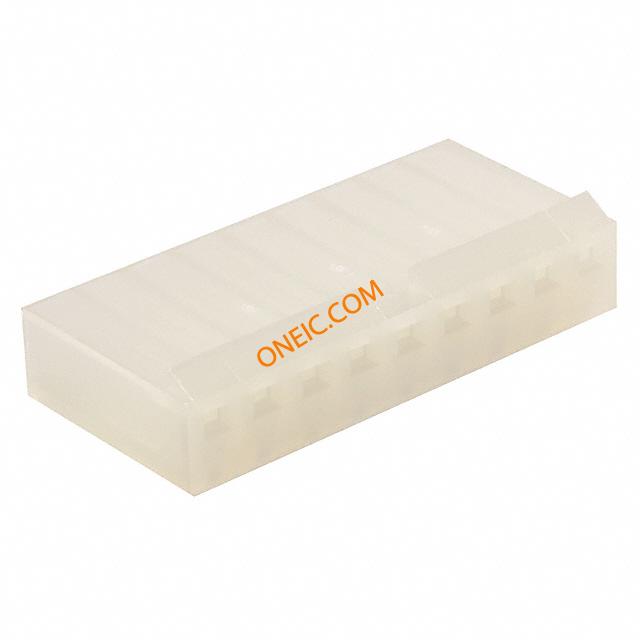

26-03-4090

制造商	Molex, LLC
描述	CONN RECEPT 9POS .156 W/RAMP Crimp Housing 3.96mm KK,for TrifurCon,9w Headers & Wire Housings 9P HSG W/LKG RAMP use w/Trifurcon term 3.96mm Pitch KK® Crimp Terminal Housing Use With Trifurcon® Terminals, Friction Ramp, 9 Circuits Molex KK 396 系列 3.96mm 节距 9 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0026034090 6442-R09-Z
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	500

合规参数

RoHS

Compliant

机械参数

颜色	Natural	深度	17mm
间距	0.156" (3.96mm)	宽度	6.6mm
长度	36.47mm	包装方式	Bulk
方向	直	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	9	接触件端接	Crimp
位数	9

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	6442	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	基础产品编号	6442
适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

26-03-4090

相关型号

0008500187

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2234

详情

0008520112

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2149

详情

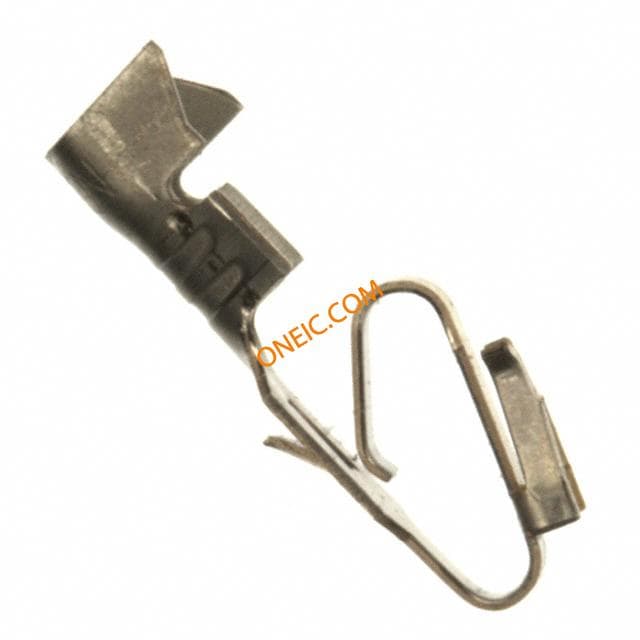

0008580110

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG GOLD

¥1.3176

详情

0008520113

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-20AWG TIN

¥0.4678

详情

0026482092

molex

Conn Unshrouded Header HDR 9 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 9POS .156 R/A GOLD

¥11.0697

详情

暂无图片

26-23-2091

Molex

Headers & Wire Housings 3.96mm KK Hdr Vt RPi t RPin VrA .5Au 9Ckt CONN HEADER 9POS .156 VERT GOLD

详情

0008650122

Molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM FEMALE 22-26AWG GOLD

¥2.2919

详情

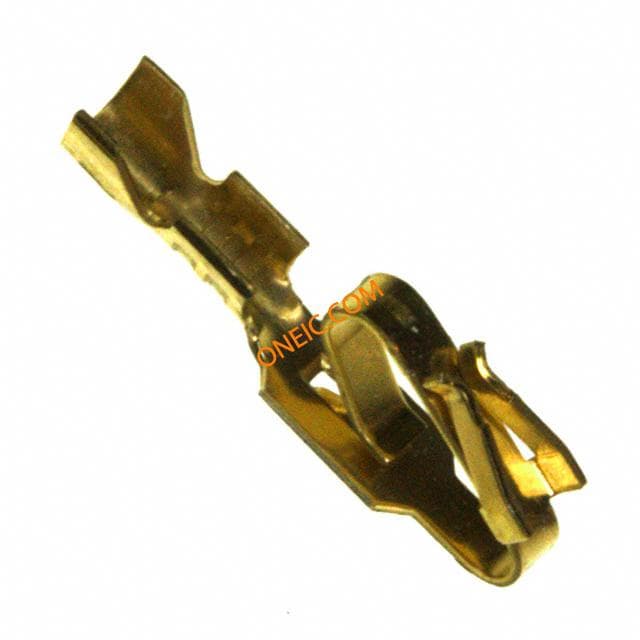

08-56-0124
