点击放大查看

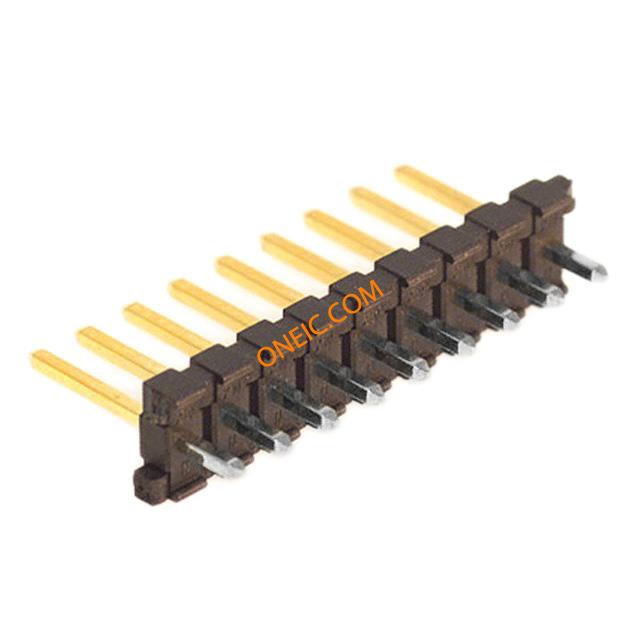

0026482091
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 9POS .156 VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | 10 | ||
机械参数
| 颜色 | Black | 间距 | 0.156" (3.96mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Gold |
| 排数 | 1 | 位数 | 9 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 加载位置数 | All | ||
