点击放大查看

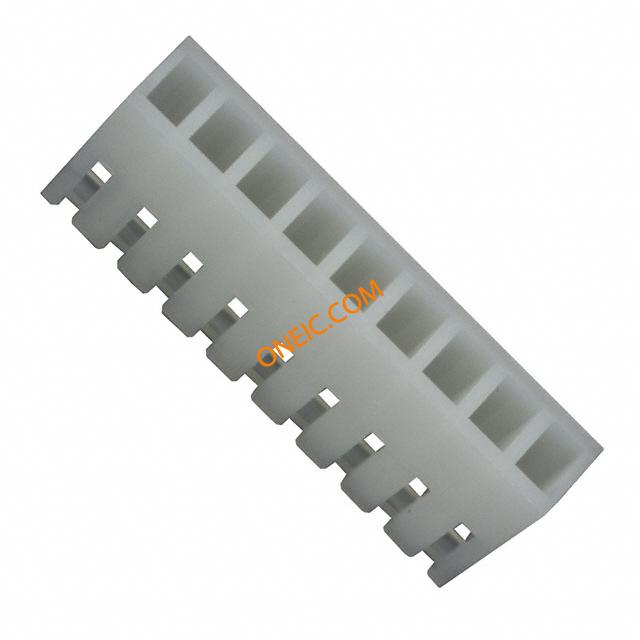

09-50-7091

制造商	Molex, LLC
描述	CONN HOUSING 9POS .156 W/O RAMP Headers & Wire Housings 9P TERM HOUSING 3.96mm Pitch KK® Crimp Terminal Housing, 9 Circuits Conn Housing RCP 9 POS 3.96mm Crimp ST Cable Mount Bag .156 TERMINAL HOUSING; W/O LCK RAMP; 9 CIRCUITS
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507091 2139-9C 9507091
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	1000

合规参数

RoHS

RoHS Compliant

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
安装样式	Wire	排数	1
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	9
接触件端接	Crimp	位数	9

产品信息

备注	Contacts Not Provided	系列	2139
产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

09-50-7091

PDF 文档

0009507091_CRIMP_HOUSINGS.pdf
