点击放大查看

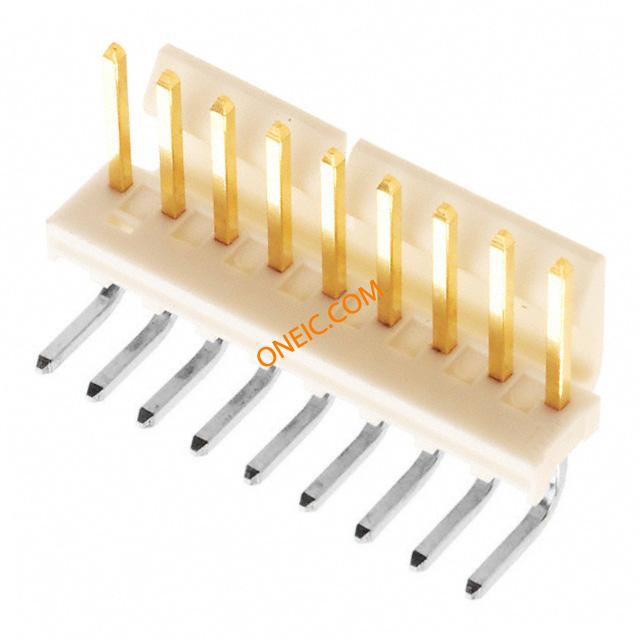

26-61-5090

制造商	Molex, LLC
描述	CONN HEADER 9POS .156 R/A GOLD Headers & Wire Housings 9P HEADER TIN Conn Wire to Board HDR 9 POS 3.96mm Solder RA Thru-Hole Bag
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0026615090 41792-0026
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	150

合规参数

RoHS

RoHS Compliant

电气参数

额定电压

250 V

最大额定电流

7 A

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Bulk	端接方式	Solder
触头类型	Male Pin	安装类型	Through Hole, Right Angle
连接器类型	Header, Unshrouded	接触镀层	Gold
紧固类型	Friction Lock	排数	1
触头材料	Brass	壳体材料	Polyester
端接样式	Through Hole	触点数	9
位数	9	接触长度 - 配合	0.450" (11.43mm)
接触镀层厚度	20µin (0.51µm)

产品信息

类型	Pin Strip	系列	41792
产品子类型	Headers	加载位置数	All
