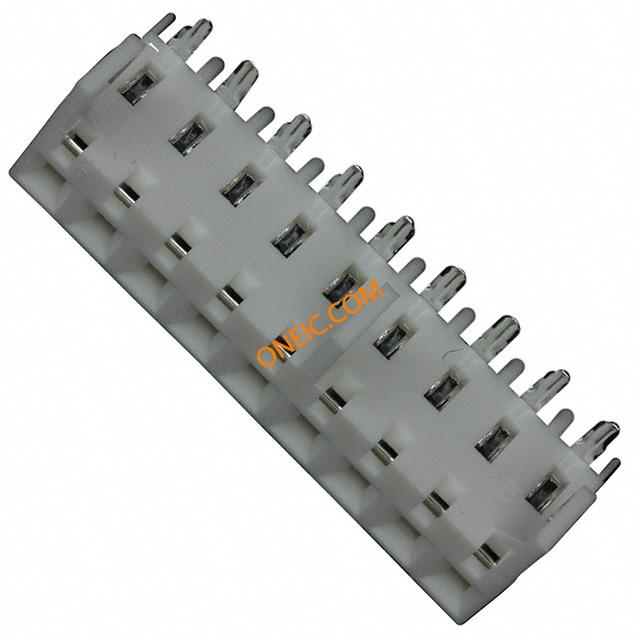

点击放大查看

0009481094

制造商	Molex, LLC
描述	Conn Socket Strip RCP 9 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 9POS .156 R/A PCB
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流

5/Contact

最小输入电压

250V

机械参数

颜色	White	深度	11.4
间距	0.156" (3.96mm)	高度	7.82
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Tin Over Copper	紧固类型	Locking Ramp
排数	1	触头材料	Phosphor Bronze
壳体材料	Polyester	总长度	35.56
触点数	9	位数	9
接触镀层厚度	200µin (5.08µm)

产品信息

类型	Socket Strip	连接器性别	RCP
加载位置数	All

文档与媒体

PDF 文档

09-48-1094
