点击放大查看

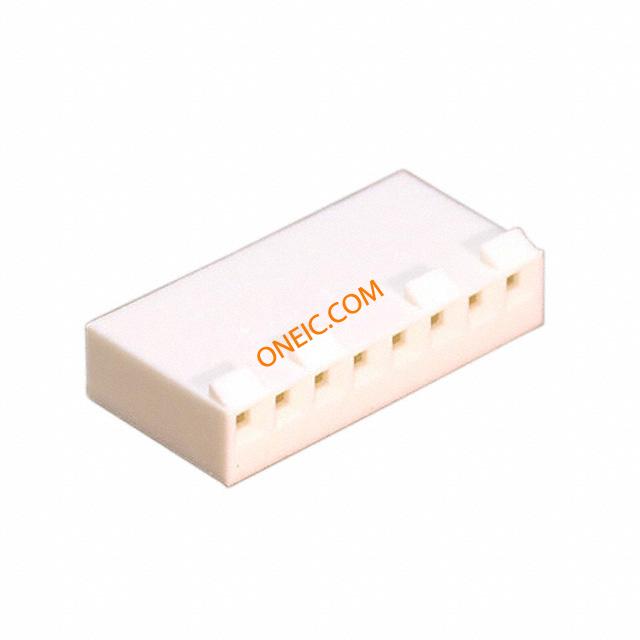

09-50-8081

制造商	Molex, LLC
描述	CONN HOUSING 8POS .156 W/RAMP Headers & Wire Housings HSG 8P W/LKG RAMP UL94V-0 Conn Housing F 8 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, CRIMP, 3.96MM, 8WAY Molex KK 396 系列 3.96mm 节距 8 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508081 41695-N-B8 9508081
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	1000

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

量程（°/s）

:MOLEX - KK 41695 Series

机械参数

颜色	Natural	间距	0.156" (3.96mm)
重量	0.002	包装方式	Bulk
触头类型	Non Gendered	安装类型	Free Hanging (In-Line)
连接器类型	Receptacle	接触镀层	:-
紧固类型	Locking Ramp	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Polyester	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	8
接触件端接	Crimp	位数	8

产品信息

备注	Contacts Not Provided	连接器性别	:Socket
系列	41695	产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

41695 Series

PDF 文档

009508061_sd.pdf

PDF 文档

0009508081_CRIMP_HOUSINGS.pdf
