点击放大查看

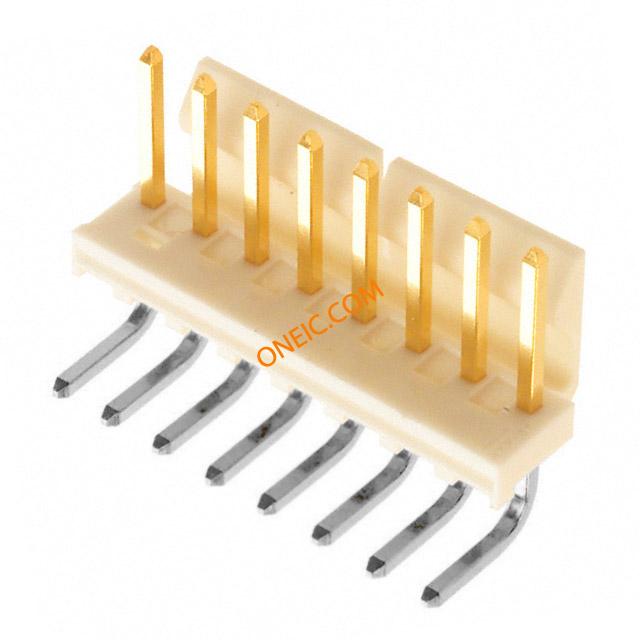

26-61-5080

制造商	Molex, LLC
描述	CONN HEADER 8POS .156 R/A GOLD Headers & Wire Housings 8P HEADER TIN Conn Wire to Board HDR 8 POS 3.96mm Solder RA Thru-Hole Bag CONNECTOR, HEADER, 8POS, 1ROW, 3.96MM
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0026615080 26-61-5080-PB 41792-0025
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	200

合规参数

RoHS

RoHS Compliant

海关税号

85366930

电气参数

量程（°/s）	:MOLEX - KK 41792 Series	额定电压	250 V
最大额定电流	7 A

机械参数

颜色	Natural	间距	0.156" (3.96mm)
重量	0.02	包装方式	Bulk
端接方式	Solder	触头类型	Male Pin
安装类型	Through Hole, Right Angle	连接器类型	Header, Unshrouded
接触镀层	Gold	紧固类型	Friction Lock
排数	1	触头材料	Brass
壳体材料	Polyester	端接样式	Through Hole
触点数	8	接触件端接	:Through Hole Right Angle
位数	8	接触长度 - 配合	0.450" (11.43mm)
接触镀层厚度	20µin (0.51µm)

产品信息

类型	Pin Strip	连接器性别	:Header
系列	41792	产品子类型	Headers
加载位置数	All

文档与媒体

PDF 文档

85613.pdf
