首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）26-03-4030

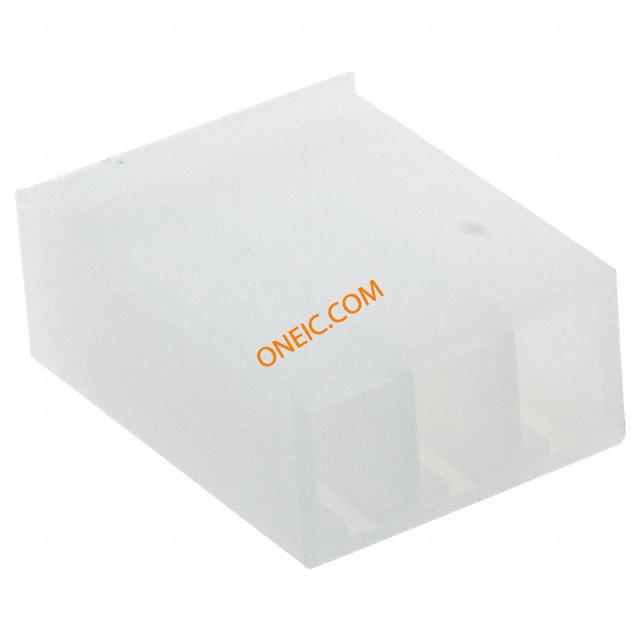

点击放大查看

26-03-4030

制造商	Molex, LLC
描述	CONN HOUSING 3POS .156 W/RAMP Crimp Housing 3.96mm KK,for TrifurCon3w Headers & Wire Housings TRIFURCON HOUSING Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag HOUSING, 3.96MM, 3WAY .156 KK Terminal Housing; Nylon; 3 Circuit Molex KK 396 系列 1 行 3.96mm 节距 3 路直母压接连接器外壳
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0026034030 6442-R03-Z
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	2500

合规参数

RoHS	Compliant	SVHC	:No SVHC (20-Jun-2013)
海关税号	85369010

电气参数

量程（°/s）

:MOLEX - KK 6442 Series

机械参数

颜色	Natural	深度	17mm
间距	0.156" (3.96mm)	宽度	6.6mm
长度	12.7mm	重量	0.005
包装方式	Bulk	端接方式	:Crimp
触头类型	Non Gendered	引脚间距	:3.96mm
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	紧固类型	Locking Ramp
安装样式	Wire	排数	1
触头材料	:-	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	3	接触件端接	Crimp
位数	3

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	6442	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

26-03-yyyy

PDF 文档

0026034030_CRIMP_HOUSINGS.pdf

PDF 文档

1629277.pdf
