点击放大查看
0026624030
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Bag Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag KK .156 HEADER VERT 3CKT TIN |
| 分类 |
商业参数
| 交货时间 | 21 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 6 mohm | 最大额定电流 | 7/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Natural | 深度 | 10.01 mm |
| 间距 | 3.96 mm | 高度 | 14.73 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 总长度 | 11.73 mm | 触点数 | 2 |
| 位数 | 3 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Position 2 Not Loaded | 行业别名 | 26-62-4030, 26624030 |
| 加载位置数 | 2 | ||
环境参数
| 工作温度 | 0C to 75C | ||
文档与媒体
相关型号
0009523038
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009482031
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009624037
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS GOLD
0009521033
Molex, LLC
. 0009521033 - 3 Position Receptacle Connector 0.156" (3.96mm) Through Hole Tin from Molex. from now!
0009482030
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS TIN PCB
0009485035
Molex, LLC
. 0009485035 - 3 Position Receptacle Connector 0.156" (3.96mm) Through Hole Gold from Molex. from now!
09-52-3033
molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .156 VERT PCB Headers & Wire Housings PCB RECPT 3P TOP ENTRY
0009482033
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 3POS TIN PCB

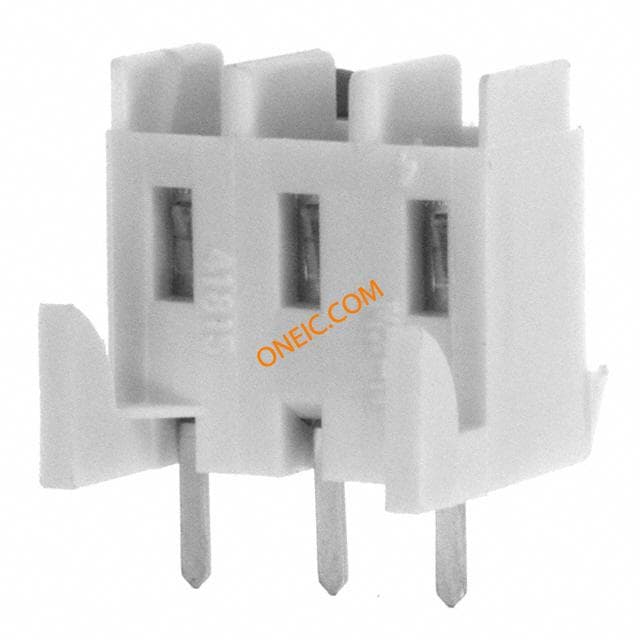

0009483034
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .156 VERT PCB
0009930300
Molex
Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 3POS
0009481035
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 3POS GOLD PCB
0009482039
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 3POS TIN PCB
0009485034
Molex
Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 3POS GOLD PCB

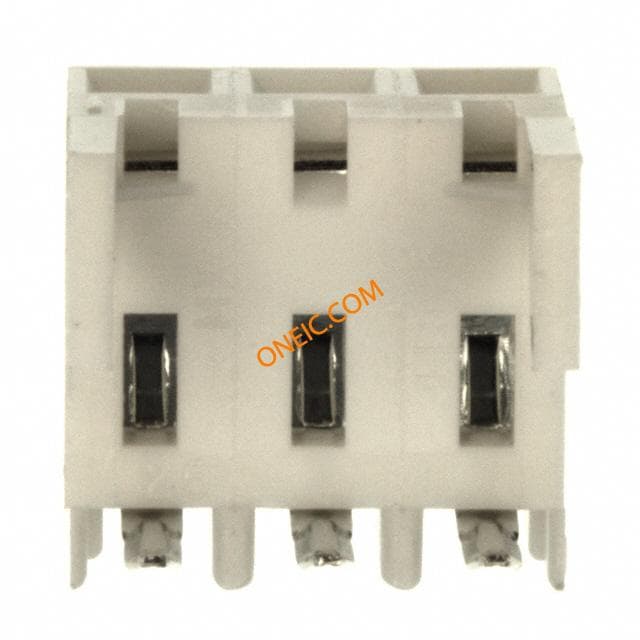

09-48-1034
Molex Connector Corporation
CONN RECEPT 3POS .156 R/A PCB Headers & Wire Housings HEADER R/A 3P Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray
09-52-3031
Molex Connector Corporation
CONN RECEPT 3POS .156 R/A PCB Headers & Wire Housings PCB RECPT 3P SIDE ENTRY Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray
09-62-3031
Molex Connector Corporation
CONN RECEPT 3POS .156 R/A PCB Conn Socket Strip RCP 3 POS 3.96mm Solder RA Thru-Hole Tray
09-62-3033
Molex Connector Corporation
CONN RECEPT 3POS .156 VERT PCB Headers & Wire Housings 3.96MM PCB CONN Top Entry 3 CKT Conn Socket Strip SKT 3 POS 3.96mm Solder ST Thru-Hole Tray

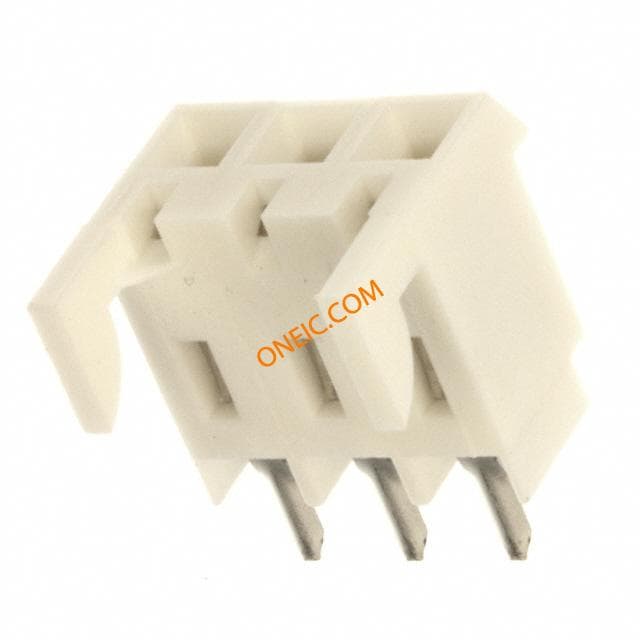

09-48-3036
