首页产品分类连接器解决方案压接与焊接端子/接头压接端子（通用）09-50-7031

点击放大查看

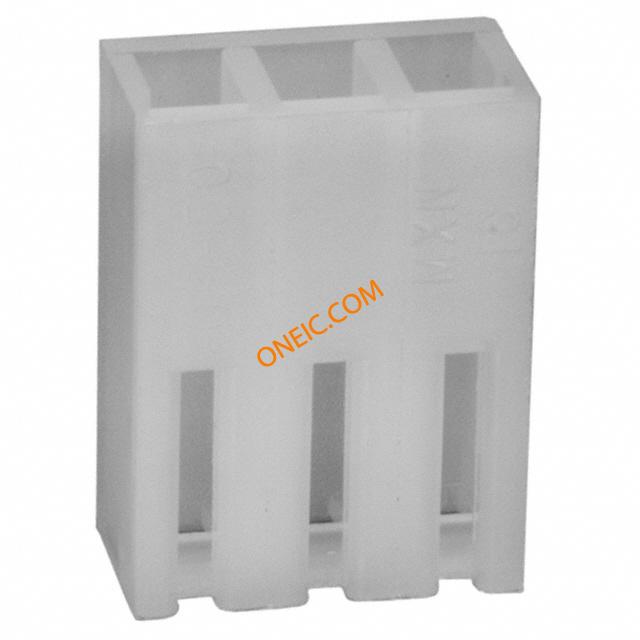

09-50-7031

制造商	Molex, LLC
描述	CONN HOUSING 3POS .156 W/O RAMP 3.96mm,KK,housing,o/ramp,nylon,3way Headers & Wire Housings HSG 3P W/O LKG RAMP Conn Housing F 3 POS 3.96mm Crimp ST Cable Mount Bag HOUSING FEMALE, 3WAY .156 TERMINAL HOUSING; W/O LCK RAMP; 3 CIRCUITS Molex KK 396 系列 3.96mm 节距 3 路直母电缆安装压接连接器外壳
分类	连接器解决方案压接与焊接端子/接头压接端子（通用）

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009507031 2139-3C 9507031
产品类别	Headers & Wire Housings	标准包装数量	1
工厂包装数量	2500

合规参数

RoHS

Compliant

海关税号

85369010

电气参数

量程（°/s）

:MOLEX - KK 2139 Series

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	6.4mm
长度	11.79mm	重量	0.001
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	:-	安装样式	Wire
排数	1	触头材料	:-
壳体材料	Nylon	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	3
接触件端接	Crimp	位数	3

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2139	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-7031

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4396

详情

0026604030

molex

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 3POS .156 VERT TIN

¥1.0594

详情

0026614030

molex

Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 3POS .156 VERT GOLD

¥2.8662

详情

0026624030

molex

Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole Bag Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag KK .156 HEADER VERT 3CKT TIN

¥1.0649

详情

0026615030

molex

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 3POS .156 R/A GOLD

¥6.0697

详情

0026605030

molex

Conn Wire to Board HDR 3 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 3POS .156 R/A TIN

¥1.4090

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.4034

详情

0008520811

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM CRIMP 18-24 AWG TIN

¥0.2645

详情

0008520072

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Loose Piece

¥0.4522

详情

暂无图片

0008600004

molex

Contact SKT Crimp ST Cable Mount T/R CONN TERM CRIMP 22-26-AWG TIN

¥0.2373

详情

08-50-0133

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 22-26AWG TIN TERM FEMALE CRIMP 22-26AWG TIN Crimp,3.96mm,22-26 AWG,phos bronze,reel Headers & Wire Housings KK TERM 22-26G Reel of 7000 Crimp Contact Molex KK 396 系列母压接接线端子, 压接, 镀锡触点

¥0.0959

详情

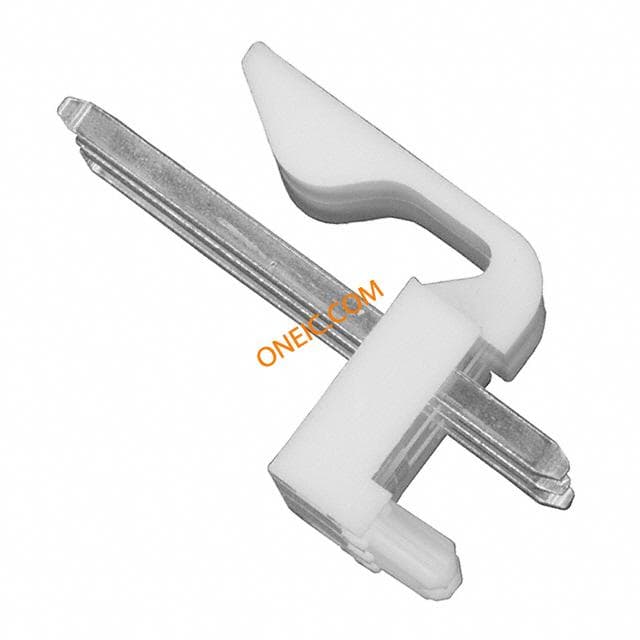

26-64-4030
