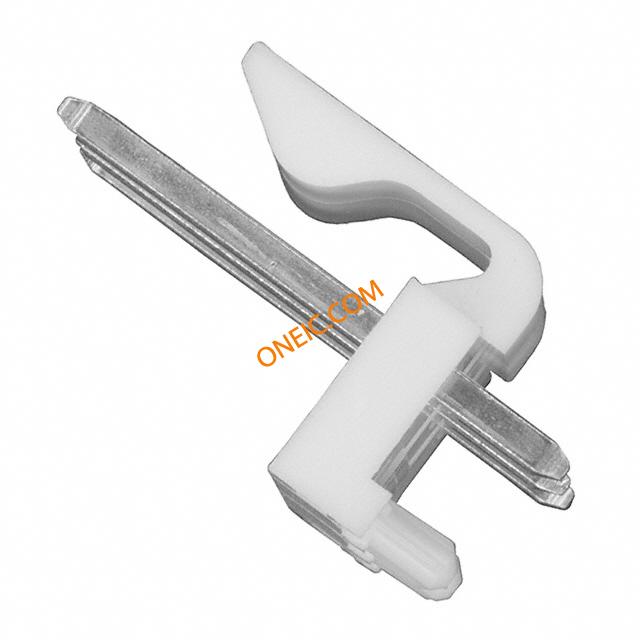

26-64-4030
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 3POS .156 VERT TIN Headers & Wire Housings VERT FRICTION LK 3P press-fit pegs 3.96mm Pitch KK® Solid Header, Vertical, Friction Lock, with Press-fit Plastic Peg PCB Lock, 3 Circuits, Tin (Sn) Plating Conn Wire to Board HDR 3 POS 3.96mm Solder ST Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026644030 42491-0003 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 1 |
| 工厂包装数量 | 900 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 3 |
| 位数 | 3 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Pin Strip | 系列 | 42491 |
| 产品特性 | Board Guide | 产品子类型 | Headers |
| 加载位置数 | All | ||
