点击放大查看

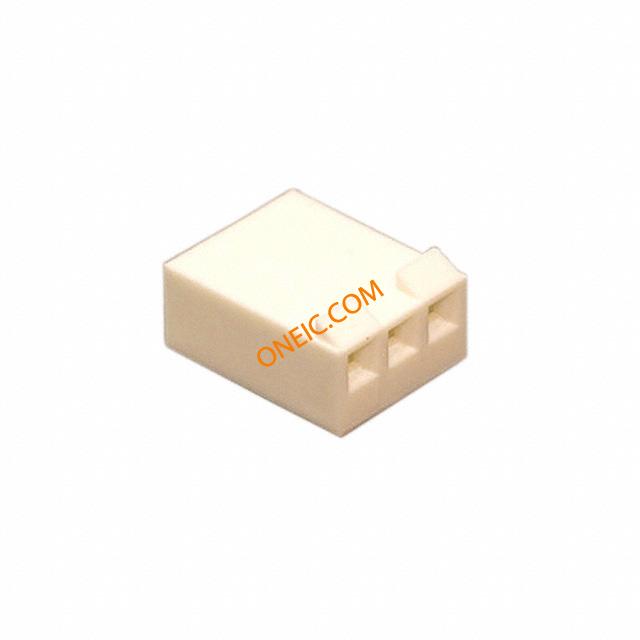

0009508031

制造商	Molex, LLC
描述	Conn Housing RCP 3 POS 3.96mm Crimp ST Bag CONN HOUSING 3POS .156 W/RAMP
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	36 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	7/Contact A	最小输入电压	250VAC
最小供电电压	250VAC

机械参数

颜色	Natural	深度	15.88 mm
间距	3.96 mm	高度	8.07 mm
包装方式	Bag	触头类型	Non Gendered
外壳颜色	Natural	安装类型	Straight
连接器类型	Receptacle	紧固类型	Locking Ramp
排数	1	壳体材料	Polyester
总长度	12.75 mm	触点数	3
接触件端接	Crimp	位数	3

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	行业别名	09-50-8031, 09508031, 9508031

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

0009508031_CRIMP_HOUSINGS.pdf

PDF 文档

09-50-8031
