点击放大查看

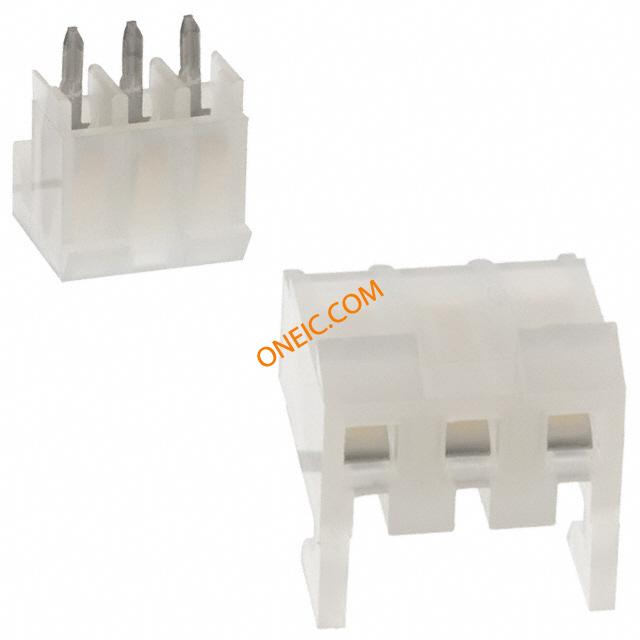

09-52-3033
| 制造商 | Molex, LLC |
| 描述 | Conn Socket Strip RCP 3 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .156 VERT PCB Headers & Wire Housings PCB RECPT 3P TOP ENTRY |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 9523033 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 2079 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | White | 间距 | 3.96 mm |
| 包装方式 | Tray | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 连接器类型 | Receptacle | 接触镀层 | Tin |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 3 |
| 位数 | 3 | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Socket Strip | 连接器性别 | RCP |
| 系列 | 2145 | 产品子类型 | Receptacles / Sockets - PCB |
| 加载位置数 | All | ||
