点击放大查看

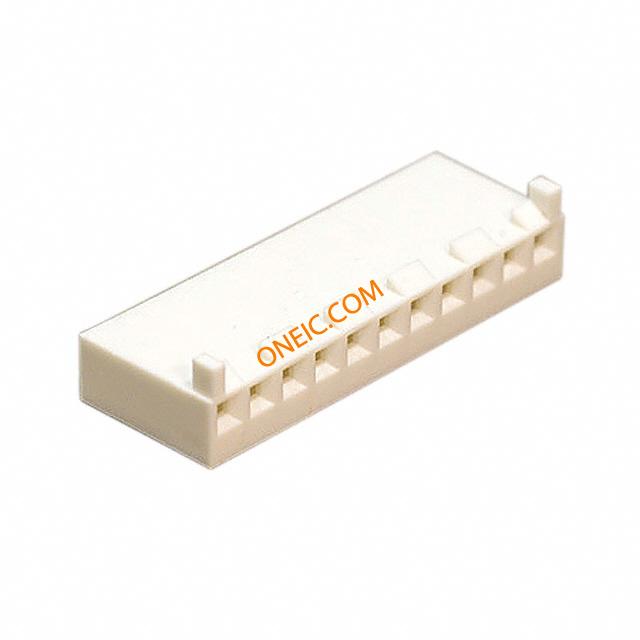

09-50-8113

制造商	Molex, LLC
描述	Conn Housing RCP 11 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 11POS .156 W/POLAR Headers & Wire Housings HSG 11P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009508113 41695-N-D11 9508113
产品类别	Headers & Wire Housings	标准包装数量	Bulk
工厂包装数量	500

合规参数

RoHS

Lead free / RoHS Compliant

机械参数

颜色	Natural	间距	0.156" (3.96mm)
包装方式	Bulk	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Polyester
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	11	接触件端接	Crimp
位数	11

产品信息

备注	Contacts Not Provided	系列	41695
产品特性	Polarizing Key	产品子类型	Receptacles / Sockets - Housings

文档与媒体

PDF 文档

09-50-8113

相关型号

0008500106

molex

Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-24AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag

¥0.4396

详情

0008500187

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2234

详情

0008520112

molex

Contact SKT Crimp ST Cable Mount Reel CONN TERM FEMALE 18-20AWG TIN

¥0.2149

详情

暂无图片

0008580104

molex

Contact SKT Crimp ST Cable Mount Loose Piece CONN TERM CRIMP 18-24 AWG GOLD

¥3.4034

详情

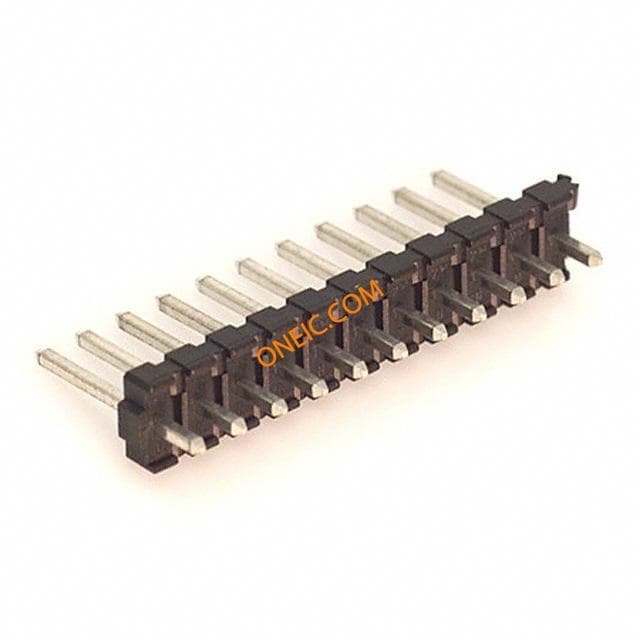

0026481116

molex

Conn Unshrouded Header HDR 11 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 11POS .156 R/A TIN

¥4.9266

详情

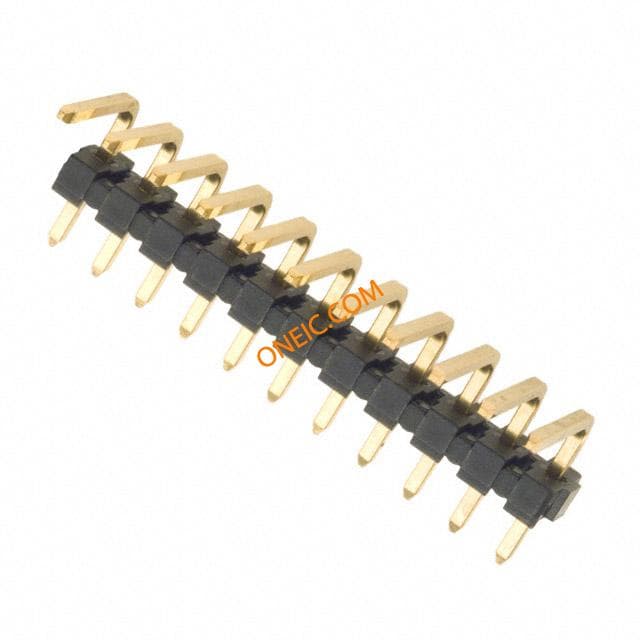

0026482112

molex

Conn Unshrouded Header HDR 11 POS 3.96mm Solder RA Thru-Hole Bag CONN HEADER 11POS .156 R/A GOLD

¥12.9044

详情

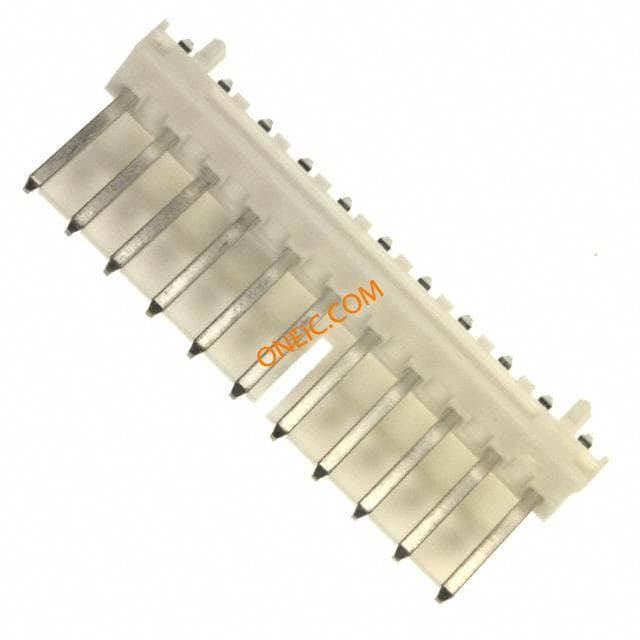

26-64-4110
