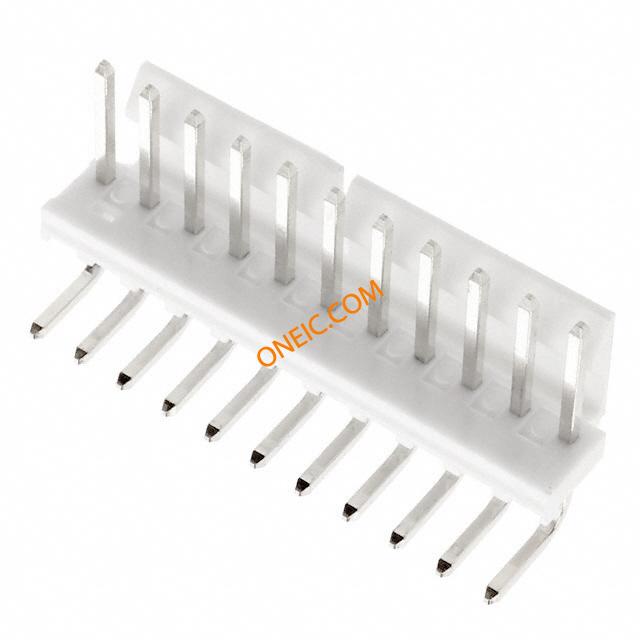

26-60-5110
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 11POS .156 R/A TIN Headers & Wire Housings R/A PCB HDR 11P TIN FRICTION LOCK Conn Wire to Board HDR 11 POS 3.96mm Solder RA Thru-Hole Bag |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026605110 41792-0011 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 200 | ||
合规参数
| RoHS | RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole, Right Angle |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Polyester |
| 端接样式 | Through Hole | 触点数 | 11 |
| 位数 | 11 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 60µin (1.52µm) | ||
产品信息
| 类型 | Pin Strip | 系列 | 41792 |
| 产品子类型 | Headers | 加载位置数 | All |
相关型号
0009482118
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
0009482112
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS TIN PCB
0009482113
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
0009482110
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009482111
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009523118
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009482115
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
09-50-8113
molex
Conn Housing RCP 11 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 11POS .156 W/POLAR Headers & Wire Housings HSG 11P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits
0009485116
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS GOLD PCB
0009521116
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009482119
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS TIN PCB
0009485115
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS GOLD PCB

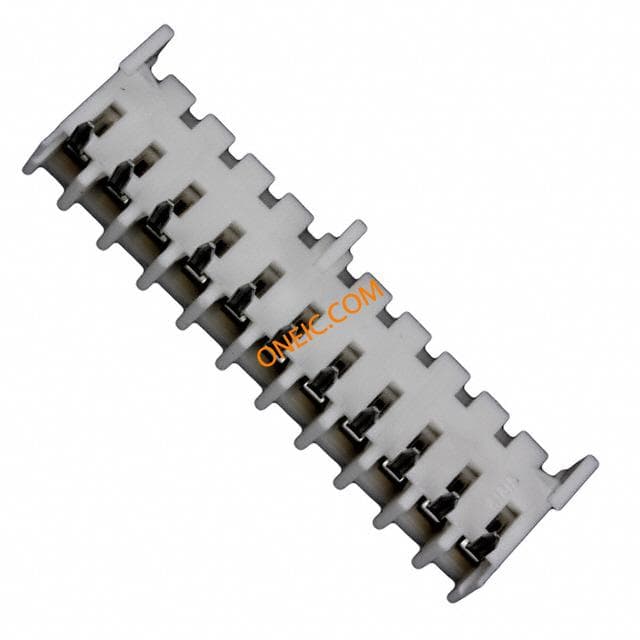

09-48-3115
Molex Connector Corporation
CONN RECEPT 11POS .156 R/A PCB Headers & Wire Housings 11 POS RECEPT .156 R/A PCB GOLD 3.96mm Pitch KK® PC Board Connector, Right Angle, Polyester Connector, Gold (Au) Selective, 11 Circuits
09-52-3112
Molex Connector Corporation
CONN RECEPT 11POS .156 VERT PCB
09-50-8111
Molex Connector Corporation
CONN HOUSING 11POS .156 W/RAMP Conn Housing F 11 POS 3.96mm Crimp ST Cable Mount Bag

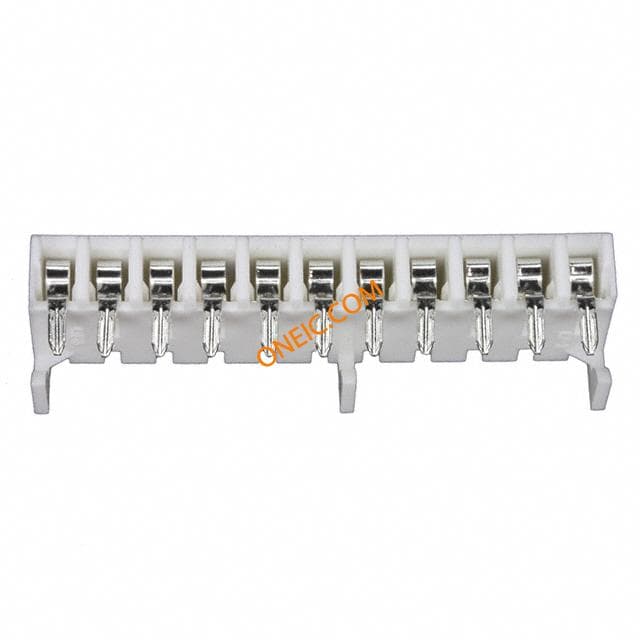

09-48-1114
Molex Connector Corporation
CONN RECEPT 11POS .156 R/A PCB Headers & Wire Housings 11 POS RECEPT .156 R/A PCB TIN Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray
09-52-3111
Molex Connector Corporation
CONN RECEPT 11POS .156 R/A PCB Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray

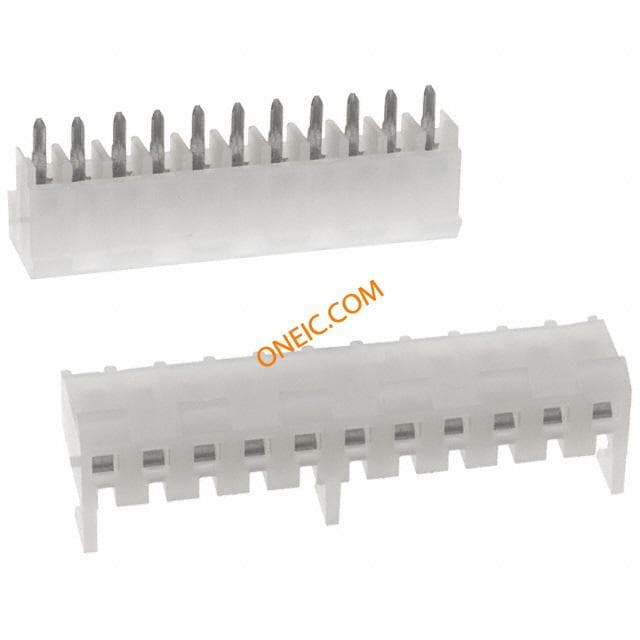

09-52-3113
Molex Connector Corporation
CONN RECEPT 11POS .156 VERT PCB Headers & Wire Housings PCB RECEPTACLE 11P Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray

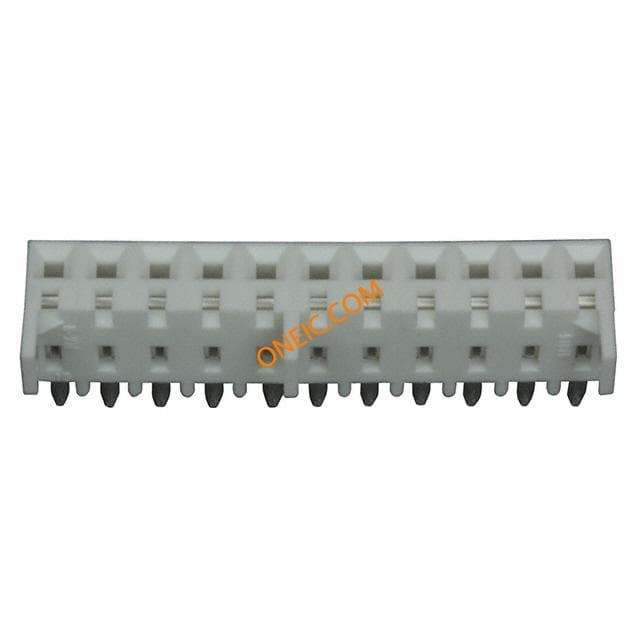

09-48-3116
