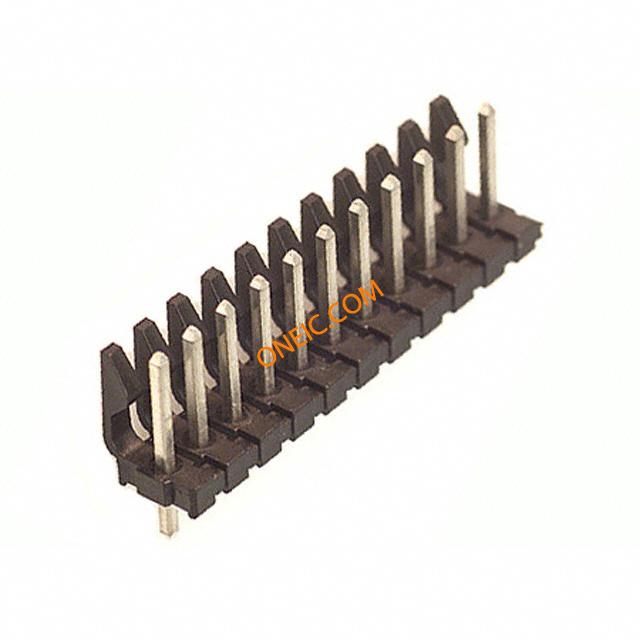

点击放大查看
0026481115
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 11POS .156 VERT TIN |
| 分类 |
商业参数
| 交货时间 | 61 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Black | 间距 | 0.156" (3.96mm) |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded, Breakaway | 接触镀层 | Tin |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 位数 | 11 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 行业别名 | 26-48-1115, 26481115 | 加载位置数 | All |
