点击放大查看

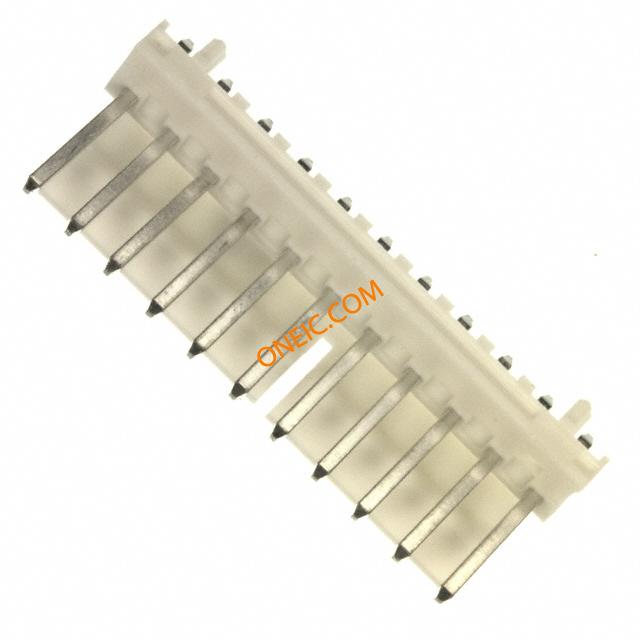

26-64-4110
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 11POS .156 VERT TIN Headers & Wire Housings KK 156 Hdr FrLk Peg 11 Ckt Tin |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026644110 42491-0011 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin Over Copper |
| 紧固类型 | Friction Lock | 排数 | 1 |
| 触头材料 | Brass | 端接样式 | Through Hole |
| 触点数 | 11 | 位数 | 11 |
| 接触长度 - 配合 | 0.450" (11.43mm) | 接触镀层厚度 | 60µin (1.52µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 42491 | 产品特性 | Board Guide |
| 产品子类型 | Headers | 加载位置数 | All |
相关型号
0009482118
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
0009482112
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS TIN PCB
0009482113
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
0009482110
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009482111
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009523118
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009482115
molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS TIN PCB
09-50-8113
molex
Conn Housing RCP 11 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 11POS .156 W/POLAR Headers & Wire Housings HSG 11P W/RAMP/RIBS 3.96mm Pitch KK® Crimp Terminal Housing, Friction Ramp, 11 Circuits
0009485116
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS GOLD PCB
0009521116
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS TIN PCB
0009624117
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS GOLD
0009482119
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 11POS TIN PCB
0009485114
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 11POS GOLD PCB
0009485115
Molex
Conn Socket Strip RCP 11 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 11POS GOLD PCB
0009931100
Molex
Conn Housing F 11 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 11POS
09-50-3111
Molex Connector Corporation
CONN HOUSING 11POS .156 W/RAMP 3.96mm,KK,housing,w/ramp,nylon,11way Headers & Wire Housings HSG 11P W/LKG RAMP UL94V-2 Conn Housing F 11 POS 3.96mm Crimp ST Cable Mount Bag 156KKTERMHSGW/RAMPNYLON11CKT Molex KK 396 系列 3.96mm 节距 11 路 直 母 电缆安装 压接连接器外壳

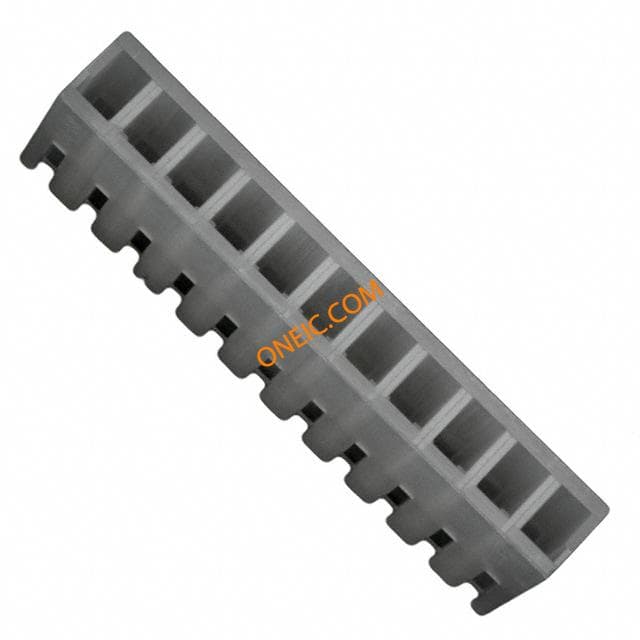

09-50-7111
