点击放大查看

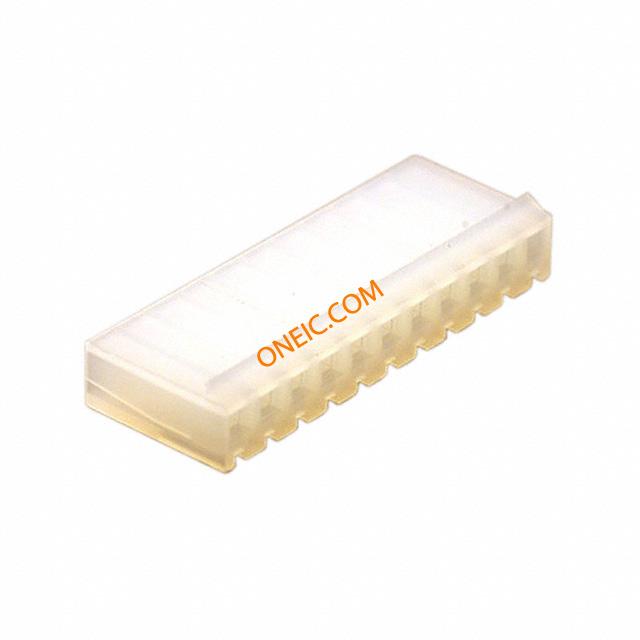

09-50-3111

制造商	Molex, LLC
描述	CONN HOUSING 11POS .156 W/RAMP 3.96mm,KK,housing,w/ramp,nylon,11way Headers & Wire Housings HSG 11P W/LKG RAMP UL94V-2 Conn Housing F 11 POS 3.96mm Crimp ST Cable Mount Bag 156KKTERMHSGW/RAMPNYLON11CKT Molex KK 396 系列 3.96mm 节距 11 路直母电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	KK	零件号别名	0009503111 2139-11A 9503111
产品类别	Headers & Wire Housings	标准包装数量	10
工厂包装数量	500

合规参数

RoHS

Compliant

机械参数

颜色	Natural	深度	15.88mm
间距	0.156" (3.96mm)	宽度	6.4mm
长度	43.48mm	包装方式	Bulk
方向	直	触头类型	Non Gendered
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
紧固类型	Locking Ramp	安装样式	Wire
排数	1	壳体材料	Nylon
端接样式	Crimp	第一触头极性	Socket (Female)
触点数	11	接触件端接	Crimp
位数	11

产品信息

备注	Contacts Not Provided	连接器性别	Female
系列	2139	CAD图纸	3D CAD Model
产品子类型	Receptacles / Sockets - Housings	基础产品编号	2139
适用产品/相关产品	KK Connector

文档与媒体

PDF 文档

09-50-3111

PDF 文档

0009503111_CRIMP_HOUSINGS.pdf
