点击放大查看

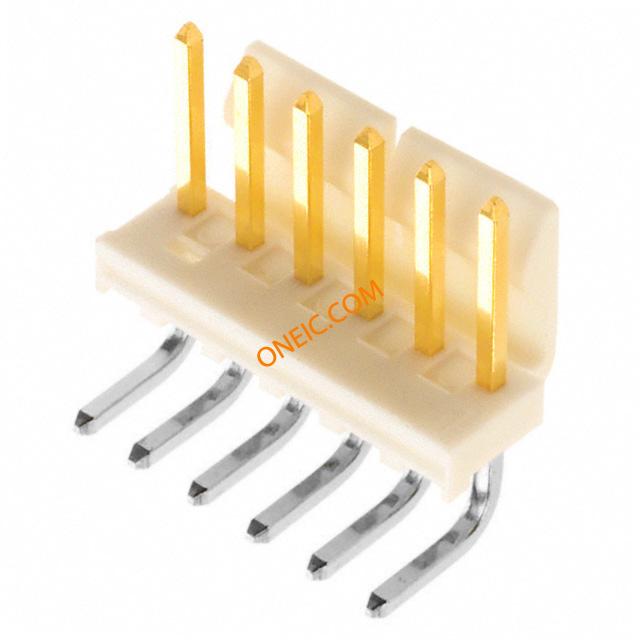

26-61-5060
| 制造商 | Molex, LLC |
| 描述 | CONN HEADER 6POS .156 R/A GOLD Molex 41792 Series 3.96mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 7A Headers & Wire Housings 6P HEADER GOLD Conn Wire to Board HDR 6 POS 3.96mm Solder RA Thru-Hole Bag CONNECTOR, HEADER, 6POS, 1ROW, 3.96MM Molex KK 396 系列 3.96mm节距 6路 (1排) 直角 PCB 针座, 焊接端接, 7A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026615060 41792-0023 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 250 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 量程（°/s） | :MOLEX - KK 41792 Series | 额定电压 | 250 V |
| 最大额定电流 | 7A | ||
机械参数
| 颜色 | Natural | 间距 | 0.156" (3.96mm) |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 端接样式 | Through Hole |
| 触点数 | 6 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 6 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | :Header |
| 系列 | 41792 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
