点击放大查看

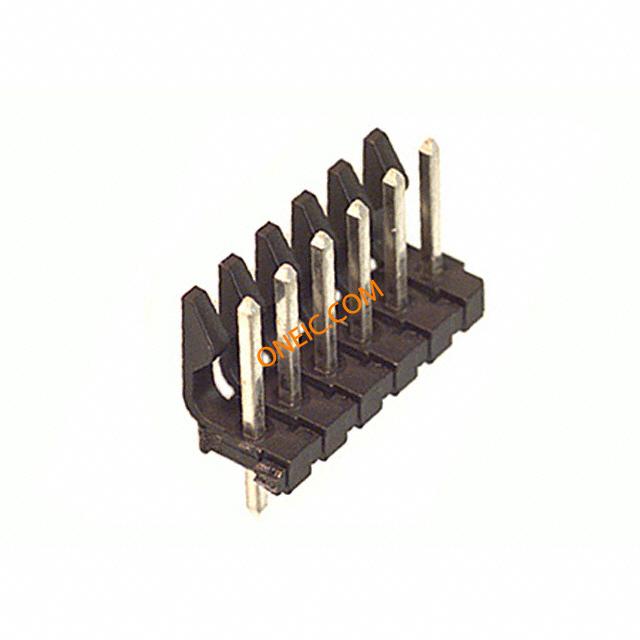

0026481065

制造商	Molex, LLC
描述	Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Bulk Conn Unshrouded Header HDR 6 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 6POS .156 VERT TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	20 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	10 mohm	最大额定电流	7/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	Black	深度	9.02 mm
间距	3.96 mm	高度	14.68 mm
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	Black
安装类型	Through Hole	连接器类型	Header, Unshrouded, Breakaway
接触镀层	Tin Over Copper	紧固类型	Friction Lock
安装样式	Through Hole	排数	1
触头材料	Brass	壳体材料	Polyester
总长度	23.72 mm	触点数	6
位数	6	接触长度 - 配合	0.450" (11.43mm)
接触镀层厚度	200µin (5.08µm)

产品信息

类型	Unshrouded Header	连接器性别	HDR
行业别名	26-48-1065, 26481065	加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

Reflow Matte Tin Plating 27/Jul/2011

PDF 文档

Tin Whisker Formation Change 27/Jul/2011

PDF 文档

0026481065_PCB_HEADERS.pdf
