点击放大查看

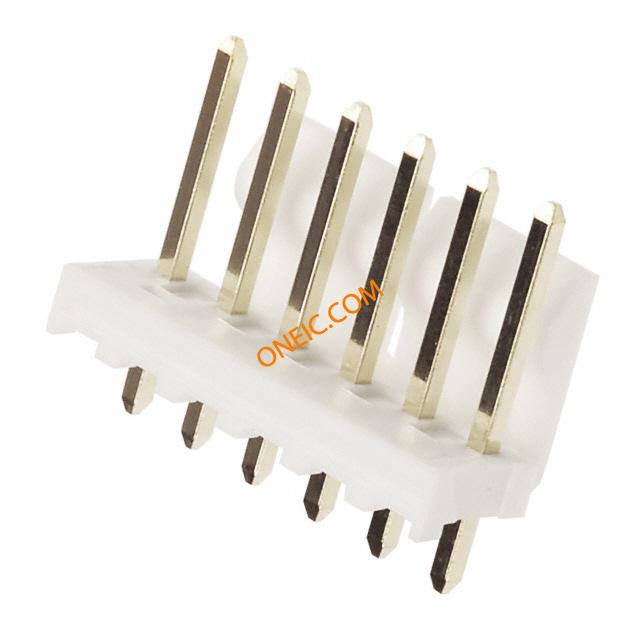

0026604060

制造商	Molex, LLC
描述	Conn Wire to Board HDR 6 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 6POS .156 VERT TIN
分类	连接器解决方案板对板连接器板对板连接器

商业参数

交货时间	20 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	6 mohm	最大额定电流	7/Contact A
最小输入电压	250VAC	最小供电电压	250VAC

机械参数

颜色	Natural	深度	10.01 mm
间距	3.96 mm	高度	14.73 mm
包装方式	Bag	端接方式	Solder
触头类型	Male Pin	外壳颜色	Natural
安装类型	Through Hole	连接器类型	Header, Unshrouded
接触镀层	Tin Over Copper	紧固类型	Friction Lock
安装样式	Through Hole	排数	1
触头材料	Brass	壳体材料	Polyester
总长度	23.62 mm	触点数	6
位数	6	接触长度 - 配合	0.450" (11.43mm)
接触镀层厚度	60µin (1.52µm)

产品信息

类型	Wire to Board	连接器性别	HDR
行业别名	26-60-4060, 26604060	加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

Reflow Matte Tin Plating 27/Jul/2011

Tin Whisker Formation Change 27/Jul/2011

0026604060_PCB_HEADERS.pdf

相关型号

0009503061

Molex

Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .156 W/RAMP

¥0.5898

详情

暂无图片

0009533061

molex

Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT HOUSING R/A 6POS TIN

¥2.2824

详情

暂无图片

0009481065

molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS GOLD PCB

¥3.3466

详情

暂无图片

0009482068

molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS TIN PCB

¥1.7172

详情

暂无图片

0009482063

molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT TOP 6POS TIN PCB

¥1.7172

详情

0009508063

molex

Conn Housing RCP 6 POS 3.96mm Crimp ST Cable Mount Bag CONN HOUSING 6POS .156 W/POLAR

¥1.1693

详情

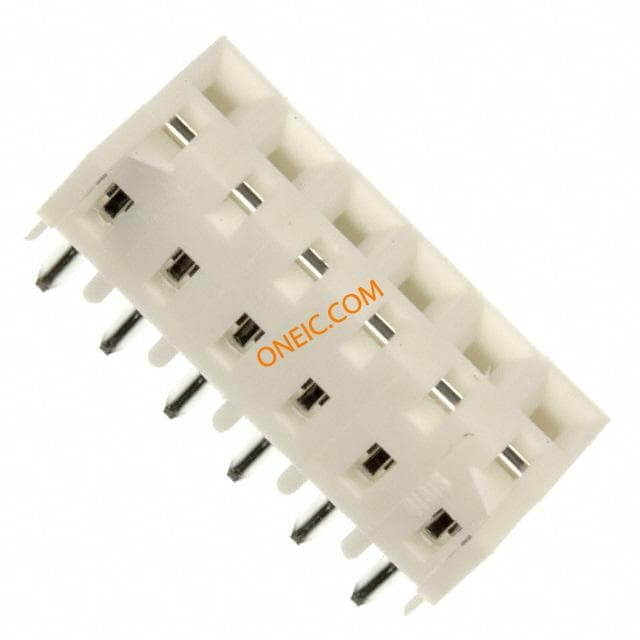

0009484068

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 6POS .156 VERT PCB

¥3.6649

详情

暂无图片

0009930600

Molex

Conn Housing F 6 POS 3.96mm Crimp ST Cable Mount Bag CONN FEMALE HSNG .156 6POS

¥2.5762

详情

暂无图片

0009521066

Molex, LLC

Buy now, ships today. 0009521066 - 6 Position Receptacle Connector 0.156" (3.96mm) Board Edge, Through Hole, Right Angle Tin from Molex. View datasheets, pricing and availability from DigiKey now!

¥5.2776

详情

0009481064

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RECEPT 6POS .156 R/A PCB

¥4.9491

详情

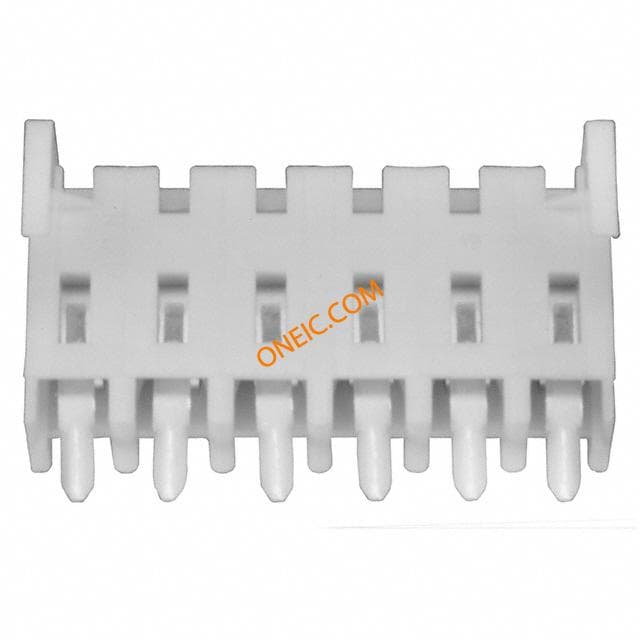

0009483066

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RECEPT 6POS .156 VERT PCB

¥5.4288

详情

暂无图片

0009485064

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS GOLD PCB

¥5.3352

详情

暂无图片

0009482060

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS TIN PCB

¥3.2184

详情

暂无图片

0009521060

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder RA Thru-Hole Tray CONN RCPT R/A 6POS TIN PCB

¥4.0824

详情

暂无图片

0009485066

Molex

Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray CONN RCPT BOTTOM 6POS GOLD PCB

¥5.5944

详情

09-52-3062

Molex Connector Corporation

CONN RECEPT 6POS .156 VERT PCB Headers & Wire Housings PCB RECPT 6P BOTTOM ENTRY Conn Socket Strip RCP 6 POS 3.96mm Solder ST Thru-Hole Tray

¥3.8880

详情

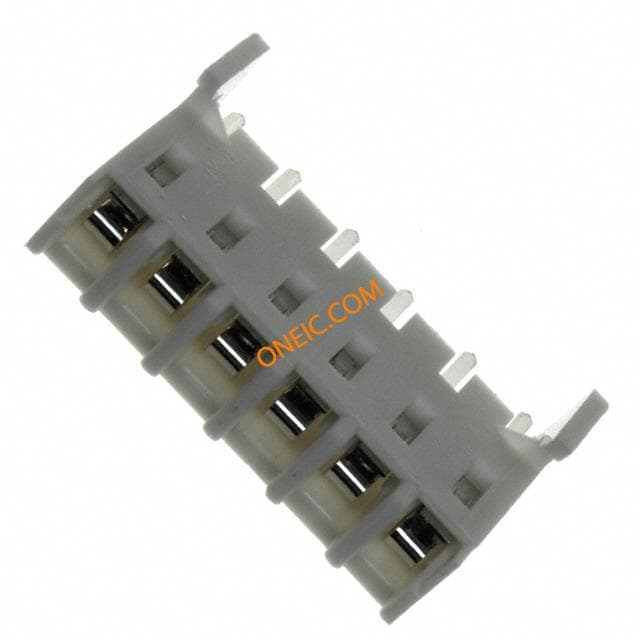

09-48-4069
