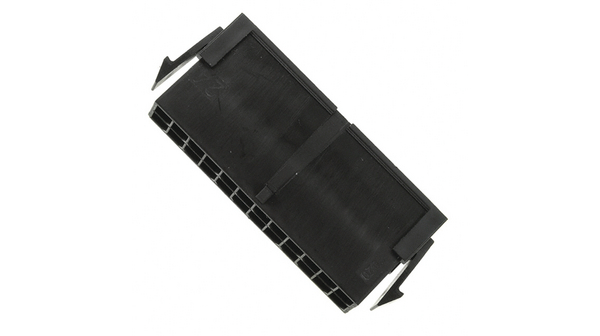

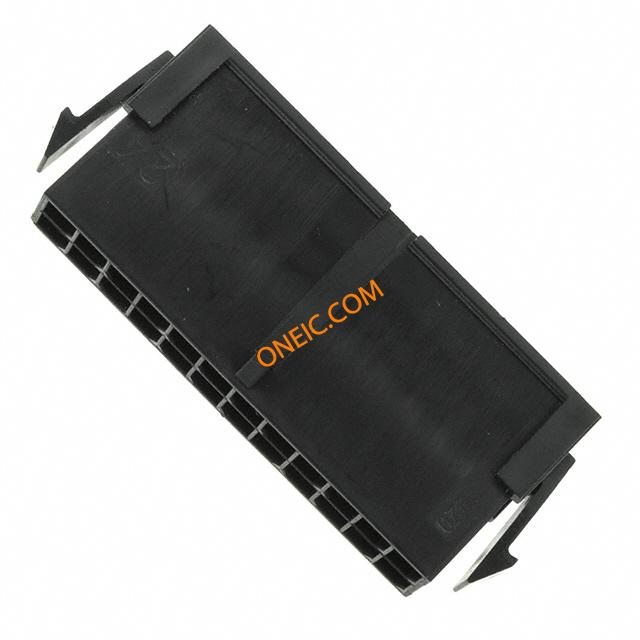

43020-2400
| 制造商 | Molex, LLC |
| 描述 | CONN PLUG 24POS 3MM DUAL ROW 2 x 12 way panel mount plug Micro-Fit Headers & Wire Housings 24 CKT PLUG HOUSING Conn Housing PL 24 POS 3mm Crimp ST Bag PLUG, PANEL MOUNT, 24WAY MICROFIT3.0PLUGDRPNLMNT24CKT Male contact housing dual row Pitch3 mm Poles 2 x 12 Micro-Fit, 43020-2400, Molex Molex MICRO-FIT 3.0 系列 2 行 3mm 节距 24 路 直 公 面板安装 压接连接器外壳 |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0430202400 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | 10 |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 额定电压 | 350 V ac/dc | 输出数量 | 24Circuits |
| 工作电压 | :250V | 接触电阻 | :10Mohm |
| 介电强度 | :1500V/m | 最大额定电流 | 5 A |
| 连接器类型 - 电压输入 | Plug | ||
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 重量 | 0.004 | 材料（通用） | :Polyester |
| 包装方式 | Bulk | 排间距 | 0.118" (3.00mm) |
| 触头类型 | Male Pin | 安装类型 | Panel Mount, Snap-In |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Panel | 排数 | 2 |
| 壳体材料 | Polyester | 连接器颜色 | Black |
| 触点数 | 24 | 接触件端接 | Crimp |
| 位数 | 24 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Plug Housing |
| 连接器性别 | :Plug | 系列 | 43020 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Wire Housings |
| 电路数 | 24 Circuits | 应用细节 | Power, Wire-to-Wire |
| 适用产品/相关产品 | :Micro-Fit 3.0 Crimp Terminals | ||
环境参数
| 工作温度 | +105°C | ||
