DSPIC33EP512MU814-I/PL
| 制造商 | Microchip Technology Inc. |
| 描述 | 144 PINS, 512KB FLASH, 52KB RA IC DSC 16BIT 512KB FLASH 144LQFP MCU,dsPIC33,60MIPS,512K Flash,LQFP144 Digital Signal Processors & Controllers - DSP, DSC 144P 512KB Flsh 52KB RAM 60MHz USB IC, DSC, 60MHZ, 144 LQFP IC,MCU;16-BIT;512KB;RAM,52KB;60MIPS;3.0-3.6V;LQFP-144 dsPIC33EP 512K LQFP144 85°C |
| 分类 |
商业参数
| 产品 | DSCs | 其他名称 | DSPIC33EP512MU814IPL |
| 标准包装数量 | 60 | ||
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 转速 | 70 MIPs | 定时器 | 4 x 32 bit, 9 x 16 bit |
| RAM 大小 | 24K x 16 | 内核大小 | 16-Bit |
| 核心类型 | dsPIC | 接口 | :DCI, ECAN, I2C, SPI, UART |
| 时钟速率 | 70 MIPs | 分辨率 | 8.32ns |
| 存储器容量 | 52 KB | I/O 数量 | 122 |
| 核心电压 | :1.8V | 额定电压 | 3 → 3.6 V |
| 数据转换器 | A/D 32x10b/12b | 最大频率 | 70MHz |
| DAC数量 | 1 | 振荡器类型 | Internal |
| 供电电压 | 3 V to 3.6 V | 分辨率（位） | 12/24bit |
| 通道数量 | 0 | 程序存储器大小 | 512KB (170K x 24) |
| 程序存储器类型 | FLASH | 工作频率 | :60MHz |
| ADC/DAC 数量 | 32 | 频率（中心/带宽） | 16 bit, 32 bit |
| 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V | ||
机械参数
| 宽度 | 20mm | 高度 | 1.4mm |
| 长度 | 20mm | 重量 | 0.0002 |
| 包装方式 | Tray | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :144 |
| 封装形式 | 144-LQFP | 冷却的封装 | LQFP |
| 材料表面处理 | :MSL 3 - 168 hours | 尺寸/外形 | 20 x 20 x 1.4mm |
| 位数 | 144 | 供应商器件封装 | 144-LQFP (20x20) |
| 核心数/总线宽度 | 16bit | 脉冲宽度失真（最大） | 14 (1 x 8.32 ns) |
产品信息
| USB | 1 | 系列 | dsPIC33E |
| 闪存大小 | :536KB | 片内RAM（通道数×位宽） | Yes |
| 外设 | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT | 架构 | C |
| 连接性 | CAN, I²C, IrDA, LIN, QEI, SPI, UART/USART, USB OTG | 核心处理器 | dsPIC |
| 定时器数量 | 13 | 射频系列/标准 | dsPIC33 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
DV007004
microchip
Production Programmer/Development Kit PRODUCTION PROGRAMMER/DEVELOPMENT Programmers - Processor Based MPLAB PM3 Universal Device Programmer MPLAB PM3 UNIVERSAL DEVICE PROGRAMMER Universal Device Programmer PROGRAMMER UNIVERSAL PM3 DV007004, Development Kit, 8 bit, PIC MPLAB PM3 Universal Device Programmer Socket Module Adapter MPLAB PM3 PROGRAMMER, PIC, DSPIC30F PRODUCTIONPROGRAMMER/DEVELOPMENTKITWITHBUILT-INICSP.PROGRAMSPICMICRO&DS PM3 Universal Device Programmer PC hosted mode / Stand-alone mode, DV007004, Microchip Microchip 处理器和微控制器开发套件
DV244005
microchip
MPLAB Real ICE In Circuit Emulator Probe Kit Emulators / Simulators In Circuit Emulator MPLAB REAL ICE REAL ICE with Base Probe KIT PROBE MPLAB REAL ICE DV244005, Development Kit, 32 bit, PIC PROBE KIT, MPLAB REAL ICE MPLABREALIn-CircuitEmulator(ICE)withIDE Programmer: microcontrollers; USB; No.of diodes:2 MPLAB REAL ICE, in-circuit emulator PC hosted mode, DV244005, Microchip Microchip 处理器和微控制器开发套件
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
DM330015
microchip
Motor Control Starter Kit With M Touch Sensing Development Boards & Kits - PIC / DSPIC Motor Ctrl Starter Kit mTouch Sensing MPLAB Starter Kit Motor Contr. KIT STARTER MOTR CTRL DSPIC33E MPLAB Starter Kit Motor CTRL & mTouch DSPIC33F, MOTOR CNTLR, STARTER KIT MPLABStarterKitMotorCTRL&mTouch Development kit: Microchip; dsPIC33FJ16MC102; Interface: USB MPLAB Starter Kit for Motor Control PC hosted mode dsPIC33FJ16MC102, DM330015, Microchip Microchip 传感器和转换器 开发套件
DM330012
microchip
USB Starter Kit Provides A Low Cost Method For The Development And Testing Of USB OTG Development Boards & Kits - PIC / DSPIC dsPIC33E USB Starter Kit USB Starterkit for dsPIC33E Ro KIT USB STARTER FOR DSPIC33E MPLAB Starter Kit for dsPIC33E DSCs DSPIC33E, USB OTG, MPLAB STARTER KIT DevelopmentKit;MPLABStarterKitfordsPIC33EDSCs Development kit: Microchip; dsPIC33EP512MU810 MPLAB Starter Kit for dsPIC33E Stand-alone mode, DM330012, Microchip dsPIC33 USB Starter Kit
MA330027
microchip
Dual Motor Control Plug-In-Module Daughter Cards & OEM Boards dsPIC33E Dual Motor Control PIM dsPIC33E Dual Motor Control PIM MODULE PLUG-IN DSPIC33F 100TQFP PIM, MOTOR CTRL, DUAL, DSPIC33E dsPIC33EDualMotorControlPIM
DM320005
microchip
Multimedia Expansion Board The Multimedia Expansion Board Is An Integrated Yet Flexible Solution Development Boards & Kits - PIC / DSPIC Multimedia Expansion Board Multimedia Expansion Board BOARD EXPANSION FOR PIC32 KIT DM320005, Development Kit, 32 bit, Graphics, PIC32, Multimedia Expansion Board EXP BOARD, MULTIMEDIA, FOR PIC32 KIT MultimediaExpansionBoard,PIC32Boardsandkits Expansion board; PIC32; 3,2" TFT 240x320
DM330021
microchip
DSPICDEM MCLV Development Board Development Boards & Kits - PIC / DSPIC dsPIC33 MC LV Demo Kit MPLAB dsPICDEM MCLV Dev.Board R KIT DEMO DSPIC33 MCLV DM330021, Development Kit, 16 bit, dsPIC DSPICDEM, BLDC MOTOR CTRL, DEV BOARD dsPICDEMMCLVDevelopmentBoard,MotorControl dsPICDEM MCLV Development Board PC hosted mode dsPIC33FJ32MC204 24 V, DM330021, Microchip
DM330023
microchip
DSPICDEM MCHV Development Board With Maximum Output 1000W At 400V Development Boards & Kits - PIC / DSPIC dsPICDEM MCHV Power Module BOARD DEV DSPICDEM MCHV dsPICDEMMCHVPowerModule,MotorControl
PG164130
microchip
PICKIT 3 In Circuit Debugger In-Circuit Debuggers PICkit 3 In-Circuit Debugger PICkit 3 In-Circuit Debugger PROGRAMMER MCU PICKIT 3 PG164130, Programmer, 16 bit, PIC, PICkit 3 In-Circuit Debugger DEBUGGER, PICKIT 3 ICD, DSPIC, USB PICkit 3 In-Circuit Debugger Only PICkit3In-CircuitDebugger,MPLABEmulatorsandDebuggers Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Programmer/Debugger PC hosted mode, PG164130, Microchip Microchip PICkit 3 程序编译器 微控制器开发套件
AC164123
microchip
Ethernet PICtail Plus Daughter Board Ethernet Development Tools PICtail Daughter Brd Ethernet Plus Ethernet PICtail Daughter Plus BOARD DAUGHTER ETH PICTAIL PLUS ENC28J60, ETHERNET, DAUGHTER BOARD ETHERNETPICTAILDAUGHTERPLUSBOARD Expansion board with Ethernet 10Base-T controller; ENC28J60 Ethernet PICtail Plus Daughter Board -, AC164123, Microchip
DSPIC33EP512MU814-I/PL
microchip
144 PINS, 512KB FLASH, 52KB RA IC DSC 16BIT 512KB FLASH 144LQFP MCU,dsPIC33,60MIPS,512K Flash,LQFP144 Digital Signal Processors & Controllers - DSP, DSC 144P 512KB Flsh 52KB RAM 60MHz USB IC, DSC, 60MHZ, 144 LQFP IC,MCU;16-BIT;512KB;RAM,52KB;60MIPS;3.0-3.6V;LQFP-144 dsPIC33EP 512K LQFP144 85°C
RE470
Roth Elektronik

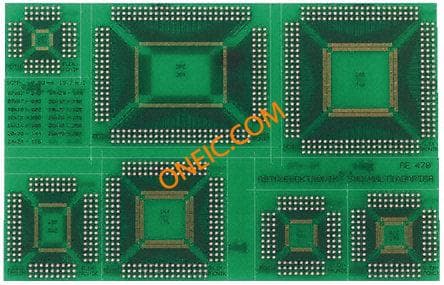

RE470, Surface Mount (SMT) Board QFP Epoxy Glass Double-Sided 203 x 123 x 1.5mm FR4 MULTIADAPTOR, SMD, FR4, QFP Board: universal; double sided, multiadapter; W:123mm; L:203mm Roth Elektronik 双面 QFP 表面贴装（SMT）板, 环氧玻璃, 203 x 123 x 1.5mm, FR4
