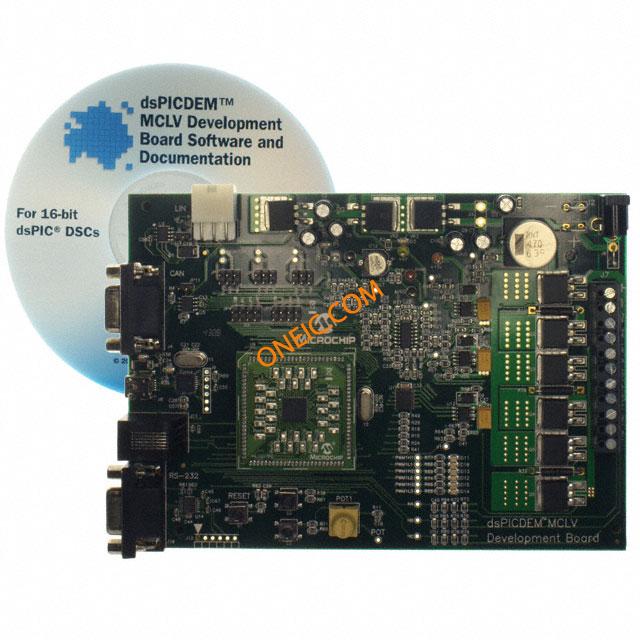

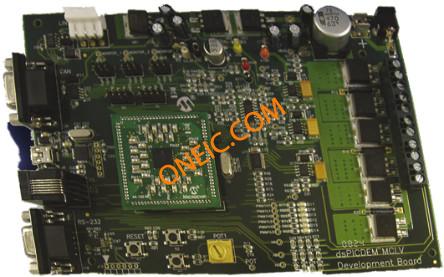

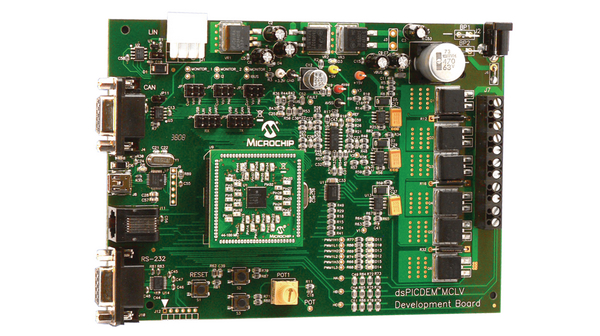

DM330021

制造商	Microchip Technology Inc.
描述	DSPICDEM MCLV Development Board Development Boards & Kits - PIC / DSPIC dsPIC33 MC LV Demo Kit MPLAB dsPICDEM MCLV Dev.Board R KIT DEMO DSPIC33 MCLV DM330021, Development Kit, 16 bit, dsPIC DSPICDEM, BLDC MOTOR CTRL, DEV BOARD dsPICDEMMCLVDevelopmentBoard,MotorControl dsPICDEM MCLV Development Board PC hosted mode dsPIC33FJ32MC204 24 V, DM330021, Microchip
分类	嵌入式系统与开发工具嵌入式MCU与DSP评估板MCU评估板

对参数有疑问？问 AI 助手

商业参数

最小起订量	1	产品	Development Boards
单位包装	1	产品类别	Development Boards & Kits - PIC / DSPIC
标准包装数量	Boxed	工厂包装数量	1

合规参数

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
欧盟RoHS	Supplier Unconfirmed	海关税号	85423190
无铅定义	RoHS-conform

电气参数

核心类型	dsPIC	接口	CAN, LIN, RS-232, USB
供电电压	24 V	元件数量	:dsPIC33F

机械参数

重量

0.9

核心数/总线宽度

16 bit

产品信息

类型	Development Kit	内容	Board, Cable, CD, Screw Driver
嵌入式	Yes, MCU, 16-Bit	产品特性	:Evaluating and Developing Sensored / Sensorless BLDC and Permanent Magnet Synchronous Motor Control
功能	dsPICDEMTM MCLV Development Board provides a cost-effective method of evaluating and developing sensored or sensorless Brushless DC (BLDC) and permanent magnet synchronous motor control applications	匹配码	DM330021
技术	16 bit	套件内容	CD with Documentation & Software, dsPICDEM MCLV Development Board, Screw Driver, USB Cable
主要用途	Power Management, Motor Control	制造商全称	:dsPIC33FJxxMCxxx
卡标准	Development Kit	开发套件	STARTERKIT
标准交期	6 weeks	工具类型/特性	dsPIC33FJ32MC204
主要特性	3-Ph BLDC or PMSM, 48V, 15A	使用的IC/零件	dsPIC33F
芯片组制造商	:Microchip	次要特性	CAN, LIN, USB, RS-232 Interfaces
支持MCU系列	:dsPIC33F	适用产品/相关产品	:dsPIC33FJxxxMC202 PIM, dsPIC33FJxxxMCx04 PIM, dsPIC33FJxxxMCx10 PIM

文档与媒体

压缩文件

DM330021 BOM, Gerber Files

在线文档

idcplg?IdcService=SS_GET_PAGE&nodeId=1406&dDocName=en537020

PDF 文档

DSPICDEM MCLV User Guide

PDF 文档

70331A.pdf
