点击放大查看

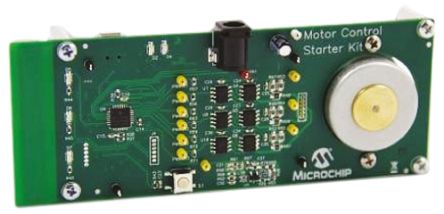

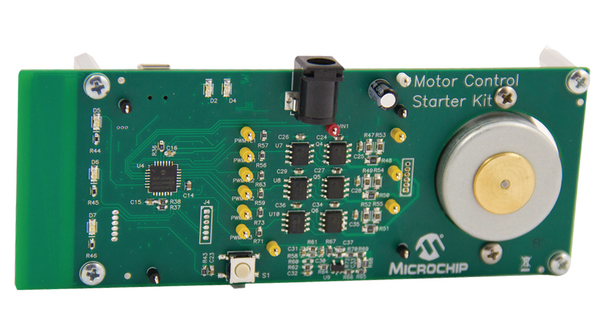

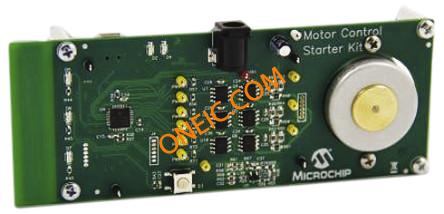

DM330015
| 制造商 | Microchip Technology Inc. |
| 描述 | Motor Control Starter Kit With M Touch Sensing Development Boards & Kits - PIC / DSPIC Motor Ctrl Starter Kit mTouch Sensing MPLAB Starter Kit Motor Contr. KIT STARTER MOTR CTRL DSPIC33E MPLAB Starter Kit Motor CTRL & mTouch DSPIC33F, MOTOR CNTLR, STARTER KIT MPLABStarterKitMotorCTRL&mTouch Development kit: Microchip; dsPIC33FJ16MC102; Interface: USB MPLAB Starter Kit for Motor Control PC hosted mode dsPIC33FJ16MC102, DM330015, Microchip Microchip 传感器和转换器 开发套件 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Starter Kits |
| 单位包装 | 1 | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423990 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | dsPIC | 接口 | USB |
| 输出功率 | 10W | 供电电压 | 9 V |
| 元件数量 | :dsPIC33F | 最小供电电压 | 9...12V DC |
机械参数
| 重量 | 0.04 | 连接器类型 | USB B mini |
| 核心数/总线宽度 | 16 bit | ||
产品信息

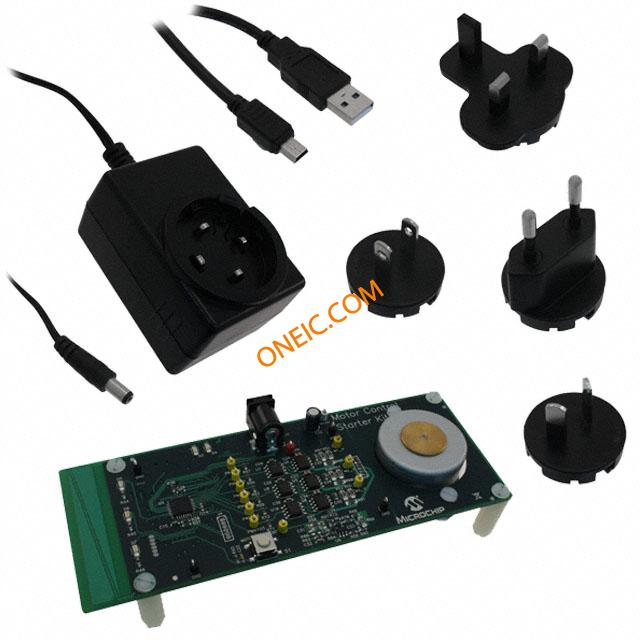

| 类型 | Development Tool | 内容 | Board, Cable, Power Supply |
| 嵌入式 | Yes, MCU, 16-Bit | 产品特性 | :On-board In-Circuit Programming / Debug via USB, 3-phase BLDC Motor |
| 套件类型 | :Power Management - Motor Control | 匹配码 | DM330015 |
| 技术 | Sensor & Transducer | 套件内容 | BLDC Motor, Capacitive Touch Slider, dsPIC33FJ16MC102 16-bit Motor Control DSC |
| 主要用途 | Power Management, Motor Control | 制造商全称 | :dsPIC33FJxxMCxxx |
| 卡标准 | Development Kit | 通信接口 | USB |
| 按键数 | 1 | 单元数量 | 1 |
| 标准交期 | 6 weeks | 电路数 | dsPIC33FJ16MC102 |
| 主要特性 | On Board In-Circuit Program/Debug via USB Interface | 使用的IC/零件 | dsPIC33FJ16MC102 |
| 芯片组制造商 | :Microchip | 次要特性 | Capacitive Touch Sliders for Speed Control With LED Indicators |
| 应用细节 | :BLDC Motor | 可编程特性 | capacitive keypad |
文档与媒体
