DSPIC33FJ32MC102-I/SO
| 制造商 | Microchip Technology Inc. |
| 描述 | IC DSC 16BIT 32KB FLASH 28SOIC 16-bit Motor Control DSC Family, 16 MCU,dsPIC33,MC,16MIPS,32KB Flash,SOIC28 Digital Signal Processors & Controllers - DSP, DSC 16bit Mtr Cnt Fam 16 MIPS 32KBFLSH 2KBRAM 16-bit Motor Control DSC Family, 16 MIPS, 32KB Flash, 2KB RAM 28 SOIC .300in TUB IC, DSC, 16BIT, 32KB, 28SOIC DsPIC microcontroller; Memory:32kB; SRAM:2048B; SO28; 3÷3.6V |
| 分类 |
商业参数
| 最小起订量 | 270 | 产品 | DSCs |
| 单位包装 | 27 | 其他名称 | DSPIC33FJ32MC102ISO |
| 标准包装数量 | 27 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (16-Dec-2013) |
| 海关税号 | 85423190 | ||
电气参数
| 转速 | 16 MIPs | 定时器 | 5 x 16 bit |
| 存储器 | 32kB | RAM 大小 | 1K x 16 |
| 内核大小 | 16-Bit | 核心类型 | PIC |
| 接口 | I2C, SPI, UART | 时钟速率 | 7.37 MHz, 32 kHz |
| 分辨率 | 16bit | 存储器容量 | 2 KB |
| I/O 数量 | 21 | 额定电压 | 3.3 V |
| 时钟频率 | :40MHz | 数据转换器 | A/D 8x10b |
| 最大频率 | 16MHz | DAC数量 | 3 |
| 振荡器类型 | Internal | 输出电流 | 10 mA |
| 供电电压 | 3 V to 3.6 V | 分辨率（位） | 10bit |
| 程序存储器大小 | 32KB (11K x 24) | 程序存储器类型 | FLASH |
| ADC/DAC 数量 | 8 | 最小供电电压 | 3...3.6V |
| 频率（中心/带宽） | 16bit | 供电电压 (Vcc/Vdd) | 3 V ~ 3.6 V |
机械参数
| 宽度 | 7.5mm | 高度 | 2.35mm |
| 长度 | 17.9mm | 重量 | 0 |
| 包装方式 | Tube | 安装类型 | Surface Mount |
| 安装样式 | SMD/SMT | 引脚数 | :28 |
| 封装形式 | 28-SOIC (0.295", 7.50mm Width) | 冷却的封装 | SOIC |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 27 |
| 尺寸/外形 | 17.9 x 7.5 x 2.35mm | 位数 | 28 |
| 核心数/总线宽度 | 16bit | 脉冲宽度失真（最大） | 3 (6 x 16 bit) |
产品信息
| SPG | 27 | USB | 0 |
| 类型 | dsPIC33FJ32(GP/MC)101/102/104 | 片内RAM（通道数×位宽） | Yes |
| 外设 | Brown-out Detect/Reset, Motor Control PWM, POR, PWM, WDT | 架构 | Modified Harvard |
| 连接性 | I²C, IrDA, LIN, SPI, UART/USART | 核心处理器 | dsPIC |
| 内置振荡器 | 32kHz, 7,37MHz | 单元数量 | 1 |
| 定时器数量 | 5 | 控制器系列 | :dsPIC33F |
| 射频系列/标准 | dsPIC33F | 宏单元数量 | 2 |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号
DV164035
microchip
MPLAB ICD 3 In Circuit Debugger In-Circuit Debuggers MPLAB ICD3 MPLAB ICD3 In-Circuit Debugger MPLAB ICD3 IN-CIRC DEBUGGER DV164035, Programmer, 16 bit, PIC DEBUGGER, MPLAB ICD 3, DSPIC FOR PIC MPLAB ICD 3 In-Circuit Debugger Kit MPLABICD3IncircuitDebugger Programmer: microcontrollers; USB; No.of diodes:3 In-Circuit Debugger/Programmer ICD3 PC hosted mode, DV164035, Microchip Microchip MPLAB ICD 3 在线调试器 处理器和微控制器开发套件
AC164142
microchip
CONSUMER-BAND BPSK 7.2KBPS PLM PICTAIL PLUS DAUGHTER BOARD Daughter Cards & OEM Boards BPSK 7.2kbps PLM PICtail+Daughter Brd PICtail Plus Daughter Board BOARD DAUGHTER PWR LINE MODEM BPSK 7.2kbps PLM PICtail Plus D Board Consumer-Band Bpsk 7.2Kbps Plm Pictail Plus Daughter Board PICTAIL PLUS, PLM, DAUGHTER BOARD Consumer-bandBPSK7.2kbpsPLMPICtailPlusDaughterBoard Power-Line Modem BPSK expansion board; 7.2kbps Power-Line Soft-Modem PICtail Plus Board - 9 V, AC164142, Microchip Microchip 电源管理 评估测试板
DM330015
microchip
Motor Control Starter Kit With M Touch Sensing Development Boards & Kits - PIC / DSPIC Motor Ctrl Starter Kit mTouch Sensing MPLAB Starter Kit Motor Contr. KIT STARTER MOTR CTRL DSPIC33E MPLAB Starter Kit Motor CTRL & mTouch DSPIC33F, MOTOR CNTLR, STARTER KIT MPLABStarterKitMotorCTRL&mTouch Development kit: Microchip; dsPIC33FJ16MC102; Interface: USB MPLAB Starter Kit for Motor Control PC hosted mode dsPIC33FJ16MC102, DM330015, Microchip Microchip 传感器和转换器 开发套件
DM330013-2
microchip
Microstick II Delivers A Complete Development Hardware Platform For 16-Bit And 32-Bit Microcontrollers Development Boards & Kits - PIC / DSPIC Microstick II Microstick II for 16-bit/32-bit STARTER KIT FOR MICROSTICK II Microstick 2,16/32bit Development Tool MICROSTICK II, FOR DSPIC33, PIC24F IC,DevelopmentTool;PIC/dsPICMicrostickII Development kit: Microchip; Communication with PC: USB Microstick II PC hosted mode PIC24FJ64GB002, PIC24HJ64GP502, dsPIC33FJ64MC802, PIC32MX220F032, DM330013-2, Microchip Microchip 32 位 MCU 开发套件
MIKROE-777
mikroElektronika
Development Software USB KEY VISUAL TFT SOFTWARE SOFTWARE, VISUAL TFT W/USB LICENSE
DM330021
microchip
DSPICDEM MCLV Development Board Development Boards & Kits - PIC / DSPIC dsPIC33 MC LV Demo Kit MPLAB dsPICDEM MCLV Dev.Board R KIT DEMO DSPIC33 MCLV DM330021, Development Kit, 16 bit, dsPIC DSPICDEM, BLDC MOTOR CTRL, DEV BOARD dsPICDEMMCLVDevelopmentBoard,MotorControl dsPICDEM MCLV Development Board PC hosted mode dsPIC33FJ32MC204 24 V, DM330021, Microchip
DM330013
microchip
Micro-Stick For DSPIC33F And PIC24H Development Board Development Boards & Kits - PIC / DSPIC Microstick PIC24H and dsPIC33F Microstick dsPIC33F and PIC24H MICROSTICK DSPIC33F/PIC24H BOARD MICROSTICK, DSPIC33F, PIC24H MicrostickfordsPIC33FandPIC24H,StarterKits
DM330022
microchip
DSPICDEM MCSM Development Board With Two Full-Bridge Inverters Development Boards & Kits - PIC / DSPIC Dev Board dsPICDEM MCSM BOARD DEV DSPICDEM MCSM DM330022, Development Kit, 16 bit, dsPIC DSPICDEM, MOTOR CONTROL, DEV BOARD dsPICDEMMCSMDevelopmentBoard,MotorControl dsPICDEM MCSM Development Board, DM330022, Microchip Microchip 开发板 16 位 MCU 微控制器开发套件 (dsPIC 内核)
DM330023
microchip
DSPICDEM MCHV Development Board With Maximum Output 1000W At 400V Development Boards & Kits - PIC / DSPIC dsPICDEM MCHV Power Module BOARD DEV DSPICDEM MCHV dsPICDEMMCHVPowerModule,MotorControl
AC243026
microchip
Capacitive Touch Evaluation Board Development Boards & Kits - PIC / DSPIC PIC24H Cap Touch Eval Board BOARD EVAL PIC24H MTOUCH CAP AC243026, Module, Sensor & Transducer, PIC, 12-Key Matrix Sensor Board PIC24H, CAP TOUCH, EVALUATION BOARD PIC24HCapTouchEvalBoard PIC24H mTouch Eval Board
PG164130
microchip
PICKIT 3 In Circuit Debugger In-Circuit Debuggers PICkit 3 In-Circuit Debugger PICkit 3 In-Circuit Debugger PROGRAMMER MCU PICKIT 3 PG164130, Programmer, 16 bit, PIC, PICkit 3 In-Circuit Debugger DEBUGGER, PICKIT 3 ICD, DSPIC, USB PICkit 3 In-Circuit Debugger Only PICkit3In-CircuitDebugger,MPLABEmulatorsandDebuggers Programmer: microcontrollers; USB; ICSP, USB B mini PICkit 3 Programmer/Debugger PC hosted mode, PG164130, Microchip Microchip PICkit 3 程序编译器 微控制器开发套件
DM330021-2
Microchip Technology
DSPICDEM MCLV-2 DEVELOPMENT BO BOARD DEV DSPICDEM MCLV-2 Power Management IC Development Tools 64KB Flash, 8KB RAM 16MIPS USBOTG Crypto dsPICDEM MCLV-2 Development Board For Developing Sensored Or Sensorless Brushless DC EVAL, DSPICDEM MCLV-2 Development kit: Microchip; dsPIC33EP256MC506; 24VDC dsPICDEM MCLV-2 Development Board, DM330021-2, Microchip Microchip dsPICDEM MCLV-2 套件 BLDC 电机 开发板 MPLAB dsPICDEM MCLV2Dev.Board
DM330023-2
Microchip Technology

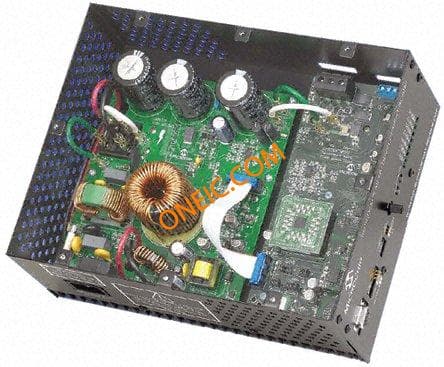

DSPICDEM MCHV-2 DEV SYSTEM dsPICDEM MCHV-2 Develop. System DM330023-2, Development Kit, 16 bit, dsPIC Power Management IC Development Tools dsPICDE MCHV-2 DSPICDEM, EVAL, MCH-V, MOTOR CONTROL
