点击放大查看

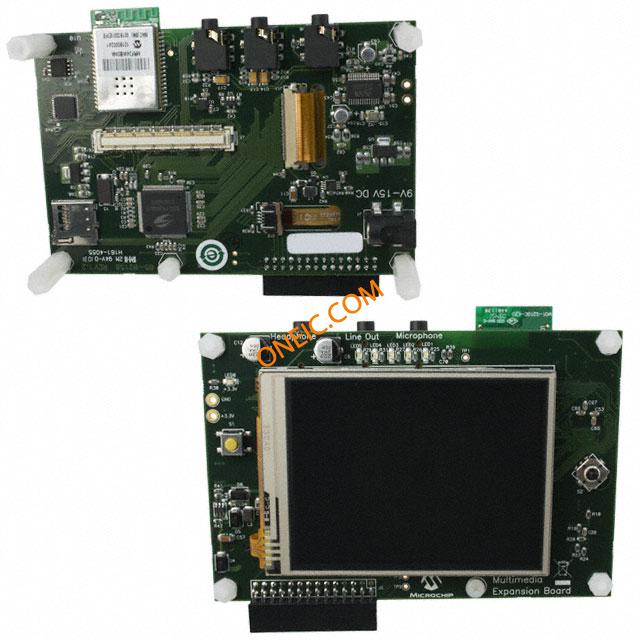

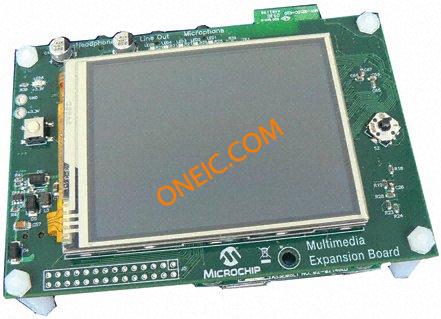

DM320005
| 制造商 | Microchip Technology Inc. |
| 描述 | Multimedia Expansion Board The Multimedia Expansion Board Is An Integrated Yet Flexible Solution Development Boards & Kits - PIC / DSPIC Multimedia Expansion Board Multimedia Expansion Board BOARD EXPANSION FOR PIC32 KIT DM320005, Development Kit, 32 bit, Graphics, PIC32, Multimedia Expansion Board EXP BOARD, MULTIMEDIA, FOR PIC32 KIT MultimediaExpansionBoard,PIC32Boardsandkits Expansion board; PIC32; 3,2" TFT 240x320 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Expansion Boards |
| 单位包装 | 1 | 标准包装数量 | Boxed |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | dsPIC, PIC | 接口 | I2C, SPI |
| 供电电压 | 9 V to 14 V | 元件数量 | :PIC32MX |
机械参数
| 重量 | 0.04 | 核心数/总线宽度 | 16 bit |
产品信息
| 类型 | Development Kit | 内容 | MultimediaExpansionBoardInformationSheetwithlinkstogetstartedstartcarddirectinguserstowebbasedinstructionsforsoftwaredownloadandinstallation.Notethatnosoftwareisprovidedinthebox.**Startingwithversion1.03theMPLABCCompilerforPIC32StudentEditionhasnocodesizelimitandfullfunctionalityfor60days.After60days,optimizationlevels-O2,-O3,-Osarenotavailable |
| 产品特性 | :3.2" Colour TFT Touch-screen Display and Interfaces, Multimedia Expansion Board | 功能 | Multimedia expansion board |
| 匹配码 | PIC32 MULTIMEDIA BOARD | 技术 | 32 bit, Graphics |
| 套件内容 | Multimedia Expansion Board | 制造商全称 | :PIC32 |
| 卡标准 | Development Kit | 显示样式 | 3,2" TFT 240x320 |
| 附件类型 | Multimedia Expansion Board | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 标准交期 | 6 weeks |
| 工具类型/特性 | PIC32, PIC24E, dsPIC33E | 电路数 | PIC32 |
| 芯片组制造商 | :Microchip | 支持MCU系列 | :PIC32 |
| 适用产品/相关产品 | PIC32MX Starter Kit | ||
文档与媒体
相关型号
SST25VF016B-50-4I-S2AF
microchip
Flash Serial-SPI 3.3V 16Mbit 2M x 8bit 8ns 8-Pin SOIC Serial Flash 2Mx8 SO8 IC FLASH 16MBIT 50MHZ 8SOIC 16M FLASH MEMORY, SPI, SOIC8 Flash memory 2 M x 8 Bit SOIC-8, SST25VF016B-50-4I-S2AF, Microchip Microchip 闪存, 16Mbit (2M x 8 位), 串行接口, 8ns, 2.7 → 3.6 V, 8针 SOIC封装 Flash Memory 16Mbit 50MHz
DM320001
microchip
PIC32 Starter Kit Development Boards & Kits - PIC / DSPIC PIC32 Starter Kit PIC32 STARTER KIT KIT EVAL PIC32 STARTER DM320001, Development Kit, 32 bit, PIC32, 3 LEDs, 3 User Switches, 80MHz PIC32, USB Cable PIC32, W / PROGRAMMER, STARTER KIT PIC32MXStarterKit Development kit: Microchip; PIC32MX360F512L Starter kit PC hosted mode, DM320001, Microchip

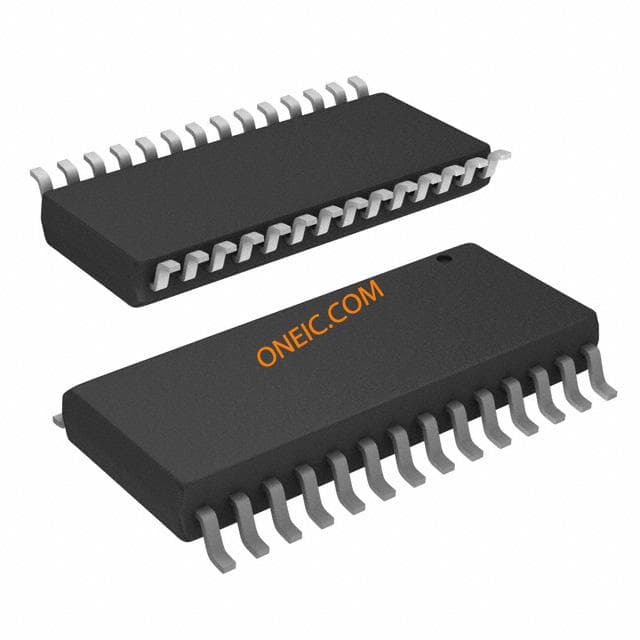

PIC32MX110F016B-I/SO
