点击放大查看

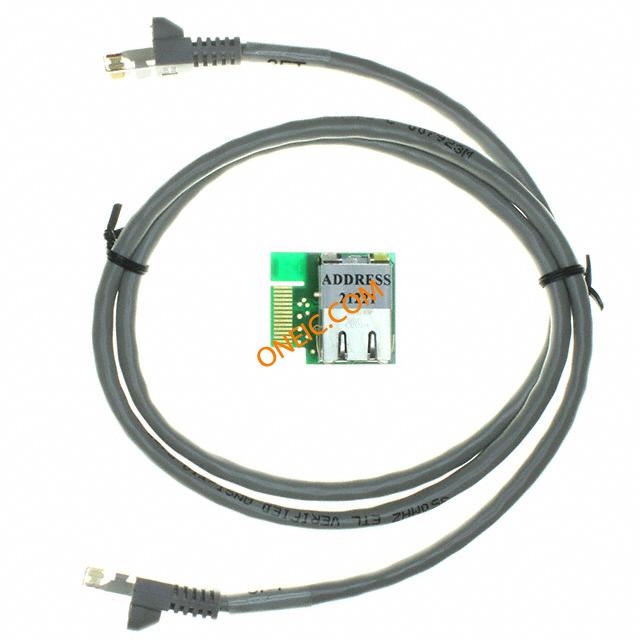

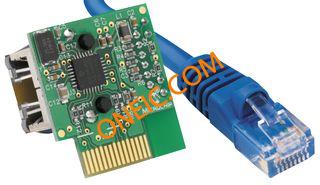

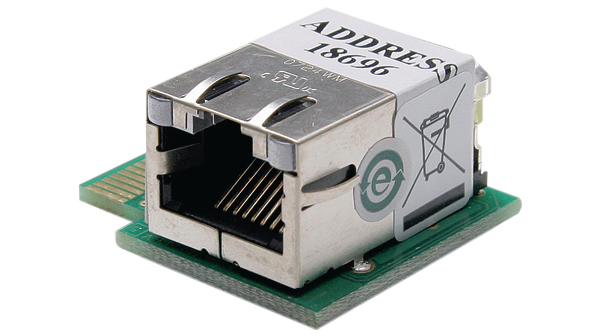

AC164123
| 制造商 | Microchip Technology Inc. |
| 描述 | Ethernet PICtail Plus Daughter Board Ethernet Development Tools PICtail Daughter Brd Ethernet Plus Ethernet PICtail Daughter Plus BOARD DAUGHTER ETH PICTAIL PLUS ENC28J60, ETHERNET, DAUGHTER BOARD ETHERNETPICTAILDAUGHTERPLUSBOARD Expansion board with Ethernet 10Base-T controller; ENC28J60 Ethernet PICtail Plus Daughter Board -, AC164123, Microchip |
| 分类 |
商业参数
| 最小起订量 | 4 | 产品 | Demonstration Boards |
| 单位包装 | 1 | 产品类别 | Ethernet Development Tools |
| 标准包装数量 | Boxed | 工厂包装数量 | 1 |
合规参数
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85423190 | 无铅定义 | RoHS-conform |
电气参数
| 核心类型 | :Communication & Networking | 接口 | Ethernet |
| 供电电压 | 3.3 V | 元件数量 | :(Not Applicable) |
机械参数
| 重量 | 0.25 | 连接器类型 | PICtail Plus |
产品信息
| 类型 | Development Kit | 内容 | Board, Cable |
| 嵌入式 | Yes, MCU, 16/32-Bit | 产品特性 | :IEEE 802.3 Compliant, 10BASE-T Ethernet, RJ-45 Female Ethernet Connector |
| 功能 | Ethernet PICtail pus dughter board | 套件类型 | :Communication & Networking |
| 匹配码 | AC164123 | 套件内容 | :Board |
| 主要用途 | Interface, Ethernet Control | 制造商全称 | :PICtail |
| 附件类型 | expansion board with Ethernet 10Base-T controller | 开发套件 | EVALBOARD |
| 单元数量 | 1 | 标准交期 | 6 weeks |
| 工具类型/特性 | ENC28J60 | 电路数 | ENC28J60 |
| 主要特性 | Ethernet Control Applications | 使用的IC/零件 | ENC28J60 |
| 芯片组制造商 | :Microchip | 次要特性 | Requires PICtail™ |
| 应用细节 | :Ethernet | 适用产品/相关产品 | DM240001 |
环境参数
| 工作温度 | + 85 C | ||
