点击放大查看

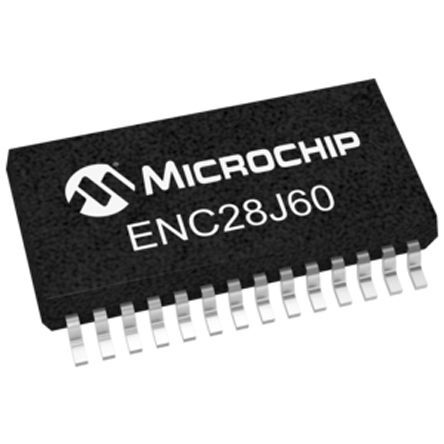

ENC28J60-I/SS
| 制造商 | Microchip Technology Inc. |
| 描述 | Ethernet CTLR Single Chip 10Mbps 3.3V 28-Pin SSOP Tube ETHERNET CONTROLLER with SPI-In IC ETHERNET CTRLR W/SPI 28SSOP ENC28J60-I/SS, Ethernet Controller 10Mbit/s MII, MIIM, Serial-SPI, 3.3V, 28-Pin SSOP Ethernet ICs 8 KB RAM MAC&PHY Ethernet Controller CONTROLLER, ETHERNET, W/ SPI, 28SSOP Stand-AloneEthernetController,SSOP208mil,-40Cto+85c,tube Ethernet controller; 10Base-T; SPI; TSSOP28; 3.1÷3.6V Ethernet controller SSOP-28, ENC28J60-I/SS, Microchip 10MBps 以太网控制器, MII，MIIM, 串行 - SPI, 3.3 V, 28针 SSOP封装 |
| 分类 |
商业参数
| 最小起订量 | 1 | 产品 | Ethernet Controllers |
| 单位包装 | 27 | 其他名称 | ENC28J60ISS |
| 产品类别 | Ethernet ICs | 标准包装数量 | Rail / Tube |
合规参数
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 标准 | IEEE 802.3 | 海关税号 | 85411000 |
| 无铅定义 | RoHS-conform | ||
电气参数
| 转速 | 25MHz | 以太网 | 10/100/1000Base-T |
| RAM 大小 | 8192 B | 数据速率 | 10 Mbps |
| 接口 | MII|MIIM | 输出电流 | 160mA |
| 供电电压 | 3.3 V | 数字I/O线数 | 3,14-3,45 |
| 最小供电电压 | 3.1...3.6V | ||
机械参数
| 重量 | 0.000426 | 包装方式 | Tube |
| 安装类型 | Surface Mount | 安装样式 | SMD/SMT |
| 引脚数 | :28 | 封装形式 | 28SSOP |
| 材料表面处理 | :MSL 1 - Unlimited | 包装数量 | 47 |
| 供应商器件封装 | 28-SSOP | ||
产品信息
| SPG | 47 | 类型 | Stand Alone Ethernet Controller |
| 产品特性 | MAC / PHY | 功能 | Controller |
| 协议 | Ethernet | 匹配码 | ENC28J60-I/SS |
| 通信接口 | Full Duplex|Half Duplex | 端口数 | :1 |
| 单元数量 | 1 | 标准交期 | 24 weeks |
| 网络技术 | 10BaseT | 其他规格 | Yes |
环境参数
| 工作温度 | -40°C ~ 85°C | ||
