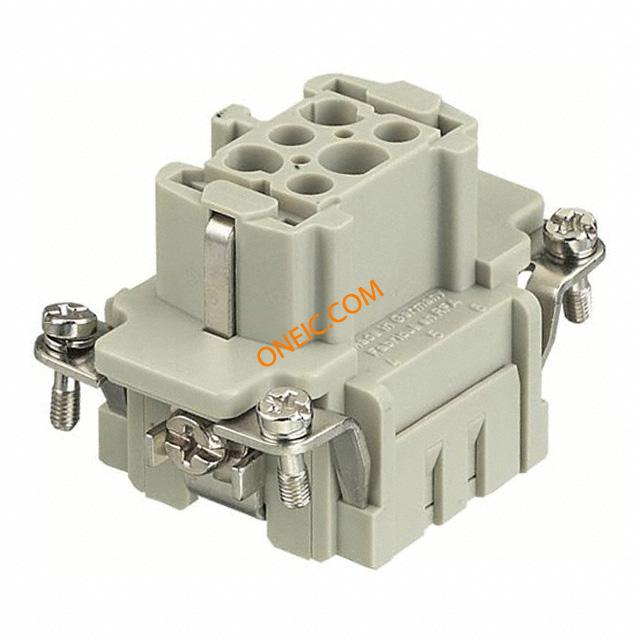

09330062702

制造商	HARTING Technology Group
描述	HAN 6E INSERT FEMALE CRIMP Han E 6P+E insert for socket contact,16A Heavy Duty Power Connectors HAN E 6P FEMALE CRMP ORDER CONTACTS SEP Han6EInsertFemaleCrimp HanE6P+Einsertforsocketcontact,16A Connector: HAN; female; Han E; PIN:6; 6+PE; size 6B; w/o terminals Han E Female Insert- Crimp: Han 6E Insert Female Crimp Harting Han E 系列 2行 6针 6P+E极插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 09 09-33-006-2702 2702 33	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Compliant

材料阻燃等级

UL94 V-0

电气参数

额定电压	600V	最大额定电流	16A
连接器类型 - 电压输入	w/o terminals

机械参数

尺寸	6B	颜色	Gray
重量	0.04 kg	包装方式	Bulk
方向	直	重量（g）	41.18182
触头类型	Han®	安装类型	crimped
连接器类型	Insert without Contacts	排数	2
封装形式	size 6B	插入力	Female
壳体材料	Polycarbonate (PC)	包装数量	4
端接样式	Crimp	触点数	7
位数	6+Ground	第一连接器安装特征	6+PE

产品信息

SPG	4	类型	CONNECTORS
连接器性别	Female	系列	Han-E
极性	6P+E	CAD图纸	3D CAD Model
产品子类型	Housings	适配器系列	Han E
单元数量	1

环境参数

工作温度

-40°C ~ 125°C
