点击放大查看

19628061290

制造商	HARTING Technology Group

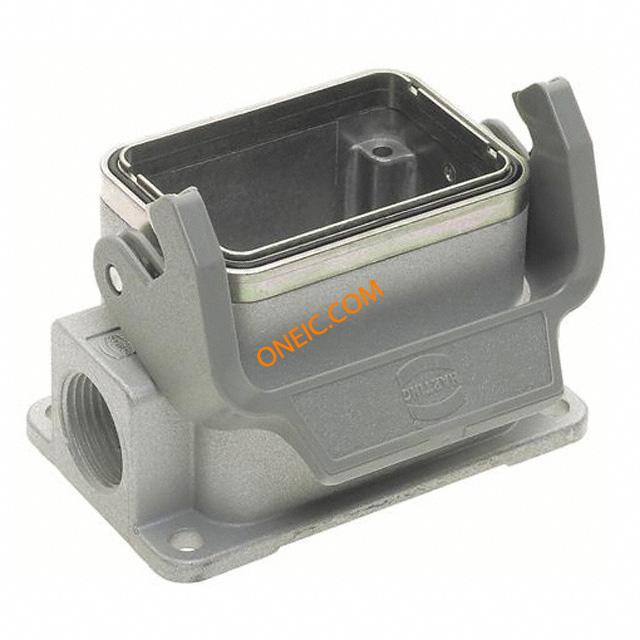

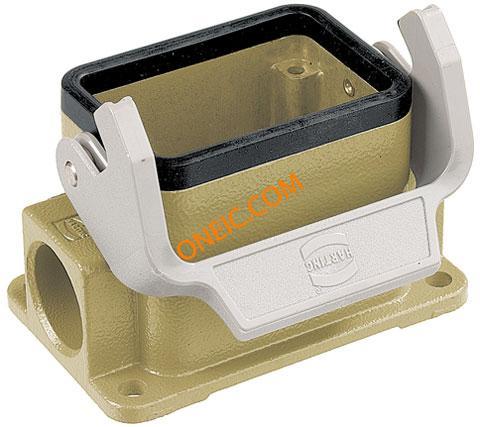

描述	HAN EMC/B 6 BASE SURFACE 1LEV Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 6B 2 SIDE ENTRY HanEMC/B6BaseSurface1Lev.2xM20 Han EMC Housings: Han EMC/B 6 Base Surface 1Lev. 2xM20 Harting HAN EMC/B 系列电源连接器 , 表面安装
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3204	零件号别名	019 019-62-806-1290 1290 62 806
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	1

合规参数

RoHS

RoHS Compliant

机械参数

尺寸	6B	包装方式	Bulk
螺纹尺寸	M20	安装类型	表面安装
连接器类型	Base - Box Mount	外壳涂层	EMC Coating
壳体材料	Aluminum, Die Cast	尺寸/外形	3.228" L x 2.047" W x 2.020" H (82.00mm x 52.00mm x 51.30mm)

产品信息

类型	CONNECTORS	样式	Side Entry
系列	HAN EMC/B	产品特性	Feed Through
产品子类型	Receptacle Housings	锁定位置	Side Clip on Base Bottom
基础产品编号	1962

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
