点击放大查看

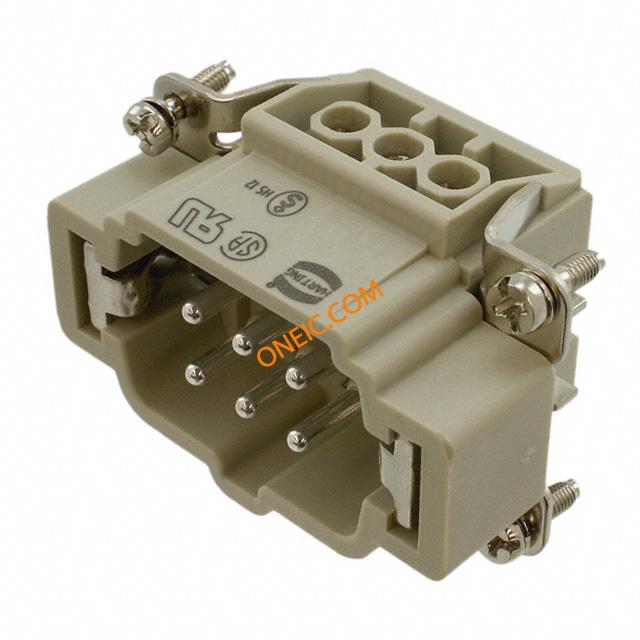

09330062601

制造商	HARTING Technology Group
描述	Conn Housing M 6Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN E 6P MALE SCREW SCREW TERMINATION HAN E 06 POS. M INSERT SCREW Han(R) E 6P+E plg insert,16A 400-500Vac Insert;500V;16A;Male;6;RoHSCompliant;6BProductSize Connector: HAN; male; E; PIN:6; 6+PE; size 6B; screw terminal; 16A Han E Male Insert: Han E 06 Position M Insert Screw Harting Han E 系列 2行 7针插头电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 09 09-33-006-2601 2601 33	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	600V	最大额定电流	16A
最小输入电压	500V

机械参数

尺寸	6B	颜色	Gray
深度	32.4	高度	34
重量	0.05 kg	包装方式	Bulk
方向	直	重量（g）	49.00000
安装类型	Straight	连接器类型	Insert
接触镀层	Silver	排数	2
封装形式	size 6B	插入力	Male
触头材料	Copper Alloy	壳体材料	Polycarbonate (PC)
总长度	51	包装数量	5
尺寸/外形	6B	端接样式	Screw
触点数	6Signal/1Ground	位数	6+Ground
镀层厚度（通用）	3µm	绝缘材料 - 材质	polycarbonate
线规或范围 - AWG	14	线规或范围 - mm²	1...2.5mm2
触点材料 - 镀层	silver plated	第一连接器安装特征	6+PE

产品信息

SPG	5	类型	Housing
连接器性别	M	系列	Han-E
CAD图纸	3D CAD Model	产品子类型	Housings
适配器系列	E	单元数量	1

环境参数

机械寿命

500cycles

工作温度

-40°C ~ 125°C
