点击放大查看

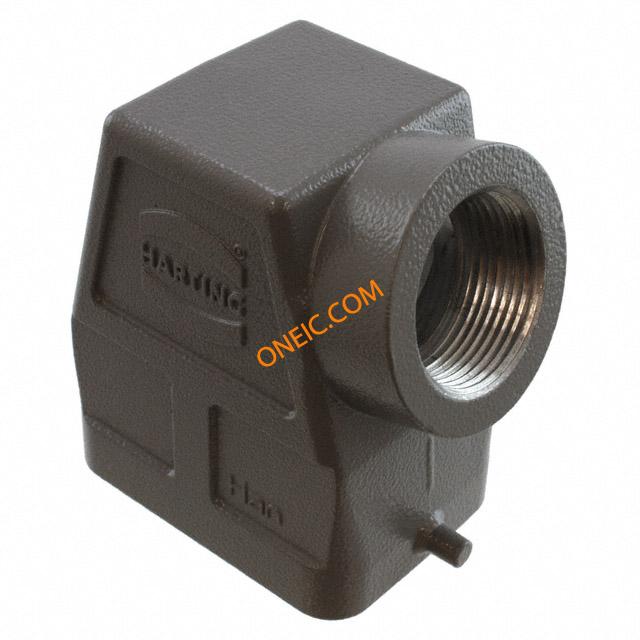

09300060543

制造商	HARTING Technology Group
描述	Connector Accessories 11 POS Hood Metal Heavy Duty Power Connectors HAN 6B PG29 SIDE ENT METAL HOOD CONN HAN 6B HOOD SIDE PG29 High type side entry hood,PG29 size 6B Hood;Metal;74mm;43mm;72mm;Pg29CableEntry Han B Hoods: Han B Hood Side Entry HC 2 Pegs PG 29 Harting Han B 系列侧入护罩
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

其他名称	1195-3464	零件号别名	006 0543 09 09-30-006-0543 30
产品类别	Heavy Duty Power Connectors	标准包装数量	1
工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	6B	深度	43
包装方式	Bulk	方向	侧入
螺纹尺寸	PG29	外壳颜色	Gray
连接器类型	Hood	外壳涂层	Powder Coated
安装样式	Side	插入力	Female
壳体材料	Aluminum, Die Cast	尺寸/外形	2.362" L x 1.693" W x 2.835" H (60.00mm x 43.00mm x 72.00mm)
端接样式	Cable	触点数	10

产品信息

类型	Hood	样式	Side Entry
系列	Han EE	CAD图纸	3D CAD Model
产品子类型	Hoods	锁定位置	Side Clip on Base Bottom
附件类型	Hood

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
