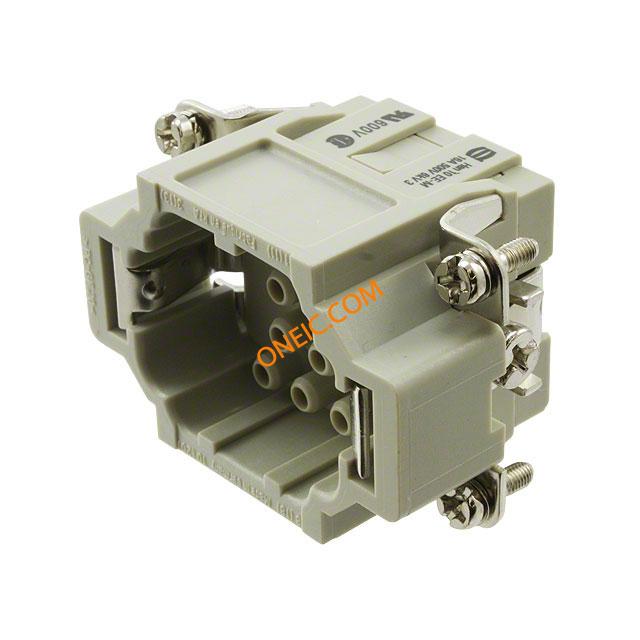

09320103001
| 制造商 | |
| 描述 | Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P M CRIMP ORDER CONTACTS SEP HAN EE 10 POS INSERT MALE CRIMP HanEE10Pos.InsertMaleCrimp Connector: HAN; male; Han EE; PIN:10; 10+PE; size 6B; w/o terminals Harting Han EE 系列 10针 插头 电源连接器 |
| 分类 |
商业参数
| 零件号别名 | 010 09 09-32-010-3001 3001 32 | 产品类别 | Heavy Duty Power Connectors |
| 标准包装数量 | 1 | 工厂包装数量 | 10 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 600V | 最大额定电流 | 16A |
| 最小输入电压 | 500V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 尺寸 | 6B | 颜色 | Gray |
| 深度 | 33.3 | 重量 | 0.04 kg |
| 包装方式 | Bulk | 导线线规 | 12-20 |
| 重量（g） | 43.41667 | 触头类型 | Han® |
| 安装类型 | Straight | 连接器类型 | Insert without Contacts |
| 接触镀层 | Silver | 排数 | 4 |
| 封装形式 | size 6B | 插入力 | Male |
| 壳体材料 | Polycarbonate | 总长度 | 51 |
| 包装数量 | 1 | 尺寸/外形 | 6B |
| 端接排数 | 压接 | 端接样式 | Crimp |
| 触点数 | 11 | 位数 | 10+Ground |
| 线规或范围 - AWG | 20-12 | 第一连接器安装特征 | 10+PE |
产品信息
| SPG | 1 | 类型 | Housing |
| 连接器性别 | M | 系列 | Han-EE |
| 产品子类型 | Housings | 适配器系列 | Han EE |
| 单元数量 | 1 | 基础产品编号 | 932 |
环境参数
| 工作温度 | -40°C ~ 125°C | ||
相关型号
09330006127
HARTING
Heavy Duty Power Connectors MALE INSERT STD SILVER PLATED Contact PIN Crimp ST Cable Mount D-Sub Contacts MALE INSERT STD SILVER PLATED HAN E M CRIMP CONTACT AG 26 AWG Han E Male Crimp Contact Ag 26AWG HAN10AWG26-22SilverPlatedMaleContact Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 400 V, 适用于大负荷电源连接器
09330006119
Harting Technology Group

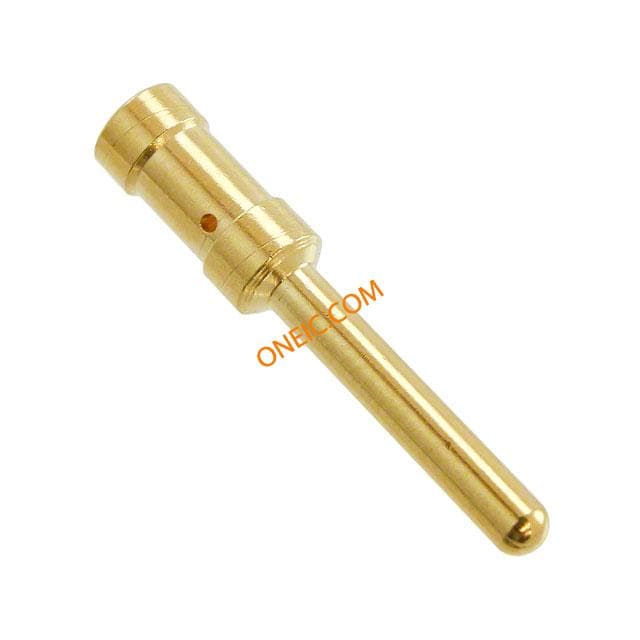

Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors MALE INSERT STD GOLD PLATED HAN E M CRIMP CONTACT AU WG 4MM HanEMCrimpContactAuWG4mm Harting Han E 系列 公插 触点
19300060446
Harting Technology Group
Connector Accessories 11 POS Hood Metal Heavy Duty Power Connectors HAN 6B M25 TOP ENTR METAL HOOD HOOD TOP HC 2 PEGS M25 HoodTopEntryHC2PegsM25 Enclosure: for rectangular connectors; Han; size 6B; for cable Han B Hoods: Han B Hood Top Entry HC 2 Pegs M25 Harting Han B 系列 顶入 电源连接器
09300060302
Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 6B BULKHEAD MNT 1 LEVER METAL W/CVR HAN B BASE PANEL 1 LEVER Low type panel mount housing w/cover,6B BULKHEAD HOUSING, SIZE 6B, METAL HOUSING,HAN6E,PANELMOUNT,SINGLELEVER Enclosure: for Han connectors; Han; flange (4 holes), on panel Han B Housings: Han B Base Panel 1 Lever Thermoplastic C Harting Han B 系列 电源连接器
09628060301
Harting Technology Group
Connector Accessories Bulkhead Housing Heavy Duty Power Connectors BULKHEAD MOUNTING HAN 6B 1 LVR LCKING HAN EMC/B 6 BASE PANEL Bulkhead housing Han 6B EMC Han EMC Housings: Han EMC/B 6 Base Panel Harting Han B 系列 电源连接器
19300061440
Harting Technology Group
Connector Accessories 2 POS Hood Metal Heavy Duty Power Connectors HAN 6B M20 TOP ENTR METAL HOOD HAN 6 B HOOD TOP LC 2 PEGS-M20 Low type top entry hood,M20 size 6B HOOD, 6B, TOP ENTRY, M20, LC HAN6BPG16TopEntryMetalHood Enclosure: for Han connectors; Han; size 6B; for cable; for latch Han B Hoods: B Hood Top Entry LC 2 Pegs-M20 Harting Han B 系列 顶入 电源连接器

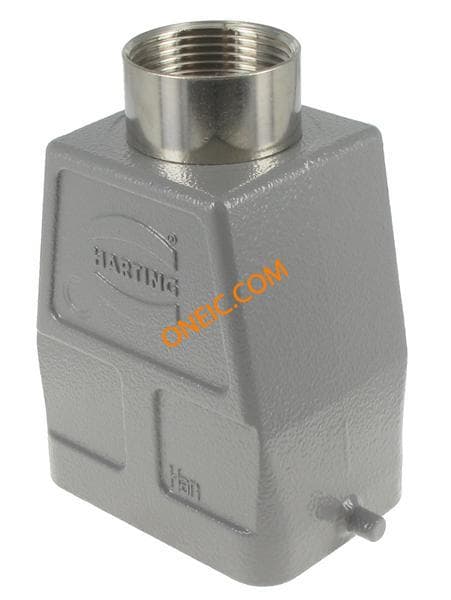

09300060442
Harting Technology Group
Connector Accessories Hood Top Entry Heavy Duty Power Connectors HAN 6B PG21 TOP ENTR METAL HOOD HAN B HOOD TOP HC 2 PEGS PG 21 High type top entry hood,PG21 size6B Hood;Metal;74mm;43mm;87mm;Pg21CableEntry Enclosure: for Han connectors; Han; size 6B; for cable; for latch Han B Hoods: Han B Hood Top Entry HC 2 Pegs PG 21 Harting Han B 系列 顶入 护罩
09330006114
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN 16A MALE AWG18 SILVER PLATED HAN E M CRIMP CONTACT AG 18AWG Han E Male Crimp Contact Ag 0.75mm 18AWG CrimpPowerContact,SilverPlated,18AWG,Male Contact; male; 0.75mm2; Han E; silver plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Ag 0.75 mm/18AWG Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 400 V, 适用于大负荷电源连接器
09320103101
Harting Technology Group
Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P F CRIMP ORDER CONTACTS SEP HAN EE 10POS INSERT FEMALE CRIMP HanEE10Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:10; 10+PE; size 6B; crimped; 16A Harting Han EE 系列 4行 10针 10P+E极 插座 插片
09330006116
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN E MALE AWG 16 GOLD PLATED CRIMP HAN E M CRIMP CONTACT AU 1.5 MM Han E Male Crimp Contact Au WG 1.5mm Connector; Male; Gold; 25 mm CrimpPowerContact,GoldPlated,16AWG,Male Contact; male; 1.5mm2; Han E; gold plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Au WG 1.5 mm Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 830 V, 适用于大负荷电源连接器
09330006104
Harting Technology Group
Contact PIN Crimp ST Cable Mount Heavy Duty Power Connectors HAN E MALE AWG 16 SILVER PLATED CRIMP HAN E M CRIMP CONTACT AG 16AWG Han-Com(R) crimp male contact,1.5sq.mm Conn Contact M 1Power POS Crimp ST Cable Mount CrimpPowerContact,SilverPlated,16AWG,Male Contact; male; 1.5mm2; Han E; silver plated; crimped; 16A; 1mΩ Han E Contacts Male: Han E M Crimp Contact Ag WG 16AWG Harting Han Contacts 系列 公插 压接触点 , 额定电流 16A/ 500 V, 适用于大负荷电源连接器

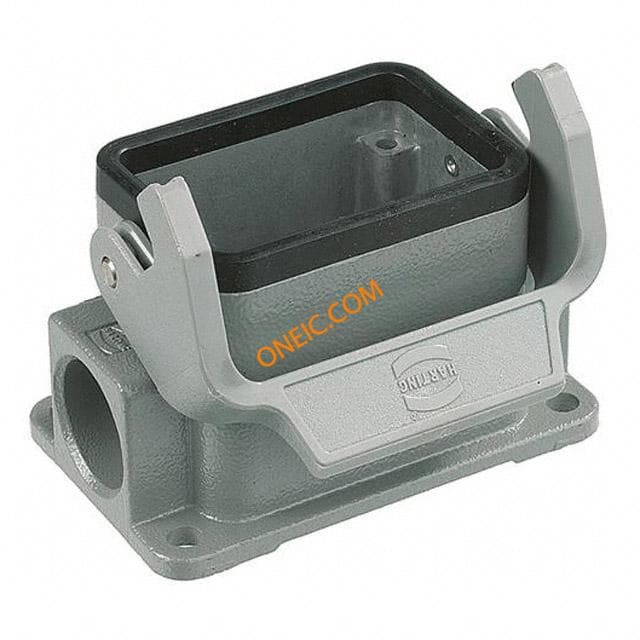

09300061251
Harting Technology Group
Connector Accessories 2 POS Housing Metal Heavy Duty Power Connectors HAN 6B SURFACE MOUNT METAL 1 SIDE ENTRY HAN B BASE LC 1 LEVER 1 PG Low type surface housing,1xPG16 size 6B Connector,SurfaceMounted,1SideEntries Enclosure: for Han connectors; Han; size 6B; with lock; closed Han B Housings: Han B Base Surface LC 1 Lever 1 Entry PG Harting Han B 系列 电源连接器
19300060547

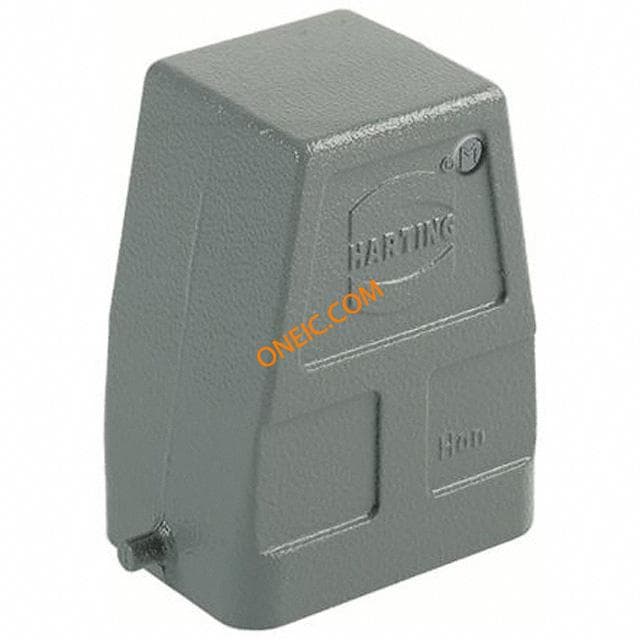

Harting Technology Group
Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 6B M32 SIDE ENT METAL HOOD HAN B HOOD SIDE HC 2 PEGS M32 High type side entry hood,M32 size6B HANBHoodSideEntryHC2Pegs Enclosure: for rectangular connectors; Han; size 6B; for cable Han B Hoods: Han B Hood Side Entry HC 2 Pegs M32 Harting Han B 系列 侧入 电源连接器
09300061750
Harting

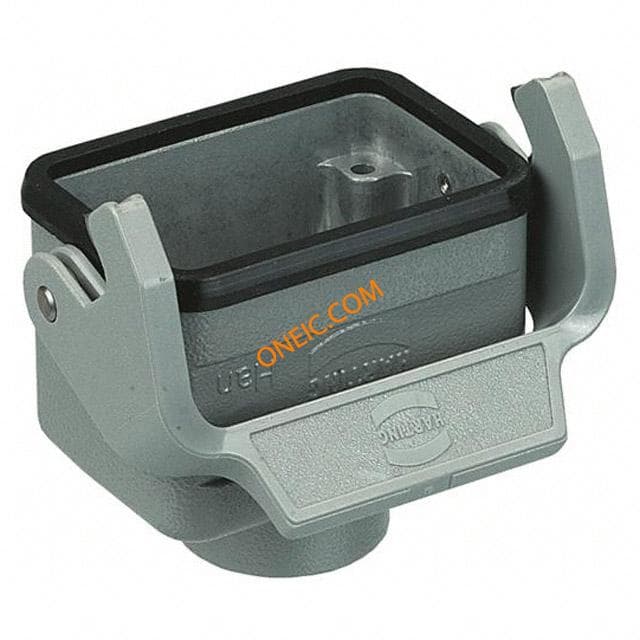

HAN B HOOD COUPLER LC 1 LEVER Heavy Duty Power Connectors 6B CBL TO CBL PG13.5 METAL 1 LEVER Low type coupling hood,PG13.5 size 6B HOODCOUPLERSIZE6B Han B Housings: Han B Hood Coupler LC 1 Lever PG 13.5 Harting Han B 系列 电源连接器
19300060291
Harting
HAN 6B-ASG2-LB-M25 Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 6B 2 SIDE ENTRY Han6B-asg2-LB-M25 Han B Housings: Han 6B-asg2-LB-M25 Harting Han B 系列 电源连接器 , 表面安装
19300061255
Harting
HAN B BASE SURFACE LC 1 LEVER Heavy Duty Power Connectors 6B SURFACE MOUNT 1 LEVER METAL Han6B-asg1-LB-K-M20 Enclosure: for Han connectors; Han; size 6B; with lock; M20; IP65 Han B Housings: Han B Base Surface LC 1 Lever Harting Han B 系列 电源连接器 , 表面安装
19300061295
Harting
HAN B BASE SURFACE LC 1 LEVER Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 6B 2 SIDE ENTRY HanBBaseSurfaceLC1Lever2xM20 Han B Housings: Han B Base Surface LC 1 Lever 2 x M20 Harting Han B 系列 电源连接器 , 表面安装
19628061290
Harting
HAN EMC/B 6 BASE SURFACE 1LEV Heavy Duty Power Connectors SURFACE MOUNTING HSG HAN 6B 2 SIDE ENTRY HanEMC/B6BaseSurface1Lev.2xM20 Han EMC Housings: Han EMC/B 6 Base Surface 1Lev. 2xM20 Harting HAN EMC/B 系列 电源连接器 , 表面安装
19400060511
Harting

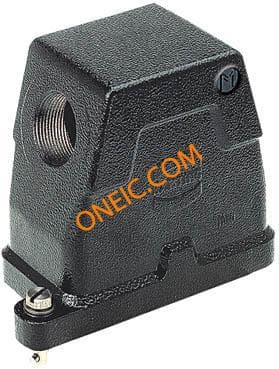

HAN 6 HPR HOOD SIDE M25 SCREW Heavy Duty Power Connectors METAL HOOD HAN 6HPR SCW LCKING IP68 side entry hood,Size 6B M25 thread Han HPR Hoods: Han 6 HPR Hood Side Entry M25 Screw lock Harting Han HPR 系列 侧入 电源连接器
