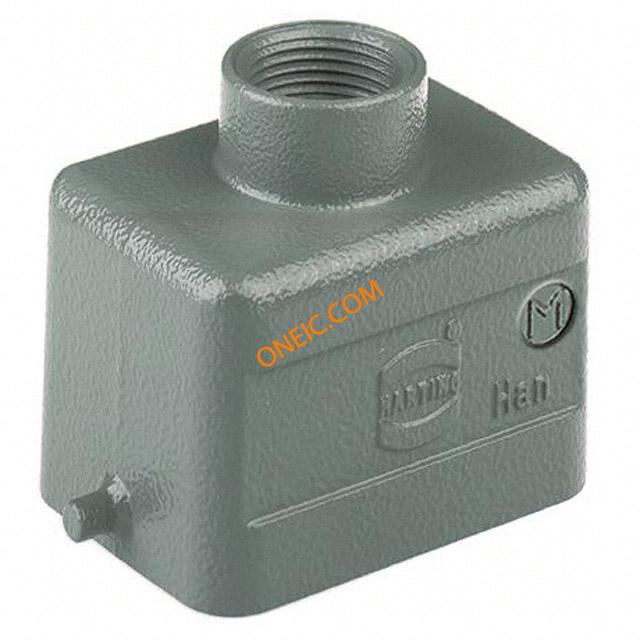

19300061440

点击放大查看

19300061440

制造商
HARTING Technology Group
描述
Connector Accessories 2 POS Hood Metal Heavy Duty Power Connectors HAN 6B M20 TOP ENTR METAL HOOD HAN 6 B HOOD TOP LC 2 PEGS-M20 Low type top entry hood,M20 size 6B HOOD, 6B, TOP ENTRY, M20, LC HAN6BPG16TopEntryMetalHood Enclosure: for Han connectors; Han; size 6B; for cable; for latch Han B Hoods: B Hood Top Entry LC 2 Pegs-M20 Harting Han B 系列 顶入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

其他名称1195-3094零件号别名006 019 019-30-006-1440 1440 30
产品类别Heavy Duty Power Connectors标准包装数量1
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantSVHC:No SVHC (20-Jun-2013)
欧盟RoHSCompliant海关税号85369010

电气参数

工作电压:250V最大额定电流32 A

机械参数

尺寸6B宽度:43mm
高度43长度:73mm
重量0.1材料（通用）:Metal
包装方式Bulk出线方向:Top
方向straight螺纹尺寸M20
重量（g）102.00000外壳颜色Gray
衬套螺纹M20连接器类型Hood
外壳涂层Powder Coated安装样式Straight
封装形式size 6B插入力Female
锁定特性for latch本体材料:Metal
壳体材料Aluminum, Die Cast总长度73
包装数量3尺寸/外形2.362" L x 1.693" W x 2.106" H (60.00mm x 43.00mm x 53.50mm)
连接器颜色:Powder Coated, RAL 7037 Grey触点数2
外壳尺寸-插件:6B供应商器件封装for Han connectors
外壳与棱镜材料aluminium alloy

产品信息

SPG3类型Hood
样式Top Entry系列Han Modular
CAD图纸3D CAD Model产品子类型Housings
锁定位置Side Clip on Base Bottom附件类型Hood
适配器系列Han单元数量1
适用产品/相关产品:Standard Han Connectors

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
