点击放大查看

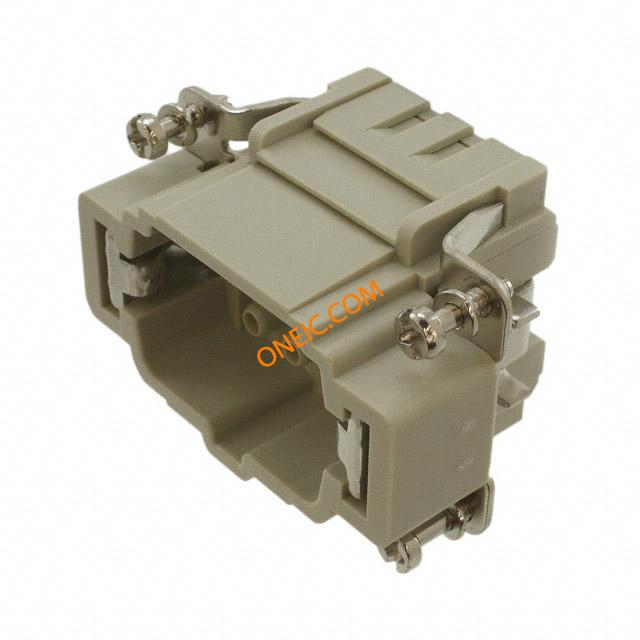

09330062602

制造商	HARTING Technology Group
描述	Conn Housing M 6Signal/1Ground POS Crimp ST HAN 6E INSERT MALE CRIMP Heavy Duty Power Connectors HAN E 6P MALE CRIMP ORDER CONTACTS SEP HAN6EINSERTMALECRIMP Connector: HAN; male; Han E; PIN:6; 6+PE; size 6B; w/o terminals Han E Male Insert-Crimp: Han 6E insert male crimp
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 09 09-33-006-2602 2602 33	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 V-0

电气参数

额定电压	600V	最大额定电流	16A
最小输入电压	500V	连接器类型 - 电压输入	w/o terminals

机械参数

尺寸	6B	颜色	Gray
深度	33.3	高度	34
重量	0.04 kg	包装方式	Bulk
重量（g）	41.20000	触头类型	Han®
安装类型	Straight	连接器类型	Insert without Contacts
排数	2	封装形式	size 6B
插入力	Male	壳体材料	Polycarbonate (PC)
总长度	51	尺寸/外形	6B
端接样式	Crimp	触点数	6Signal/1Ground
位数	6+Ground	线规或范围 - AWG	20-12
第一连接器安装特征	6+PE

产品信息

类型	Housing	连接器性别	M
系列	Han-E	产品子类型	Housings
适配器系列	Han E	单元数量	1

环境参数

工作温度

-40°C ~ 125°C
