点击放大查看

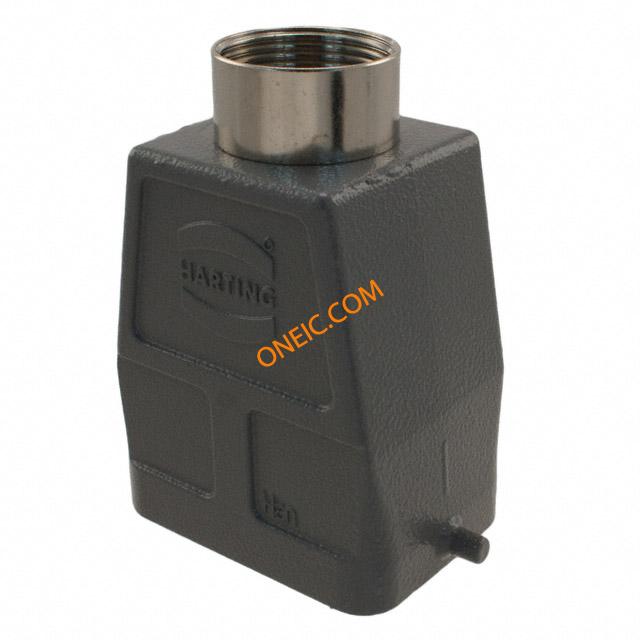

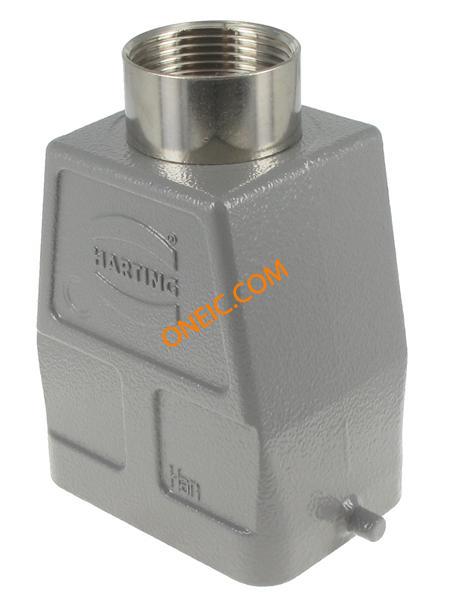

09300060442

制造商	HARTING Technology Group
描述	Connector Accessories Hood Top Entry Heavy Duty Power Connectors HAN 6B PG21 TOP ENTR METAL HOOD HAN B HOOD TOP HC 2 PEGS PG 21 High type top entry hood,PG21 size6B Hood;Metal;74mm;43mm;87mm;Pg21CableEntry Enclosure: for Han connectors; Han; size 6B; for cable; for latch Han B Hoods: Han B Hood Top Entry HC 2 Pegs PG 21 Harting Han B 系列顶入护罩
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 0442 09 09-30-006-0442 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

机械参数

尺寸	6B	深度	87
高度	43	重量	0.16 kg
包装方式	Bulk	方向	straight
螺纹尺寸	PG21	重量（g）	163.50000
外壳颜色	Gray	安装类型	on cable
衬套螺纹	PG21	连接器类型	Hood
外壳涂层	Powder Coated	安装样式	Straight
封装形式	size 6B	锁定特性	for latch
壳体材料	Aluminum, Die Cast	总长度	74
尺寸/外形	2.362" L x 1.693" W x 3.425" H (60.00mm x 43.00mm x 87.00mm)	端接样式	Screw
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy

产品信息

类型	Hood	样式	Top Entry
系列	Han Modular	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09370009946

HARTING

Heavy Duty Power Connectors HAN M 6 GASKET ON BOTTOM HAN M 6 GASKET (ON BOTTOM) Harting HAN M 系列衬垫

¥145.3800

详情

09160243001

Harting Technology Group

Conn Housing M 24Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 24P M CRIMP ORDER CONTACTS SEP HAN DD 24 POS. M INSERT CRIMP Insert; 250 V; 10 A; Male; 24; RoHS Compliant; Han DD Series; 6 B Product Size Insert;250V;10A;Male;24;RoHSCompliant;HanDDSeries;6BProductSize Connector: HAN; male; Han DD; PIN:24; 24+PE; size 6B; w/o terminals Han DD Male Insert: Han DD 24 Position M Insert Crimp

¥126.8400

详情

09320103001

Harting Technology Group

Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P M CRIMP ORDER CONTACTS SEP HAN EE 10 POS INSERT MALE CRIMP HanEE10Pos.InsertMaleCrimp Connector: HAN; male; Han EE; PIN:10; 10+PE; size 6B; w/o terminals Harting Han EE 系列 10针插头电源连接器

¥49.6547

详情

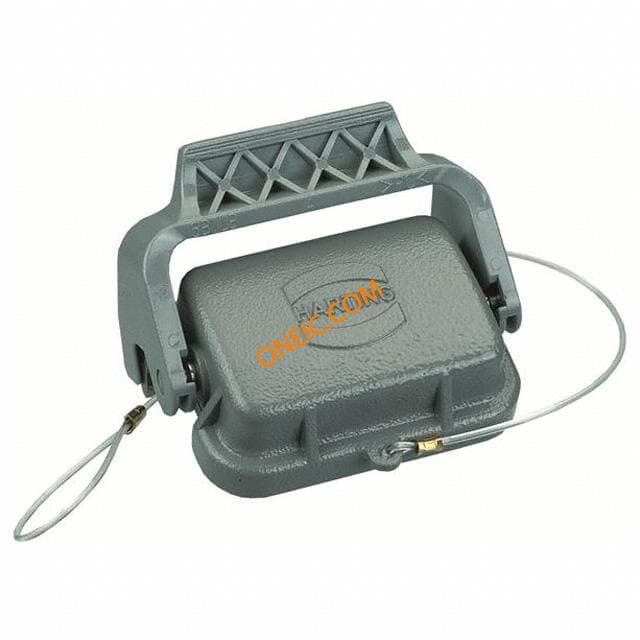

09300065423

Harting Technology Group

Connector Accessories Cover Heavy Duty Power Connectors PROTECTION COVER HAN 6B 1 LVR LCKING HAN B PROTECT COVER DIE CAST HAN B Protective Cover Die Cast for Hood PG HANBProtectiveCoverDieCastforHoodPG Protection cover; Han; size 6B; with lock; metal Han B Accessories: Han B Protect Cover Die Cast for Hood PG Harting Han B 系列 10P+E 保护盖 , PG13.5螺纹, 适用于大负荷电源连接器

¥172.5465

详情

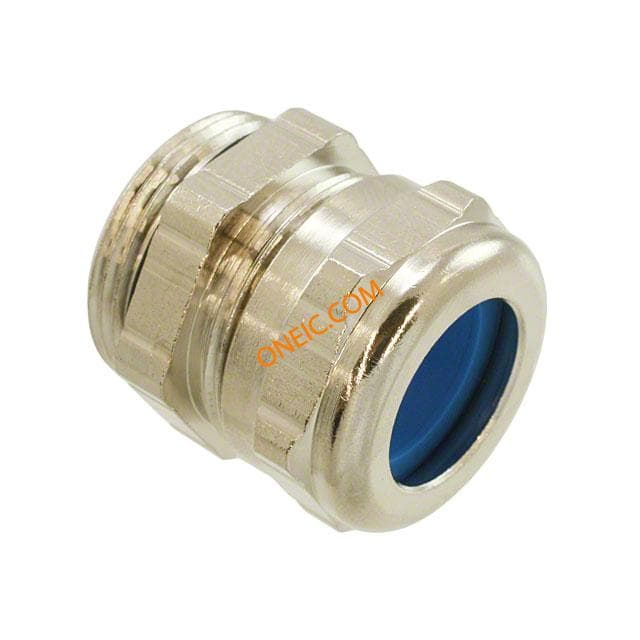

09000005093

Harting Technology Group

Cable Accessories Cable Gland Blue Heavy Duty Power Connectors UNI SEAL PG21 BLUE 14-18mm CABLE DIA CONN UNI SEAL BLUE PG 21 Accessory Universal Seal Blue (PG 21) min 14 max 18 AccessoryUniversalSealBlue(PG21)min14max18 Cable Glands metal: Acces. Uni Seal Blue PG 21 min 14 max 18 Harting IP68 蓝色金属电缆固定头 , 14mm 至 18mm电缆直径, PG21螺纹

¥164.0184

详情

09320123101

Harting Technology Group

Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针插座电源连接器

¥161.7000

详情

09330062601

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN E 6P MALE SCREW SCREW TERMINATION HAN E 06 POS. M INSERT SCREW Han(R) E 6P+E plg insert,16A 400-500Vac Insert;500V;16A;Male;6;RoHSCompliant;6BProductSize Connector: HAN; male; E; PIN:6; 6+PE; size 6B; screw terminal; 16A Han E Male Insert: Han E 06 Position M Insert Screw Harting Han E 系列 2行 7针插头电源连接器

¥32.3400

详情

09330062616

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN ES 6P MALE CAGE-CLAMP TERM HAN 6 ES-M INSERT Han ES 6P cageclamp plg insert,16A 500V Connector,MaleInsert,6Contacts Connector: HAN; male; Han ES; PIN:6; 6+PE; size 6B; spring clamp Han E Male Insert: Han 6 ES-M insert Harting Han ES 系列 2行 6 + E针插头电源连接器

¥36.6800

详情

09330062602

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST HAN 6E INSERT MALE CRIMP Heavy Duty Power Connectors HAN E 6P MALE CRIMP ORDER CONTACTS SEP HAN6EINSERTMALECRIMP Connector: HAN; male; Han E; PIN:6; 6+PE; size 6B; w/o terminals Han E Male Insert-Crimp: Han 6E insert male crimp

¥124.5080

详情

09320103101

Harting Technology Group

Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P F CRIMP ORDER CONTACTS SEP HAN EE 10POS INSERT FEMALE CRIMP HanEE10Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:10; 10+PE; size 6B; crimped; 16A Harting Han EE 系列 4行 10针 10P+E极插座插片

¥193.6571

详情

09330062716

Harting Technology Group

Conn Rectangular F 7 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 6P FEMALE CAGE-CLAMP TERM HAN 6 ES-FEMALE INSERT Han ES 6P cageclamp skt insert,16A 500V Han6ES-Femaleinsert Connector: HAN; female; Han ES; PIN:6; 6+PE; size 6B; spring clamp Han E Female Insert: Han 6 ES-Female insert Harting Han ES 系列 2行 7针插座电源连接器

¥164.0500

详情

09160243101

Harting Technology Group

Conn Housing F 24Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 24P F CRIMP ORDER CONTACTS SEP HAN DD 24 POS.F INSERT CRIMP Han(R) DD 24P+E socket insert,10A 250Vac HAN MODULE, RECEPTACLE, 24WAY, CRIMP PowerConnectorInsert;Female;24 Connector: HAN; female; Han DD; PIN:24; 24+PE; size 6B; UL94V-0 Han DD Female Insert: Han DD 24 PositionF Insert Crimp Harting Han DD 系列 4行 24针插座电源连接器

¥47.0400

详情

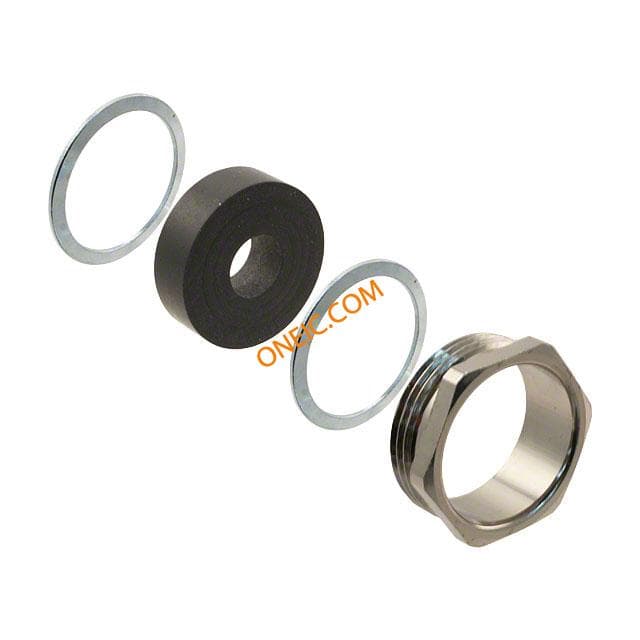

09000005016
