点击放大查看

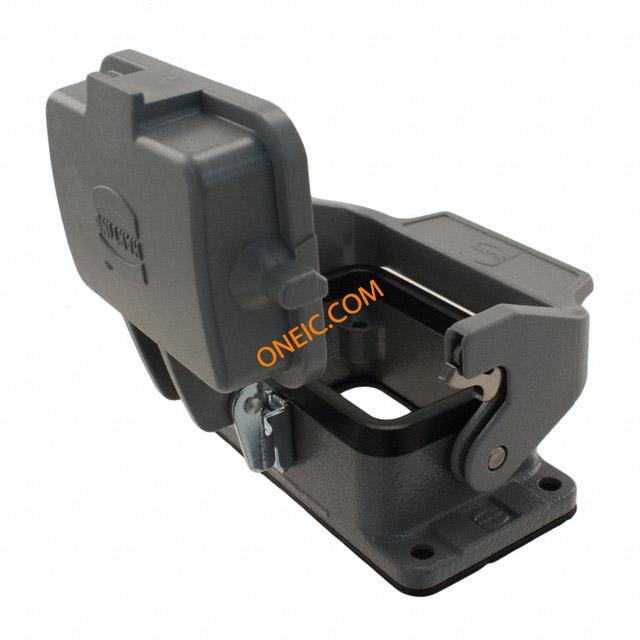

09300060302

制造商	HARTING Technology Group
描述	Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 6B BULKHEAD MNT 1 LEVER METAL W/CVR HAN B BASE PANEL 1 LEVER Low type panel mount housing w/cover,6B BULKHEAD HOUSING, SIZE 6B, METAL HOUSING,HAN6E,PANELMOUNT,SINGLELEVER Enclosure: for Han connectors; Han; flange (4 holes), on panel Han B Housings: Han B Base Panel 1 Lever Thermoplastic C Harting Han B 系列电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	006 0302 09 09-30-006-0302 30	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
海关税号	85369010

电气参数

连接器类型 - 电压输入

with cover

机械参数

尺寸	6B	深度	137.9
重量	0.113	包装方式	Bulk
重量（g）	117.20000	外壳颜色	Gray
安装类型	flange (4 holes), on panel	连接器类型	Base - Panel Mount with Cover
外壳涂层	Powder Coated	安装样式	Vertical
封装形式	size 6B	锁定特性	:1 Lever
本体材料	:Metal	壳体材料	Aluminum, Die Cast
总长度	80	包装数量	5
尺寸/外形	3.150" L x 1.709" W x 1.138" H (80.00mm x 43.40mm x 28.90mm)	外壳尺寸-插件	:6B
供应商器件封装	for Han connectors	外壳与棱镜材料	aluminium alloy
第一连接器安装类型	:Bulkhead

产品信息

SPG	5	类型	Hood
样式	Bottom Entry	系列	Han Modular
CAD图纸	3D CAD Model	产品子类型	Housings
锁定位置	Side Clip on Base Bottom	附件类型	Hood
适配器系列	Han	单元数量	1
适用产品/相关产品	:Han 6B

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C

相关型号

09370009946

HARTING

Heavy Duty Power Connectors HAN M 6 GASKET ON BOTTOM HAN M 6 GASKET (ON BOTTOM) Harting HAN M 系列衬垫

¥145.3800

详情

09160243001

Harting Technology Group

Conn Housing M 24Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 24P M CRIMP ORDER CONTACTS SEP HAN DD 24 POS. M INSERT CRIMP Insert; 250 V; 10 A; Male; 24; RoHS Compliant; Han DD Series; 6 B Product Size Insert;250V;10A;Male;24;RoHSCompliant;HanDDSeries;6BProductSize Connector: HAN; male; Han DD; PIN:24; 24+PE; size 6B; w/o terminals Han DD Male Insert: Han DD 24 Position M Insert Crimp

¥126.8400

详情

09320103001

Harting Technology Group

Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P M CRIMP ORDER CONTACTS SEP HAN EE 10 POS INSERT MALE CRIMP HanEE10Pos.InsertMaleCrimp Connector: HAN; male; Han EE; PIN:10; 10+PE; size 6B; w/o terminals Harting Han EE 系列 10针插头电源连接器

¥49.6547

详情

09320123101

Harting Technology Group

Conn Rectangular F 14 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN K 12+2P 16B FEM ORDER CONTACTS SEP HAN HSC 12 POS. FEMALE INSERT Insert; Industrial Power; Standard Material (Insert); Han Com Series Insert,IndustrialPower;StandardMaterial(Insert);HanComSeries Han HSC Female Insert: Han HsC 12 Position Female Insert Harting Han Com 系列 3行 12针插座电源连接器

¥161.7000

详情

09330062601

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN E 6P MALE SCREW SCREW TERMINATION HAN E 06 POS. M INSERT SCREW Han(R) E 6P+E plg insert,16A 400-500Vac Insert;500V;16A;Male;6;RoHSCompliant;6BProductSize Connector: HAN; male; E; PIN:6; 6+PE; size 6B; screw terminal; 16A Han E Male Insert: Han E 06 Position M Insert Screw Harting Han E 系列 2行 7针插头电源连接器

¥32.3400

详情

09330062616

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN ES 6P MALE CAGE-CLAMP TERM HAN 6 ES-M INSERT Han ES 6P cageclamp plg insert,16A 500V Connector,MaleInsert,6Contacts Connector: HAN; male; Han ES; PIN:6; 6+PE; size 6B; spring clamp Han E Male Insert: Han 6 ES-M insert Harting Han ES 系列 2行 6 + E针插头电源连接器

¥36.6800

详情

09330062602

Harting Technology Group

Conn Housing M 6Signal/1Ground POS Crimp ST HAN 6E INSERT MALE CRIMP Heavy Duty Power Connectors HAN E 6P MALE CRIMP ORDER CONTACTS SEP HAN6EINSERTMALECRIMP Connector: HAN; male; Han E; PIN:6; 6+PE; size 6B; w/o terminals Han E Male Insert-Crimp: Han 6E insert male crimp

¥124.5080

详情

09320103101

Harting Technology Group

Conn Housing M 11 POS Crimp ST Heavy Duty Power Connectors HAN EE 10P F CRIMP ORDER CONTACTS SEP HAN EE 10POS INSERT FEMALE CRIMP HanEE10Pos.InsertFemaleCrimp Connector: HAN; female; Han EE; PIN:10; 10+PE; size 6B; crimped; 16A Harting Han EE 系列 4行 10针 10P+E极插座插片

¥193.6571

详情

09330062716

Harting Technology Group

Conn Rectangular F 7 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN ES 6P FEMALE CAGE-CLAMP TERM HAN 6 ES-FEMALE INSERT Han ES 6P cageclamp skt insert,16A 500V Han6ES-Femaleinsert Connector: HAN; female; Han ES; PIN:6; 6+PE; size 6B; spring clamp Han E Female Insert: Han 6 ES-Female insert Harting Han ES 系列 2行 7针插座电源连接器

¥164.0500

详情

09160243101

Harting Technology Group

Conn Housing F 24Signal/1Ground POS Crimp ST Heavy Duty Power Connectors HAN DD 24P F CRIMP ORDER CONTACTS SEP HAN DD 24 POS.F INSERT CRIMP Han(R) DD 24P+E socket insert,10A 250Vac HAN MODULE, RECEPTACLE, 24WAY, CRIMP PowerConnectorInsert;Female;24 Connector: HAN; female; Han DD; PIN:24; 24+PE; size 6B; UL94V-0 Han DD Female Insert: Han DD 24 PositionF Insert Crimp Harting Han DD 系列 4行 24针插座电源连接器

¥47.0400

详情

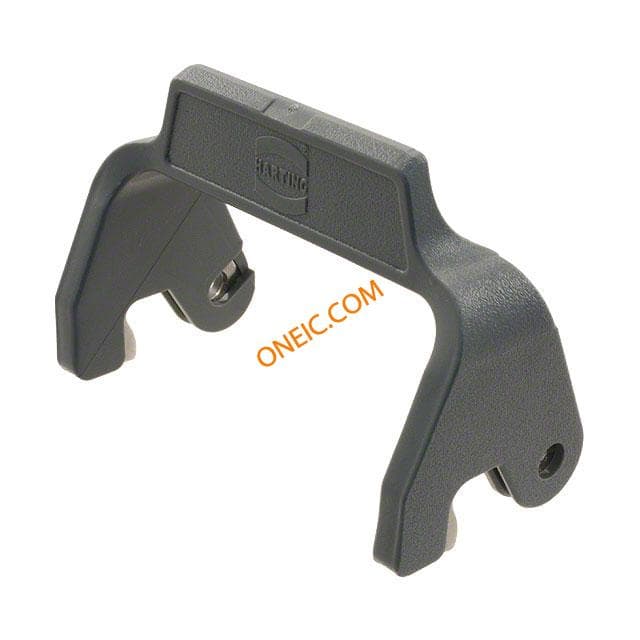

09000005222

Harting

HAN 6B THERMOPLASTIC LEVER Heavy Duty Power Connectors LOCKING LEAVER HAN6BTHERMOPLASTICLEVER Secondary lock; size 6B Harting Han Easy Lock 系列锁定杆 , 适用于大负荷电源连接器

¥62.3424

详情

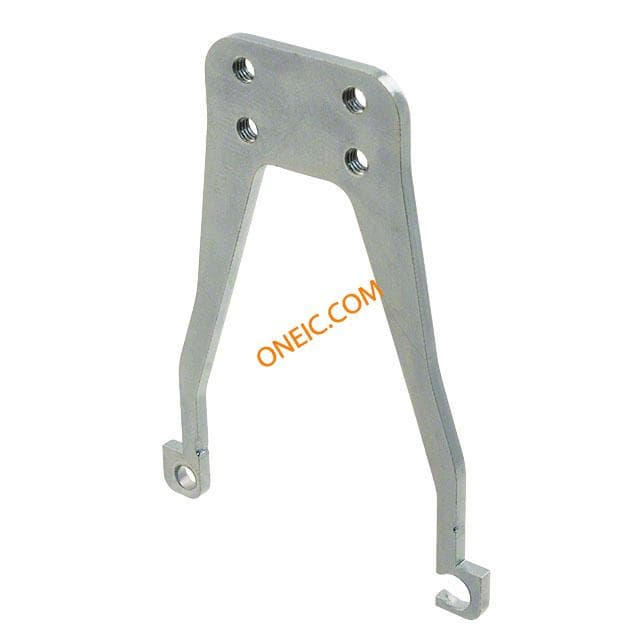

09000005256
