点击放大查看

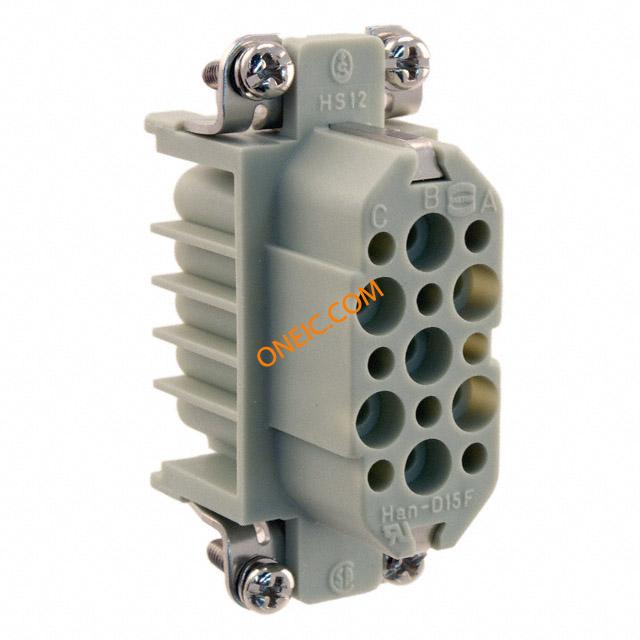

09210153101

制造商	HARTING Technology Group
描述	Conn Housing F 15 POS Crimp ST Panel Mount Heavy Duty Power Connectors HAN D 15P F CRIMP ORDER CONTACTS SEP HAN D 15 POS. F INSERT CRIMP Han(R) D 15P+E socket insert, 250Vac PowerConnectorInsert;Female;15 Connector: HAN; female; Han D; PIN:15; 15+PE; size 10A; 250V Han D Female Insert: Han D 15 Position F Insert Crimp Harting Han D 系列 2行 15针插座电源连接器
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	015 09 09-21-015-3101 21 3101	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS	Lead free / RoHS Compliant	欧盟RoHS	Compliant
材料阻燃等级	UL94 HB

电气参数

测试电压	4kV	额定电压	600V
最大额定电流	10A	最小输入电压	250V
连接器类型 - 电压输入	for HAN D terminals

机械参数

尺寸	10A	颜色	Gray
深度	33	高度	22.8
重量	0.03 kg	包装方式	Bulk
方向	直	重量（g）	32.00000
触头类型	Han® D	安装类型	Straight
连接器类型	Insert without Contacts	排数	2
封装形式	size 10A	插入力	Female
壳体材料	Polyamide (PA), Nylon	总长度	56.5
尺寸/外形	10A	端接样式	Crimp
触点数	15	位数	15+Ground
线规或范围 - AWG	26-14	第一连接器安装特征	15+PE

产品信息

类型	Housing	连接器性别	F
系列	HAN-D, HAN-D AV	CAD图纸	3D CAD Model
产品子类型	Inserts	适配器系列	Han D
单元数量	1

环境参数

工作温度

-40°C ~ 125°C
