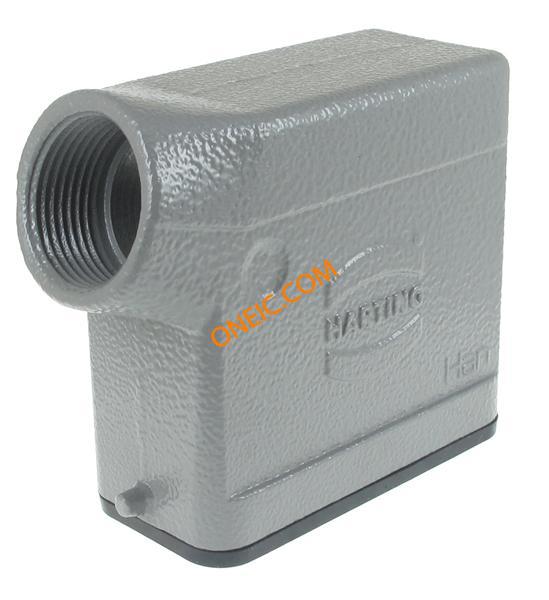

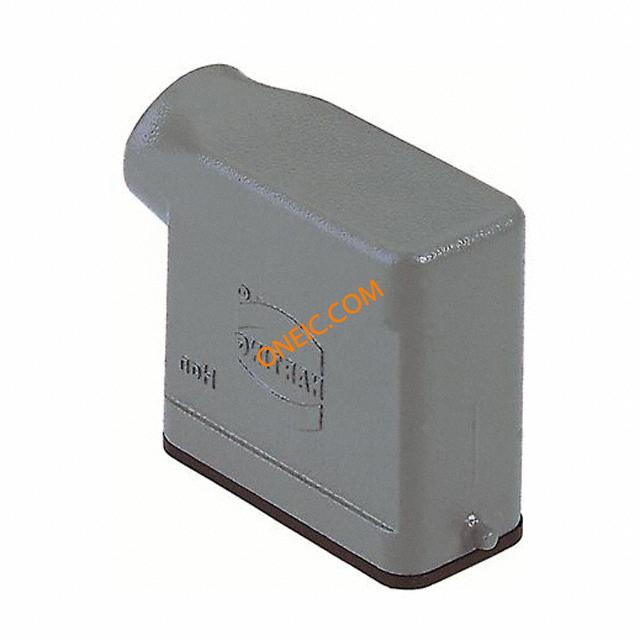

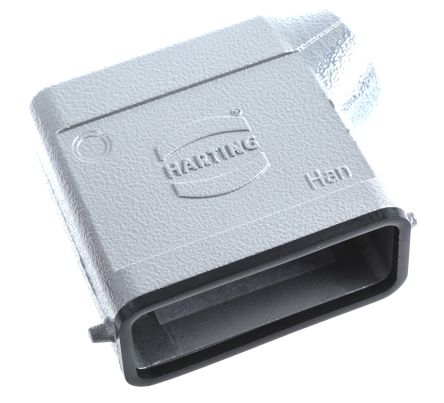

09200101541

点击放大查看

09200101541

制造商
HARTING Technology Group
描述
Connector Accessories Hood Metal Heavy Duty Power Connectors HAN 10A PG16 SIDE METAL HOOD HAN A HOOD SIDE LC 2 PEGS PG 16 Low type side entry hood,PG16 size 10A Han10AHood(SideEntry,SingleLeverPeg)PGThread Enclosure: for Han connectors; Han; size 10A; for cable; angled Han A Hoods: Han A Hood Side Entry LC 2 Pegs PG 16 Harting Han A 系列 侧入 电源连接器
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

零件号别名010 09 09-20-010-1541 1541 20产品类别Heavy Duty Power Connectors
标准包装数量1工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant欧盟RoHSCompliant

电气参数

最大额定电流10 A

机械参数

尺寸10A深度29.5
重量0.09 kg包装方式Bulk
方向angled螺纹尺寸PG16
外壳颜色Gray安装类型on cable
衬套螺纹PG16连接器类型Hood
外壳涂层Powder Coated安装样式for cable
封装形式size 10A插入力Female
锁定特性for latch壳体材料Aluminum, Die Cast
包装数量4尺寸/外形2.469" L x 1.161" W x 2.409" H (62.70mm x 29.50mm x 61.20mm)
端接样式Cable触点数1
供应商器件封装for Han connectors外壳与棱镜材料metal

产品信息

SPG4类型Hood
样式Side Entry系列Han-Modular
产品子类型Hoods锁定位置Side Clip on Base Bottom
附件类型Hood适配器系列Han
单元数量1

环境参数

防护等级IP65 - Dust Tight, Water Resistant工作温度-40°C ~ 125°C
