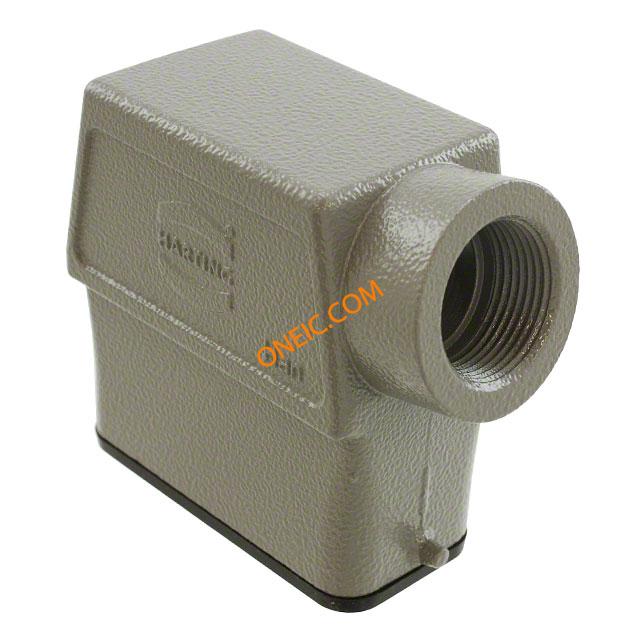

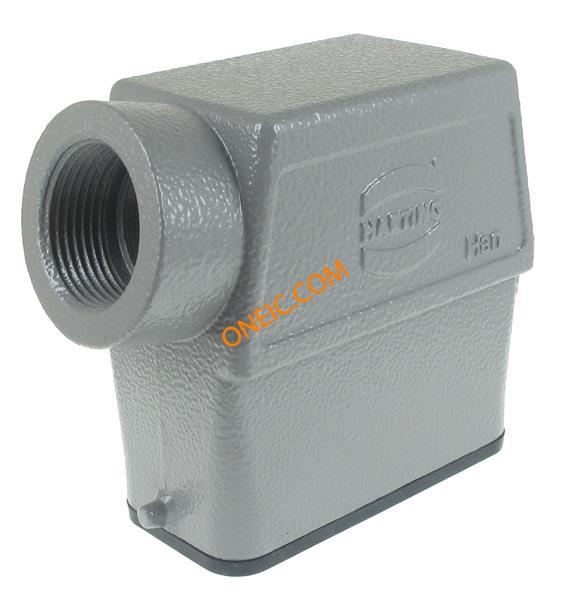

09200100540

制造商	HARTING Technology Group
描述	HAN A HOOD SIDE HC 2 PEGS PG 16 Heavy Duty Power Connectors HAN 10A PG16 SIDE METAL HOOD Han A Hoods: Han A Hood Side Entry HC 2 Pegs PG 16
分类	连接器解决方案重载连接器重载圆形连接器

对参数有疑问？问 AI 助手

商业参数

零件号别名	010 0540 09 09-20-010-0540 20	产品类别	Heavy Duty Power Connectors
标准包装数量	1	工厂包装数量	10

合规参数

RoHS

RoHS Compliant

电气参数

最大额定电流

10 A

机械参数

尺寸	10A	包装方式	Bulk
螺纹尺寸	PG16	外壳颜色	Gray
连接器类型	Hood	外壳涂层	Powder Coated
插入力	Female	壳体材料	Aluminum, Die Cast
尺寸/外形	2.469" L x 1.417" W x 2.646" H (62.70mm x 36.00mm x 67.20mm)	端接样式	Cable
触点数	1

产品信息

类型	CONNECTORS	样式	Side Entry
系列	Han-Modular	产品子类型	Hoods
锁定位置	Side Clip on Base Bottom

环境参数

防护等级

IP65 - Dust Tight, Water Resistant

工作温度

-40°C ~ 125°C
